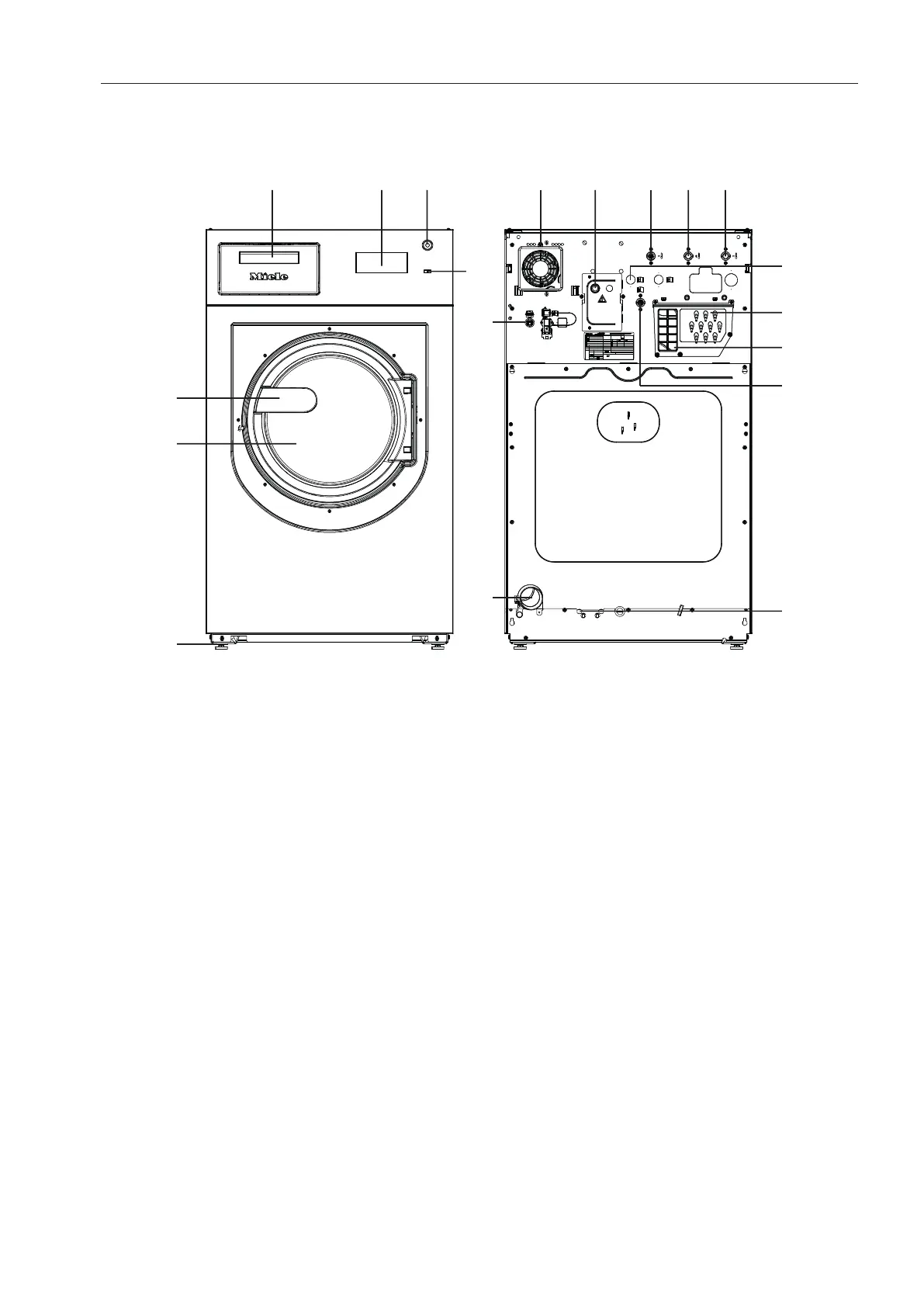

Guide to the machine (with detergent dispensing drawer)
15
Models with detergent dispenser drawer (WEK)
a
Display
see "Control panel"
b
Emergency stop switch
see "Control panel"
c
Door handle
d
Drum door
e
Four adjustable feet
f
Detergent dispenser drawer
g
Electrical connection
h
Cold water connection
i
Hot water connection
j
2x hard water connection
(Optional)
k
Connections for external dispenser
pumps
l
Vapour extraction / free outlet TypeAB
m
Drainage
n
Cold water connection for liquid
dispensing
(Optional)
o
Fan housing
p
Connection option for direct/indirect
steam
(depending on model)
q
button
r
Interface for communicating with
external devices
