5.2 Accessory Compartment Lid
Open the accessory compartment lid and pull it upwards (using a suitable tool,
if necessary) to remove it from the dust compartment lid.
5.2.1 Reassembly (S 2xx Only)
1. Insert the hinges (Figure 5-2, Item 4).
2. Slide and press the lid horizontally (Figure 5-2, Item 1) onto the hinges
until the clips engage, and install the spring.
3. When closing the lid, ensure that the spring arm (Figure 5-2, Item 3) is
located in its guide slot (Figure 5-2, Item 2).

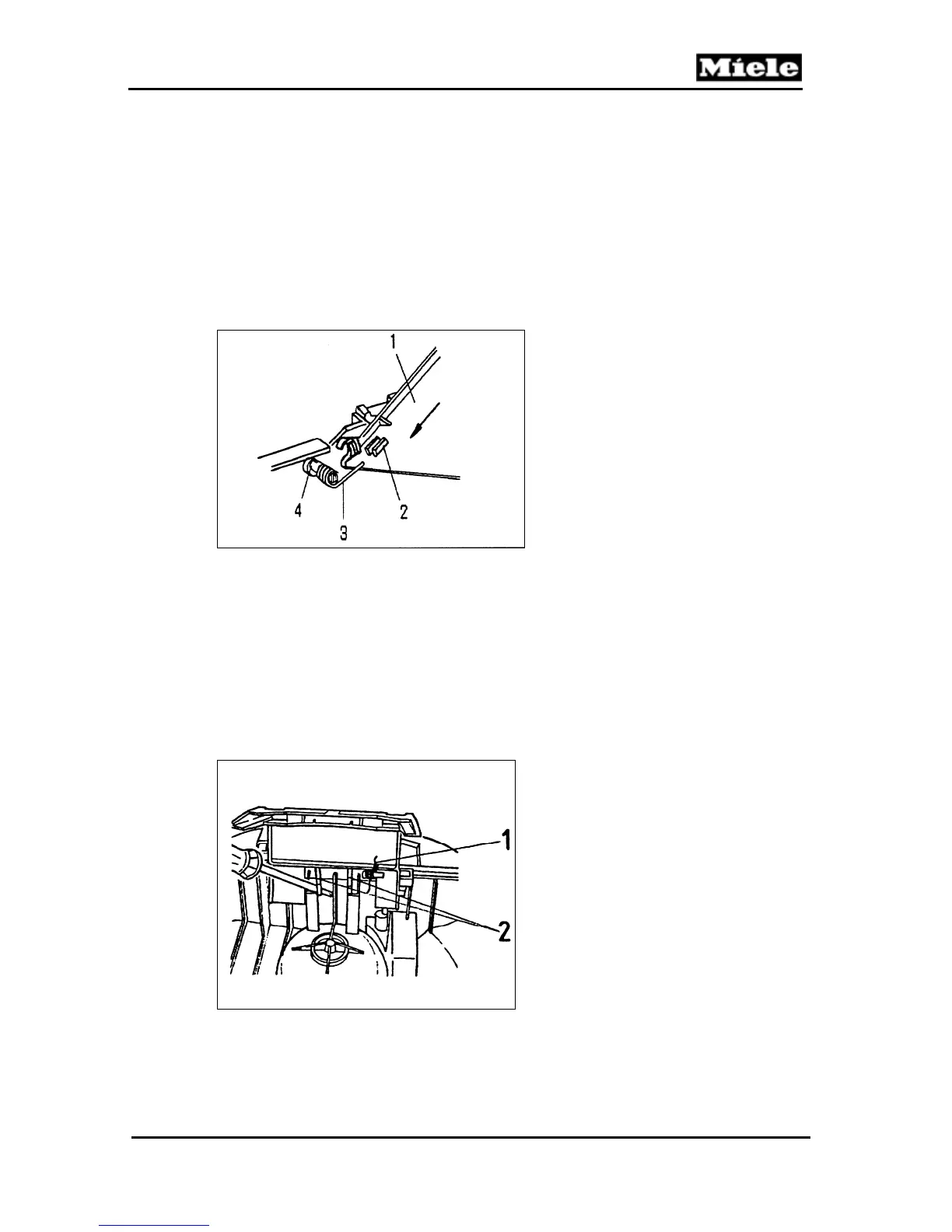

Figure 5-2: Accessory Compartment Lid, Hinges and Springs (S 2xx Shown)
5.3 Dustbag Holder
5.3.1 S 25x
1. Release the holder’s locking tabs (Figure 5-3, Item 2) with a screwdriver,
and then remove it.
2. When re-installing, ensure that the spring (Figure 5-3, Item 1) is correctly
located.
Figure 5-3: Dustbag Holder, S 25x
5.3.2 S 27x
1. Open the dustbag compartment lid and take out the dustbag.
2. Unscrew the holder’s retaining screws (Phillips) (Figure 5-4, Items 2 and 5)
