Technical Information
54
S 2xx, S 3xx & S 4xx Canister Vacuums

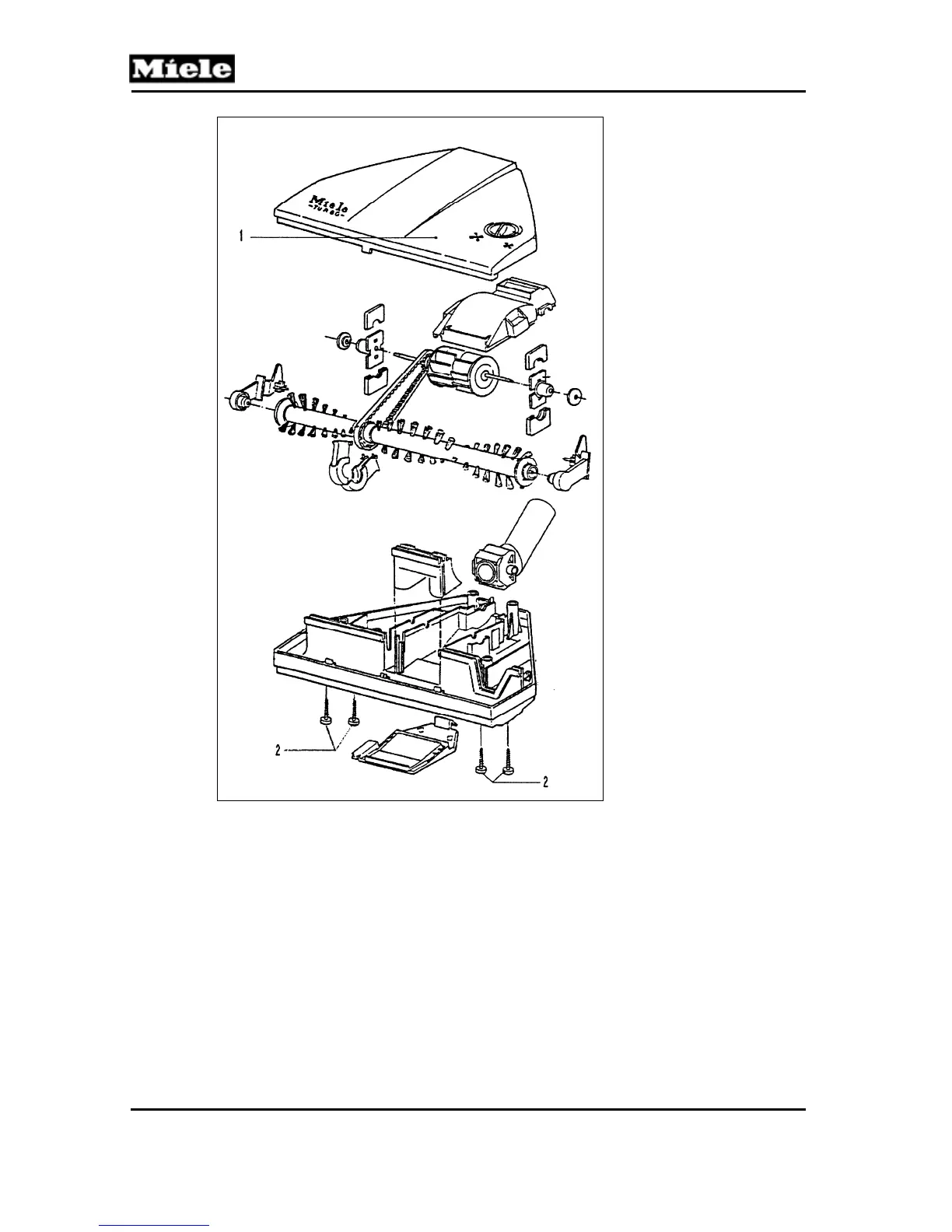

Figure 5-40: S 2xx Turbo Brush
5.24 Buffer/Bumper Strip (S 3xx and S 4xx Only)
5.24.1 S 3xx
1. The bumper strip around the base casing also acts as a seal for the
dustbag and motor compartments.
2. Remove the cap assembly (Section 5.6).
3. Remove the 2 Phillips screws under the carrying handle.
4. Unfasten the bumper strip.
