Technical Information
48
S 2xx, S 3xx & S 4xx Canister Vacuums
Note:
When re-installing the cord in the cord reel, ensure that its end is firmly
pressed down into the strain relief and held securely.
5.18 Motor Assembly
5.18.1 S 25x
1. Remove the cap assembly (Section 5.6).
2. Take out the motor and disconnect its electrical connection.
3. The location of individual motor components is shown in Figure 5-33.
Important:
When re-installing the motor, care must be taken to ensure that the rubber
cushion (Figure 5-33, Item 3) and the motor seal (Figure 5-33, Item 13) are
correctly located.

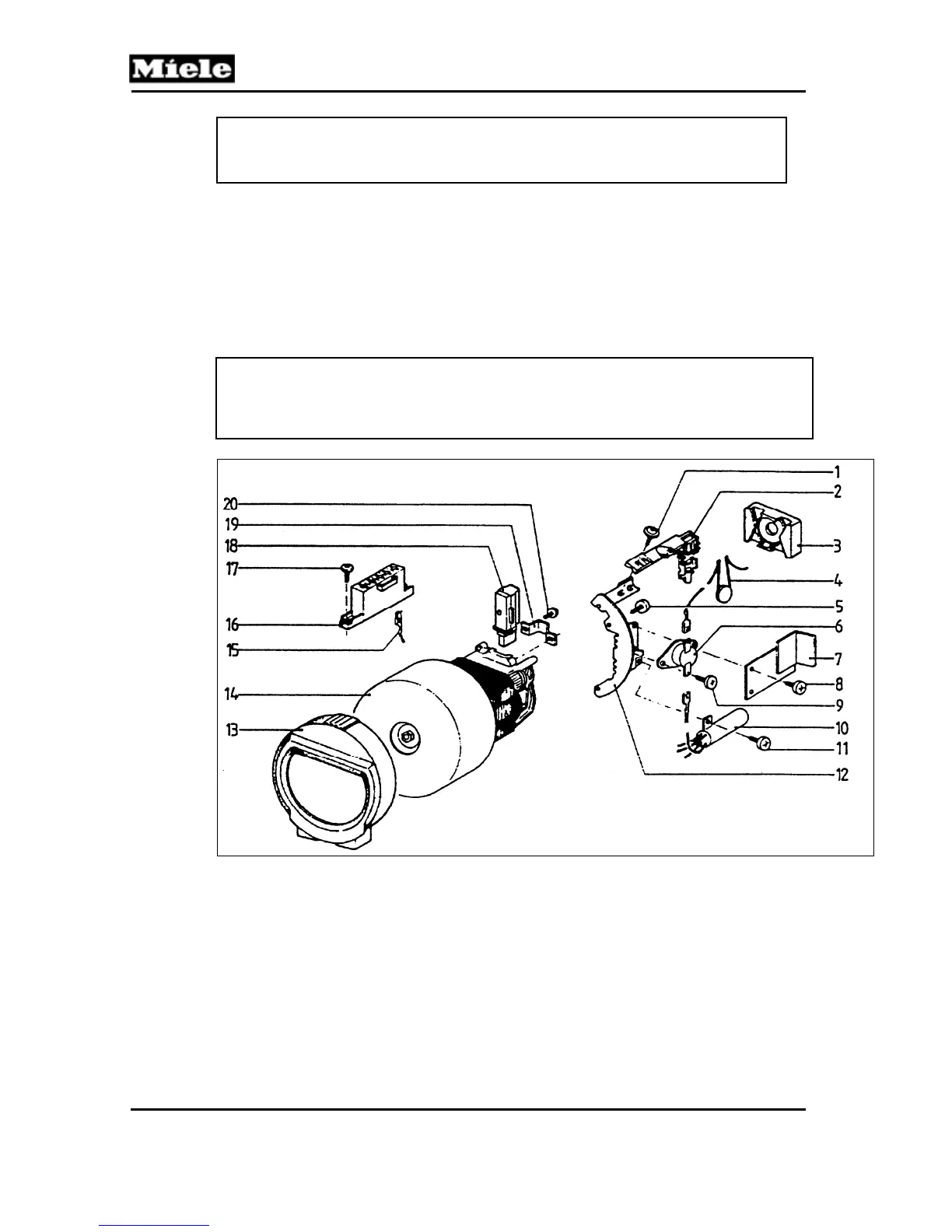

Figure 5-33: S 25x Motor Assembly
1
Retaining screw
11
Retaining screw
2
Holder
12
Bracket
3
Rubber cushion
13
Motor seal
4
NTC resistor
14
Motor
5
Retaining screw
15
Plug
6
Thermostat
16
Plug housing
7
Speed control electronic
17
Retaining screw
8
Retaining screw
18
Motor brush
9
Retaining screw
19
Clamping bracket
10
Interference suppression capacitor
20
Retaining screw
