Technical Information
34
S 2xx, S 3xx & S 4xx Canister Vacuums
5.7 Rear Casing
5.7.1 S 25x
1. Remove the dust compartment lid, Section 5.1.
2. Unscrew the 3 Phillips screws (Figure 5-10, Item 1) to remove the rear
casing (Figure 5-10, Item 3).
3. The fan assembly and cord rewind mechanism are now accessible.
4. The complete foot switch assembly can be removed by unscrewing its
retaining screws (Figure 5-10, Item 2).

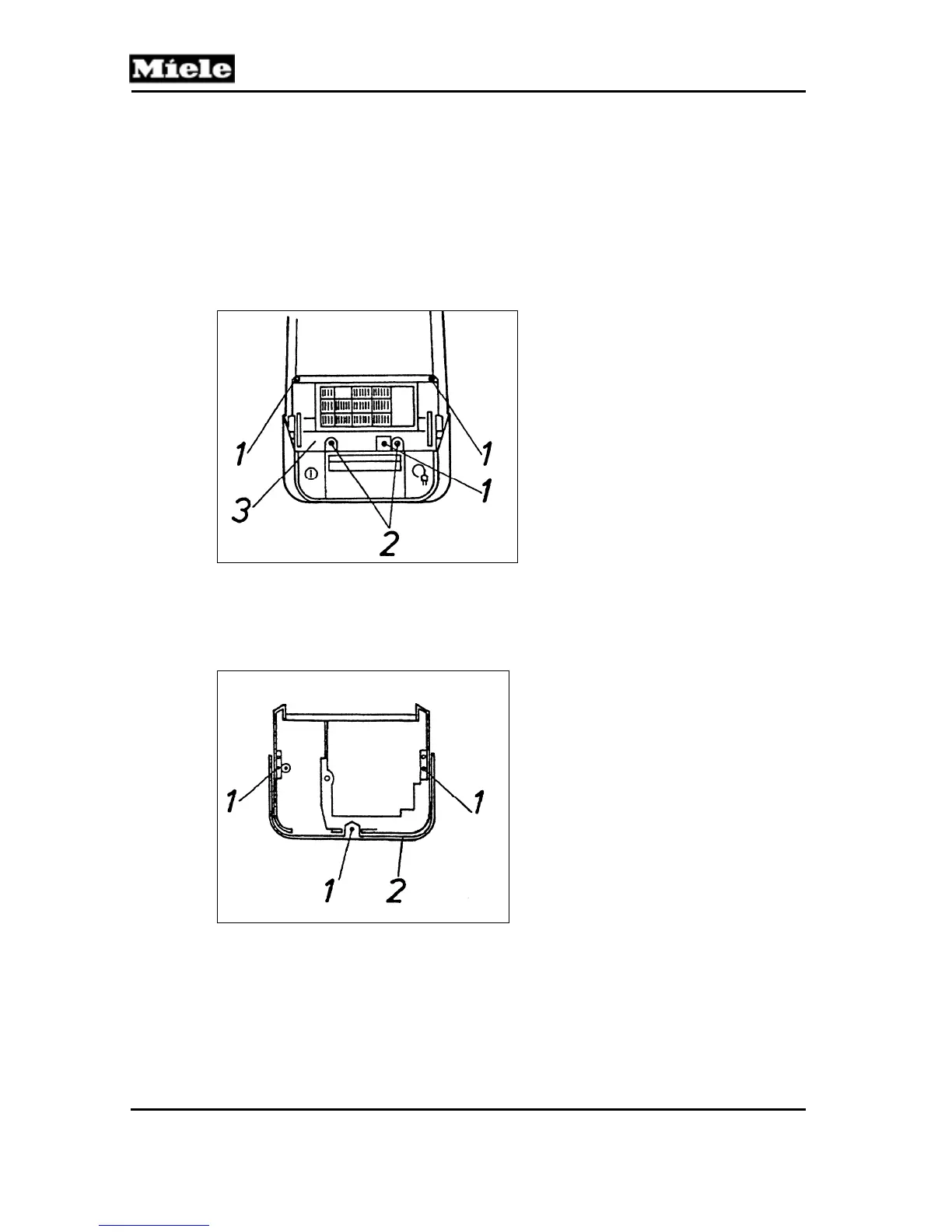

Figure 5-10: Rear Casing, S 25x
5.7.2 S 27x
Unscrew the screws (Figure 5-11, Item 1) and remove the rear casing (Figure
5-11, Item 2).
Figure 5-11: Rear Casing, S 27x
5.7.3 S 3xx
1. Remove the dustbag compartment lid, Section 5.1.
2. Remove the filter insert.
3. Remove the cap assembly, Section 5.6.
4. Remove the 5 Phillips screws securing the rear casing (Figure 5-12).
5. Remove the rear casing upwards.
