Installation and connection
70

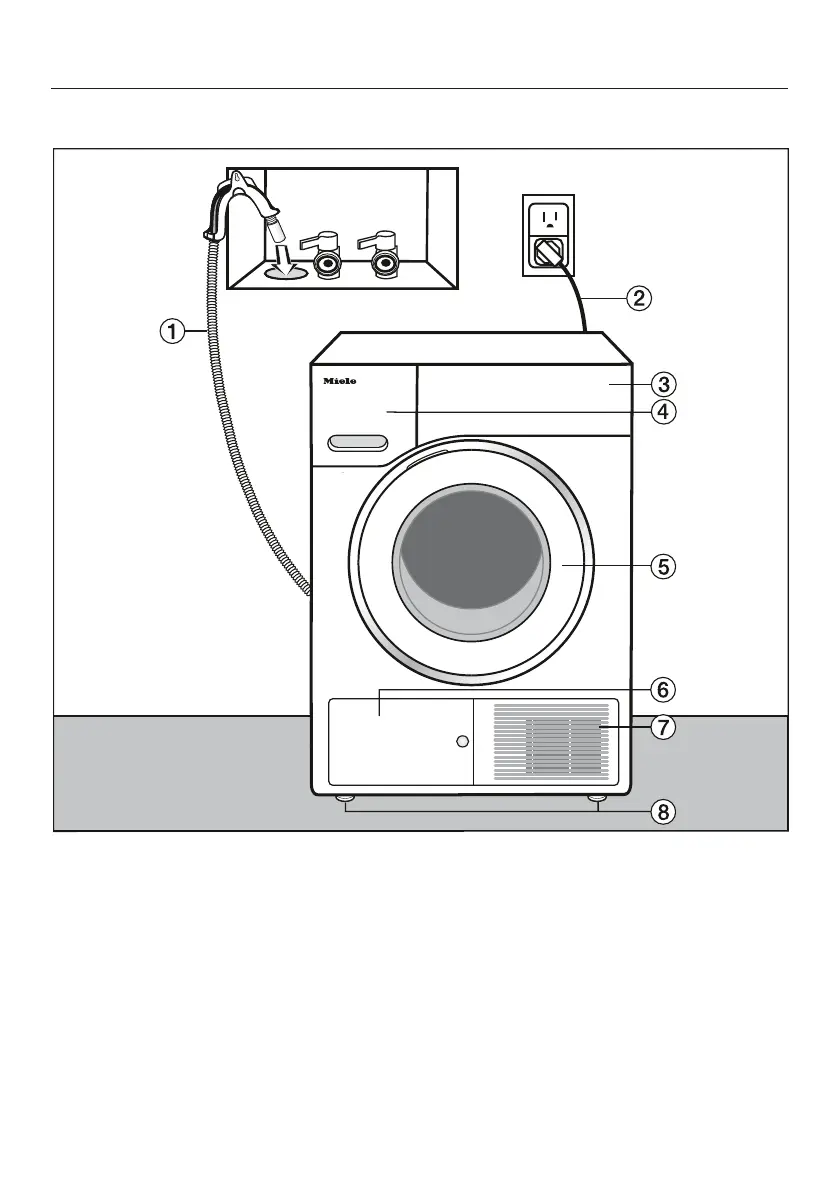

Front view
a
Drain hose for condensed water
b
Power cord
– Observe the section entitled
"Electrical connection".
c
Control panel
d
Condensed water container
– empty after every drying cycle
e
Door
– do not open during drying
f
Access panel to the heat exchanger
and plinth filter
– do not open during drying
g
Cool air intake grille
– do not obstruct with a laundry
basket or other objects
h
four height-adjustable screw feet
