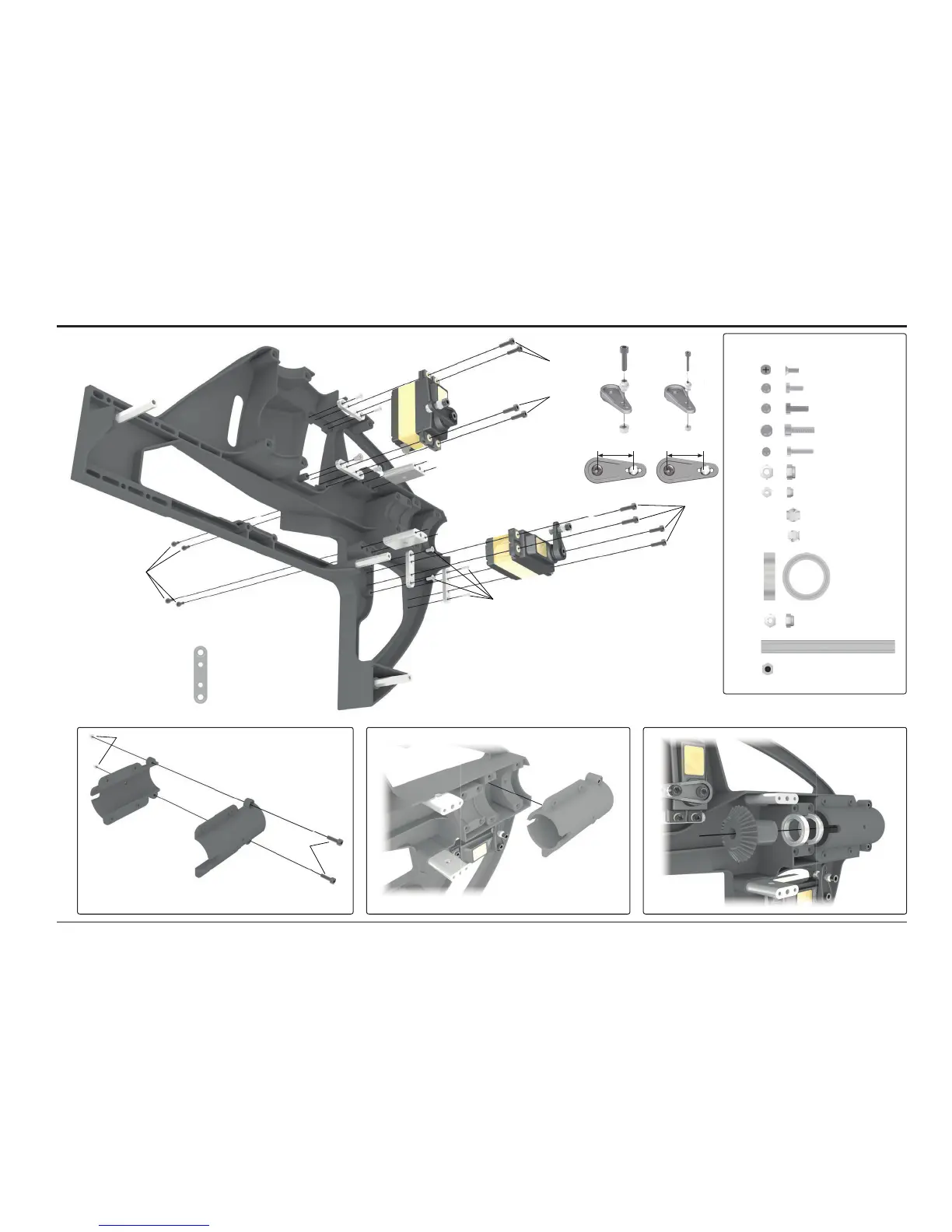

Mikado LOGO 700 - 1 Chassis Assembly; Chassis Frame Assembly - Step 1

1 2 3
Servo with mounting sleeve (5 mm).
In case the mounting ears are taller,
please use longer screws.
Select the corresponding mounting
plate, depending on your servo (10
or 11 mm distance between holes).
Take note of the markings on the
tail boom holders (left and right).
Bag 1+3
Manual LOGO 700 - ©Mikado Model Helicopters GmbH -
Page 3
1 Chassis
M2x10
M3x12
M3 Stop
M2 Stop
M2,5x8
M2,5x8
M2,5x6
M2,5x6
M2,5x8
M2,5 Stop
M2,5x8
4x
8x
10x
M2,5x6
M2,5x6
M2,5x8
1x
M3x12
1x
M2x10
1x
1x
M3
M2
Ø6
Ø4,8
15x21x5
1x
1x
2x
17 mm
17 mm
2x
3x
M2,5
5,5x59
