Mikado LOGO 700 - 4 Motor Installation; Motor and Pinion Mounting; Pinion-Gear Mesh Adjustment; Motor Mounting Steps 2-4

1
2
3
4
Bag 6

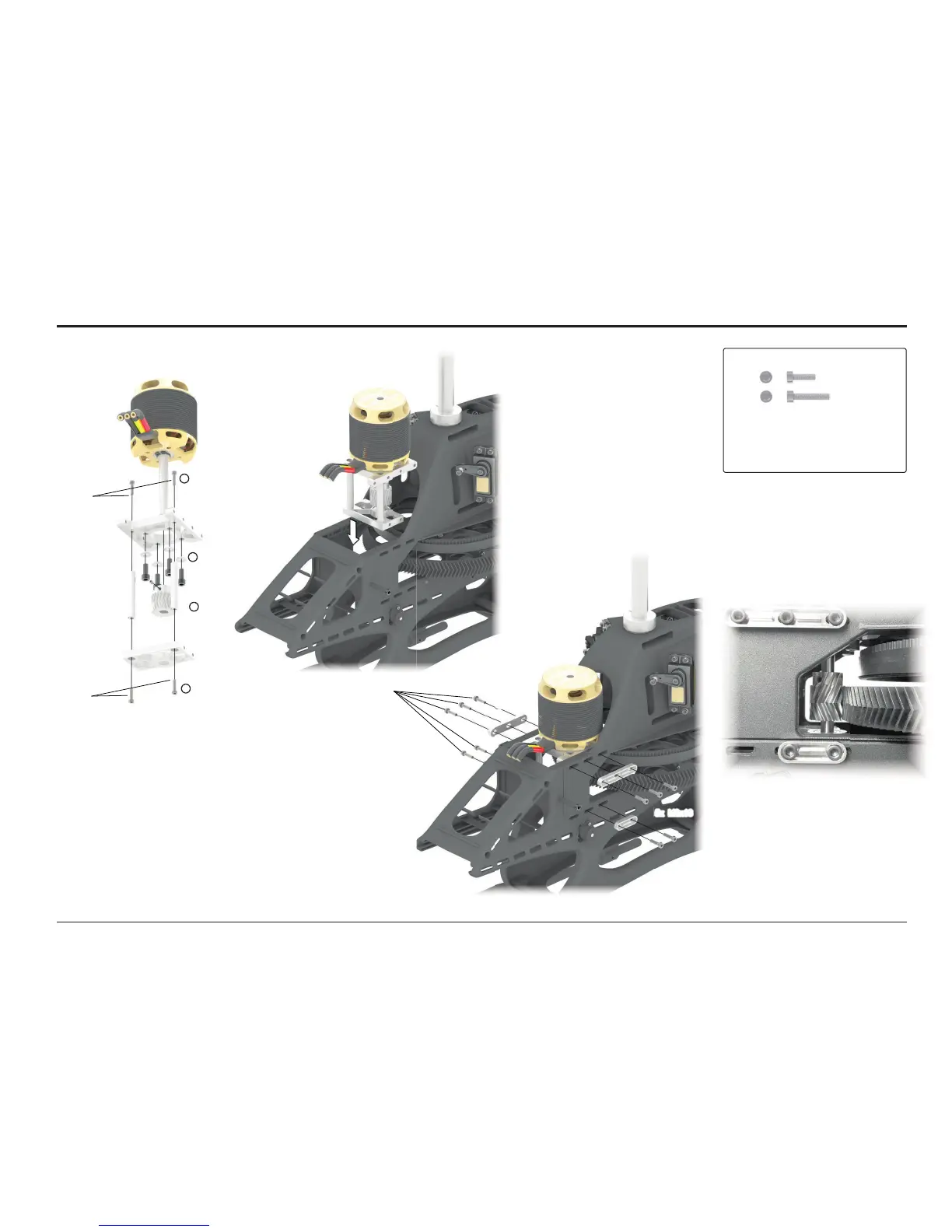

Mounting the pinion:
1) position the pinion on the motor shaft so the grub screw
sits in the fl at spot on the motor shaft.
2) Push motor and pinion against the main gear. The herring
bone gear helps with the proper alignment of pinion and
main gear.
3) There must be next to no backlash between main gear
and pinion. Check the gear mesh after the fi rst couple of
fl ights.
Manual LOGO 700 - ©Mikado Model Helicopters GmbH -
Page 9
4 Motor Installation
M3x10
M3x10
M4x20 (x4)
5x M3x16
5x M3x16
4x M3x10
10x M3x16
a
b
c
d
