Mikra M15 User Manual

18
Power Supply & Hardware
Power supply: a. 2 PIN connector
b. DC 18 ~ 30V 50mA
Battery: C type battery×1, the battery life: 2.5 year(24hr)
Output: a. 8 pin connector
b. Relay × 4: Forward Reverse Low speed Positioning.
Note: Positioning only works inside the tolerance and on position mode.
Manual mode: Do not work.
c. NO
d. AC240V/ 5A AC120V/ 10A DC24V/ 10A
Input: a. 5 Pin connector
b. DC 24V
c. NPN or PNP
d. 10mA
 COM
 Start
 Stop
 Repeat
 No use
Sensor：9 pin connector

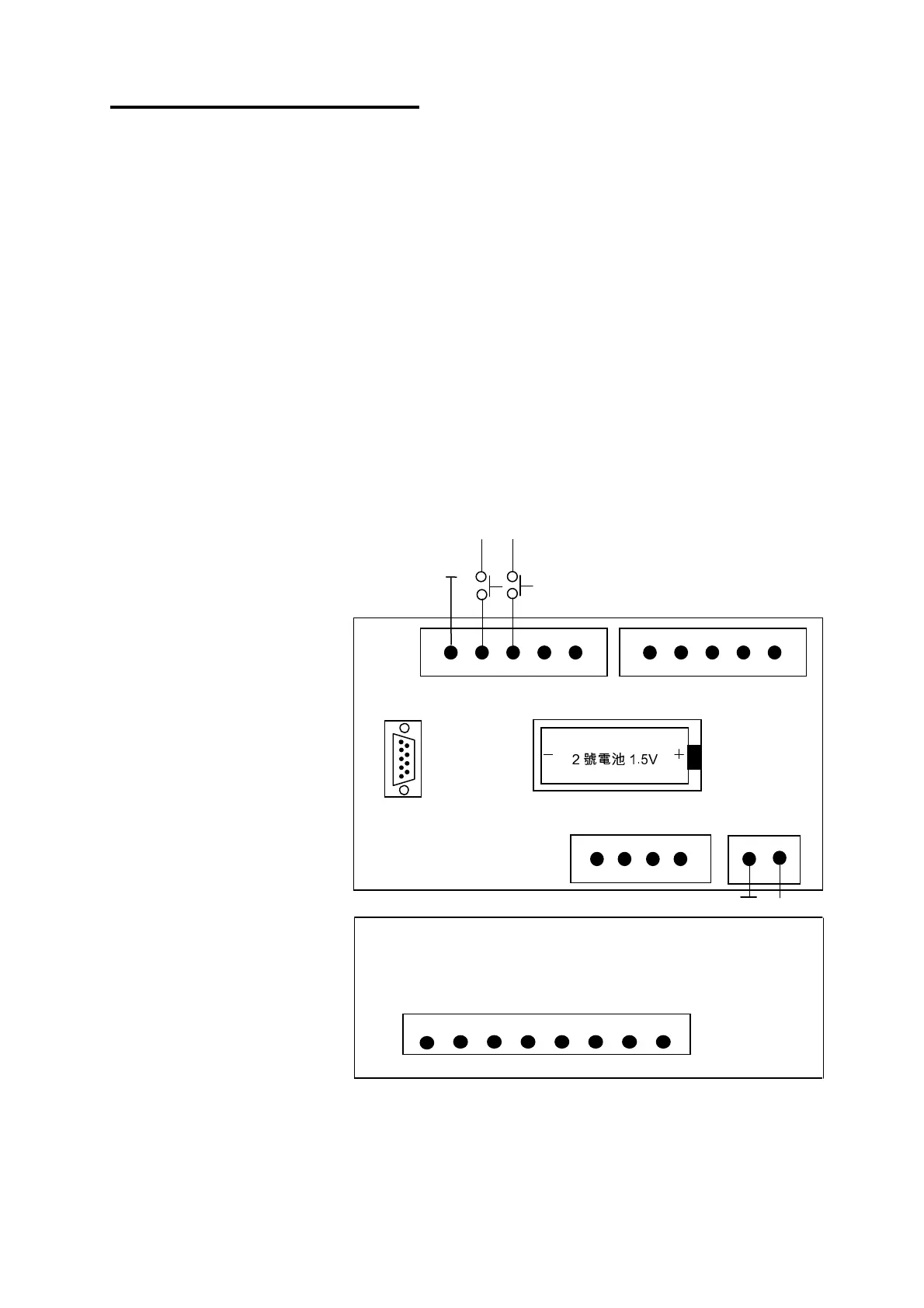

Back panel(face squarely)
Forward Reverse Low Speed Positioning
▓ ▓ ▓ ▓
Output(8Pin)
C1 NO C2 NO C3 NO C4 NO
RS485(4 Pin)
Power (2Pin)
OV
+24V
STOP
No use
Input (5Pin)
OV
START
24V
24V
0V
3
4
2
1
2 號電池 1.5V
