OM-273476 Page 19

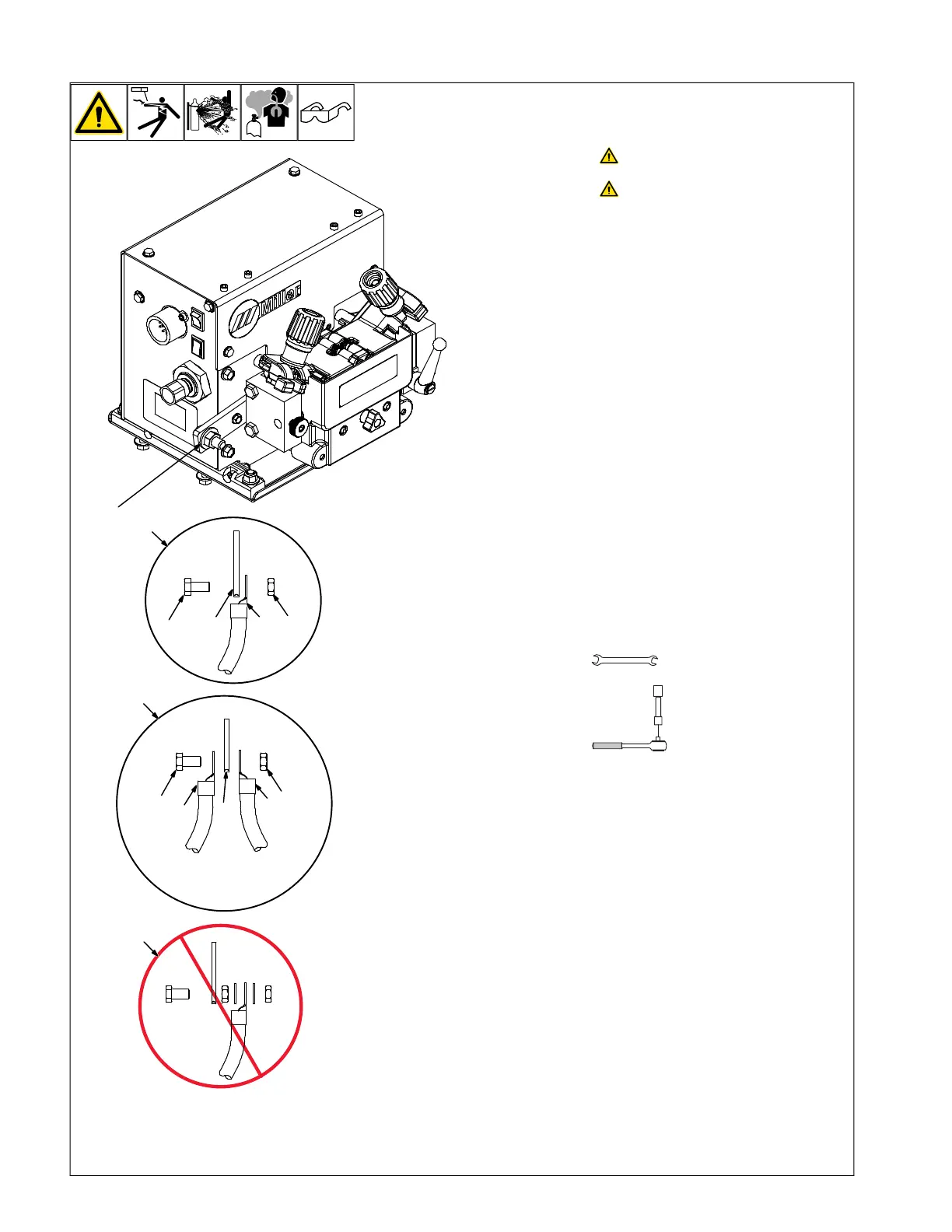

5-3. Connecting Weld Output Cable

678

2/0 and larger double ca-

bles

Ref: 301207−014 / Ref.

259120-C

Turn off power before connecting

control cables.

Failure to properly connect weld

cables may cause excessive heat

and start a fire, or damage your

machine.

Ensure all connections are tight.

Terminal Connection

Do not place anything between weld cable

terminal and output terminal. Make sure that

the surfaces of the weld cable terminal and

output terminal are clean.

1 Weld Cable Terminal

2 Correct Weld Cable Connection For Sin-

gle Cable

3 Correct Weld Cable Connection for 2/0

And Larger Double Cables

4 Incorrect Weld Cable Connection

5 Weld Output Terminal Bolt

6 Weld Output Terminal Nut

7 Weld Cable Terminal

8 Output Terminal

Remove supplied nut and bolt from weld out-

put terminal. Insert bolt through hole in weld

cable terminal and hole in weld output termi-

nal. Screw nut onto bolt until weld cable ter-

minal is tight against output terminal. Torque

to 27-33 ft lb (36.6-45 N·m).

OM-222 Page 1

allen_wrench

NGO’s

tools/

flathead philips head wrench

pliers

knife

heavy-duty workclamp light-duty workclamp wirecutter frontcutter

allen_set

needlenose

steelbrush nutdriver

chippinghammer

solderiron

stripcrimp

drill

torque wrench

socket wrench

hammer awl file

crimper

paintbrush

feelergauge flashlight ruler

toothbrush

greasegun

qtip (swab)

vicegrip

handream

punch

filterwrench

strapwrench

airgun

solvent pinextractor eprompuller pipewrench

torque screwdriver

crescent wrench

9/16 in.
