OM-243 347 Page 14

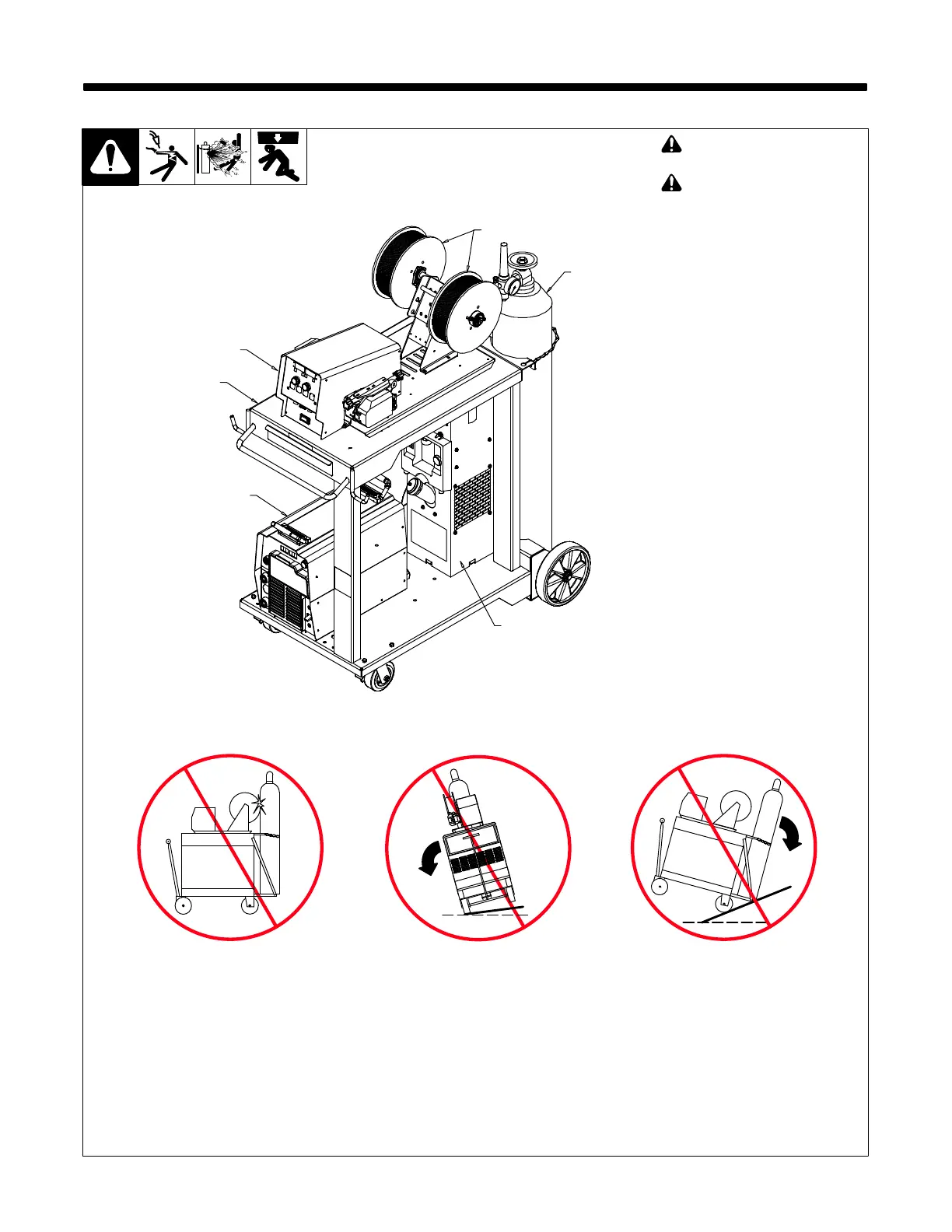

SECTION 5 − INSTALLATION
1
2
3
4
5
6
Ref. 803 048 / 245 347-A
! Do not put feeder where
welding wire hits cylinder.
! Do not move or operate
equipment where it could
tip.
1 Wire Feeder
2 Wire Spool/Reels
3 Gas Cylinder w/Hose And
Regulator (Customer
Supplied)
. Shielding gas pressure not to
exceed 100 psi (689 kPa).
4 Welding Power Source
5 Running Gear
6 Water Cooling System
5-1. Site Selection
