SECTION 5 – OPERATING INSTRUCTIONS
5-1. Helmet Controls
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
1
2
3
4
The auto-darkening lens turns on (darkens)
automatically when welding begins and
turns off when welding stops.

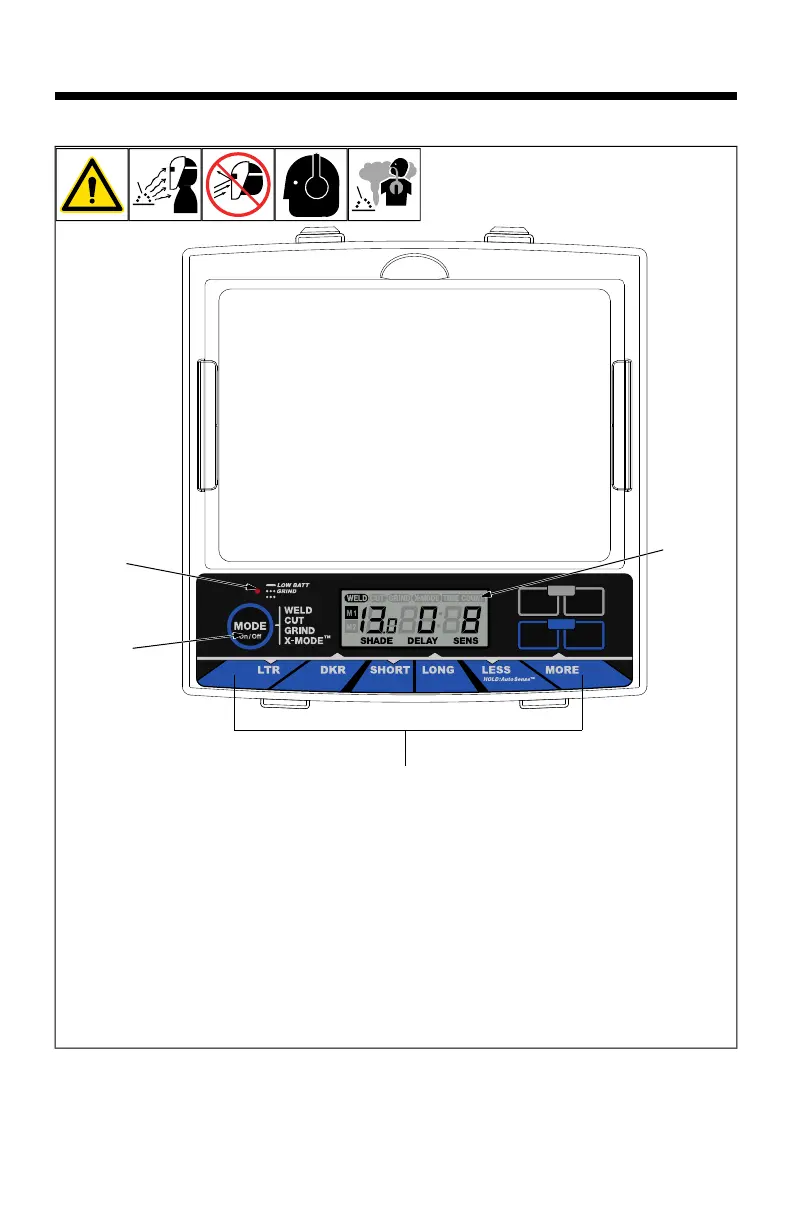

1 Mode Control Button (Section 5-2)
2 Low Battery / Grind Mode / Memory
Function Light (Section 5-2)
3 Display Screen
4 Lens Adjustment Buttons (See Sections
5-4 Through 5-6)
F
Use adjustment buttons to change
shade, delay, and sensitivity settings
when lens is in Mode function. Use ad-
justment buttons to change arc time,
clock, timer, alarm, language, and help
settings when lens is in Info function.
F
The lens assembly saves the shade,
sensitivity, and delay settings.

Miller Digital Infinity Series Specifications

General

Viewing Area	13.4 sq. in.
Delay Control	0.1 - 1.0 sec
Sensitivity Control	Adjustable
Lens Shade	5-13
Sensors	4
Power Source	Solar and battery
Switching Speed	1/20, 000 sec
Operating Temperature	14 to 131°F (-10 to 55°C)
Standards	ANSI Z87.1, CSA
Weight	23 oz.
