5-7. Typical Lens Adjustment Procedure
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
F
Lens assembly displays
prior settings when
turned on. Retained set-
tings are not shown in
example.
F
In the Grind mode the
lens is a fixed shade No.
3. No lens adjustments
are possible.

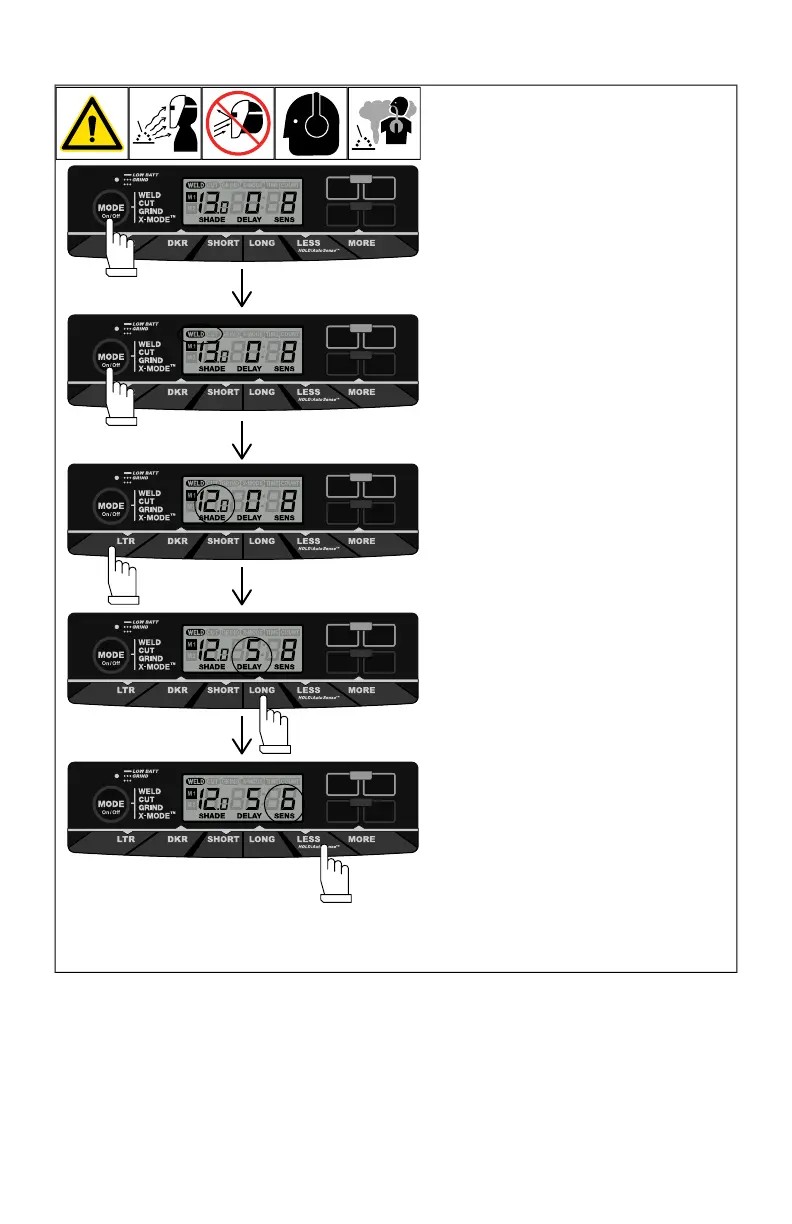

Adjusting Lens Assembly
l Turn lens on. Display
screen appears.
l Select mode (Weld, Cut,
Grind, X-Mode).
l Select shade by pressing
LTR and DKR buttons.
l Select Delay by pressing
Short and Long buttons.
l Select Sensitivity by
pressing Less and More
Buttons.
l Begin work.

Miller Digital Infinity Series Specifications

General

Viewing Area	13.4 sq. in.
Delay Control	0.1 - 1.0 sec
Sensitivity Control	Adjustable
Lens Shade	5-13
Sensors	4
Power Source	Solar and battery
Switching Speed	1/20, 000 sec
Operating Temperature	14 to 131°F (-10 to 55°C)
Standards	ANSI Z87.1, CSA
Weight	23 oz.
