OM-289711 Page 16
5-5. Lens Delay Control
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
2
1

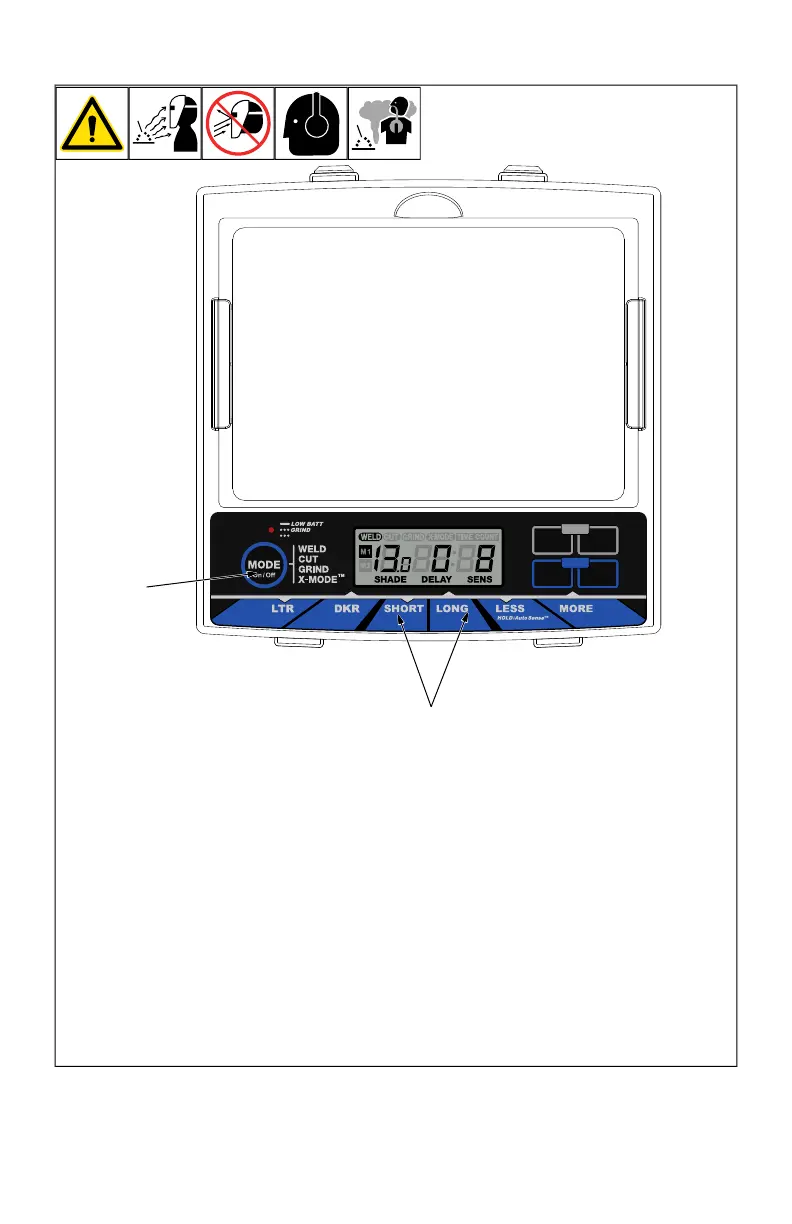

1 Lens Delay Adjustment Buttons
2 Mode Control Button
Use the Lens Delay Short and Long buttons
to adjust the time for the lens to switch to the
clear state after welding or cutting.
The delay is particularly useful in eliminating
bright after-rays present in higher amperage
applications where the molten puddle re-
mains bright momentarily after welding. Use
the Lens Delay Control buttons to adjust de-
lay from 0 to 10 (0.1 to 1.0 second).
The delay ranges for each mode are as
follows:
Weld, Cut, And X-Modes - No. 0–No. 10
Grind Mode - No delay adjustment
F
There is no lens delay adjustment in
the Grind mode.
Lens Delay Adjustment Procedure
l Press Mode button to turn helmet On.
l Press Mode button to select desired
function: Weld, Cut, or X-Mode.
l Use Short and Long adjustment buttons
to select desired delay.
l Begin welding or continue with other
lens adjustments.
To Next Page
