5-3. Mode Control
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
(R)
MEMO
(
B
)
ARC
MEMO
TIME COUNT
1 2
1
2
3
4
5

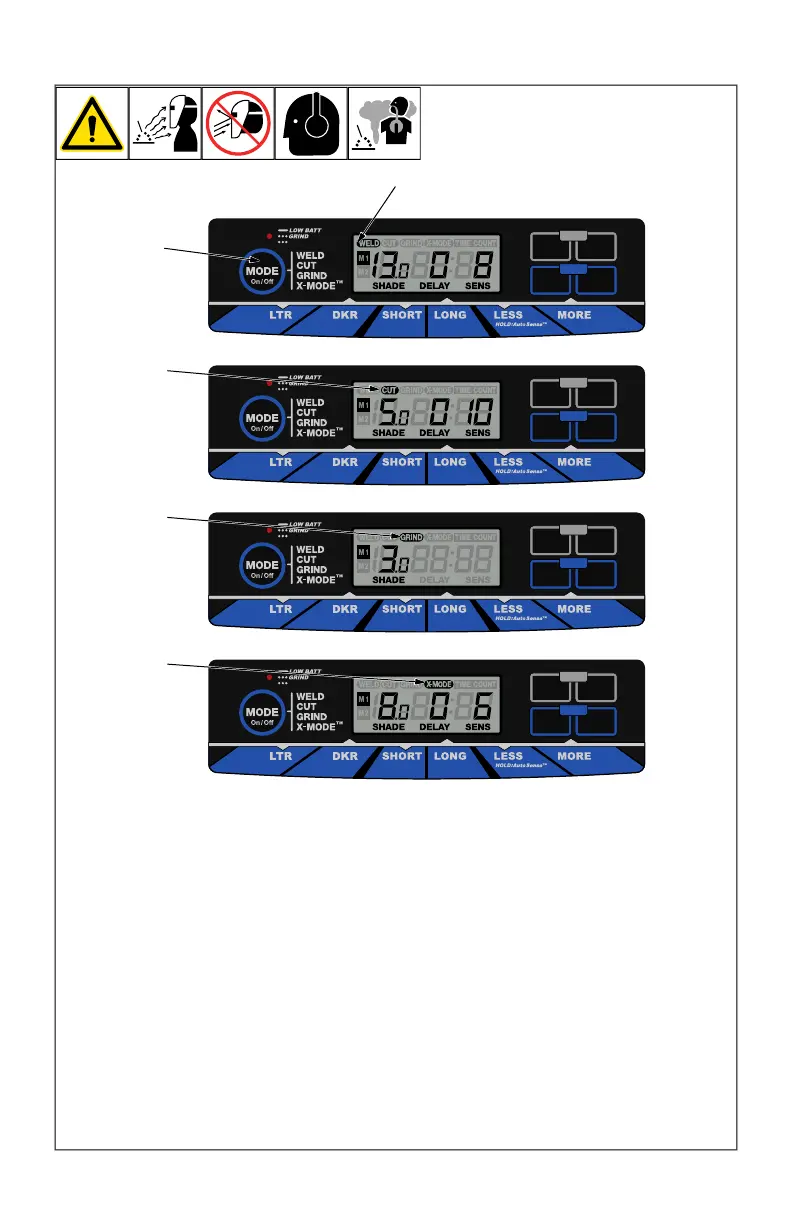

1 Mode Control Button
Press Mode button to select the mode ap-
propriate for the work activity.
2 Weld Mode
Used for most welding applications. In this
mode the lens turns on when it optically
senses a welding arc. Adjust shade, sensi-
tivity, and delay settings as needed.
3 Cut Mode
Used for cutting applications. In this mode
the lens turns on when it optically senses a
cutting arc. Adjust shade, sensitivity, and de-
lay settings as needed.
4 Grind Mode
Used for metal grinding applications. In this
mode the lens is fixed at shade No. 3. No
lens adjustments are possible.
5 X-Mode
Used for outdoor or low current welding ap-
plications. In this mode the lens turns on
when it senses a welding arc. Adjust shade,
sensitivity, and delay settings as needed.
F
Nearby welding may affect helmet op-
eration when lens is in X-Mode. Stay
at least 12 ft (3.7 m) away from other
welding activity.

Miller Digital Infinity Series Specifications

General

Viewing Area	13.4 sq. in.
Delay Control	0.1 - 1.0 sec
Sensitivity Control	Adjustable
Lens Shade	5-13
Sensors	4
Power Source	Solar and battery
Switching Speed	1/20, 000 sec
Operating Temperature	14 to 131°F (-10 to 55°C)
Standards	ANSI Z87.1, CSA
Weight	23 oz.
