. A complete Parts List is available at www.MillerWelds.com
OM-253086 Page 46
HF START
Schedule 1
Schedule 2
LIFT ARC

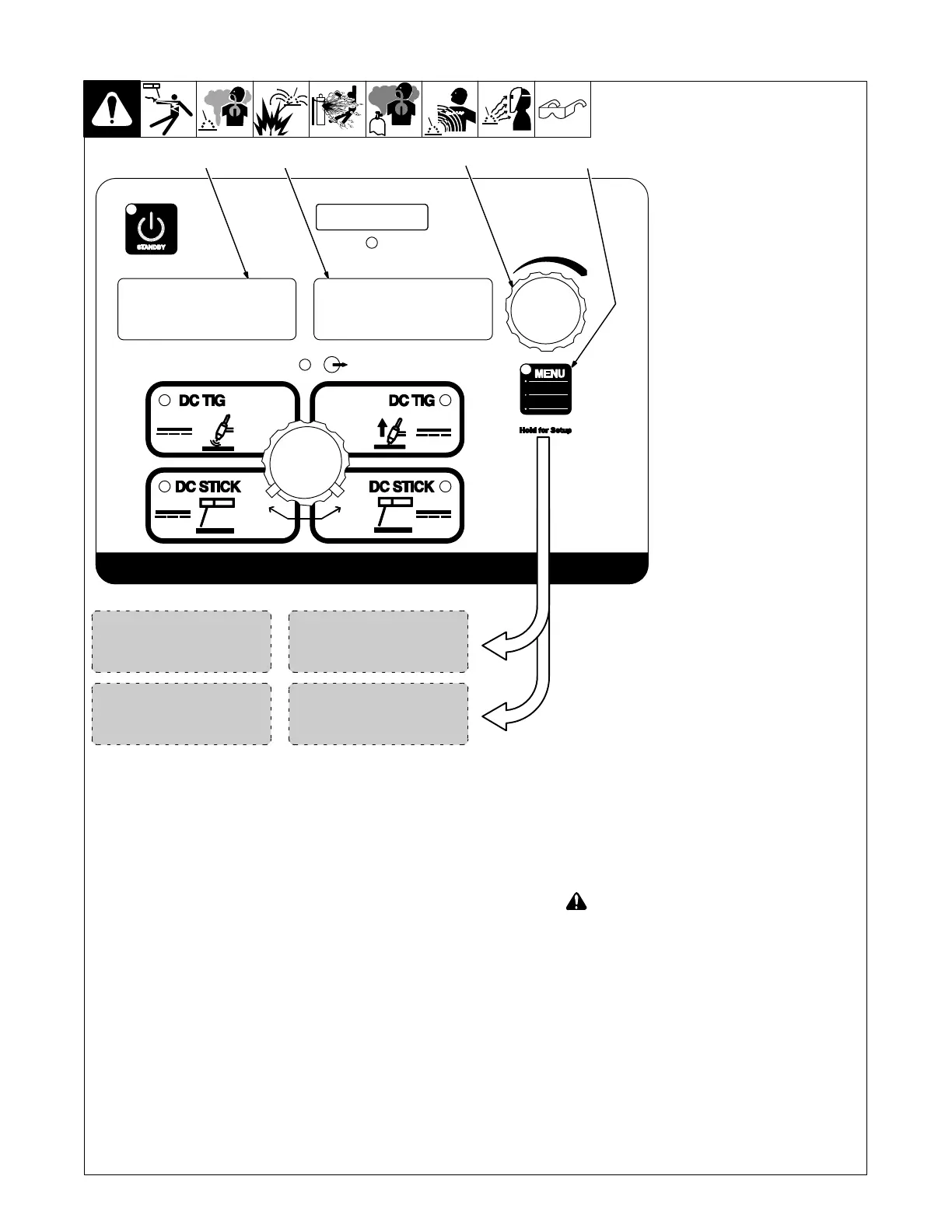

8-5. Accessing User Setup Menu: DC Stick
1 Menu Button
Press and hold Menu button for
approximately 2 seconds to access
machine configuration menus. Use
Menu button to cycle through
parameters that can be set.
2 Parameter Display
3 Setting Display
4 Encoder
Rotate Encoder to adjust parameter
setting.
. To exit menu, press and hold
Menu button until Menu Off is
displayed.
1
ONOUT
2
3
4
ON
HOTS
Trigger Mode Selection:
[RMT] [STD]
Typical setting for a remote foot or hand control.
RMT STD requires a maintained contact closure to
enable weld output. Amperage can be controlled
with a remote potentiometer, or it can be set at the
control panel.
[OUT] [ON]
! Weld output terminals are energized at all
times when displays read [OUT] [ON].
No remote control or trigger required. Amperage can
be controlled at the control panel or with a remote po-
tentiometer
. Blue output on LED illuminates to indic-
ate output is on.
Arc Starting Mode Selection:
MENUUSER
[HOTS] [ON]
Provides additional amperage while striking the
electrode to prevent the electrode from sticking.
[HOTS] [OFF]
No additional starting amperage to assist in starting the
electrode.
Or
247218-C
To Next Page
