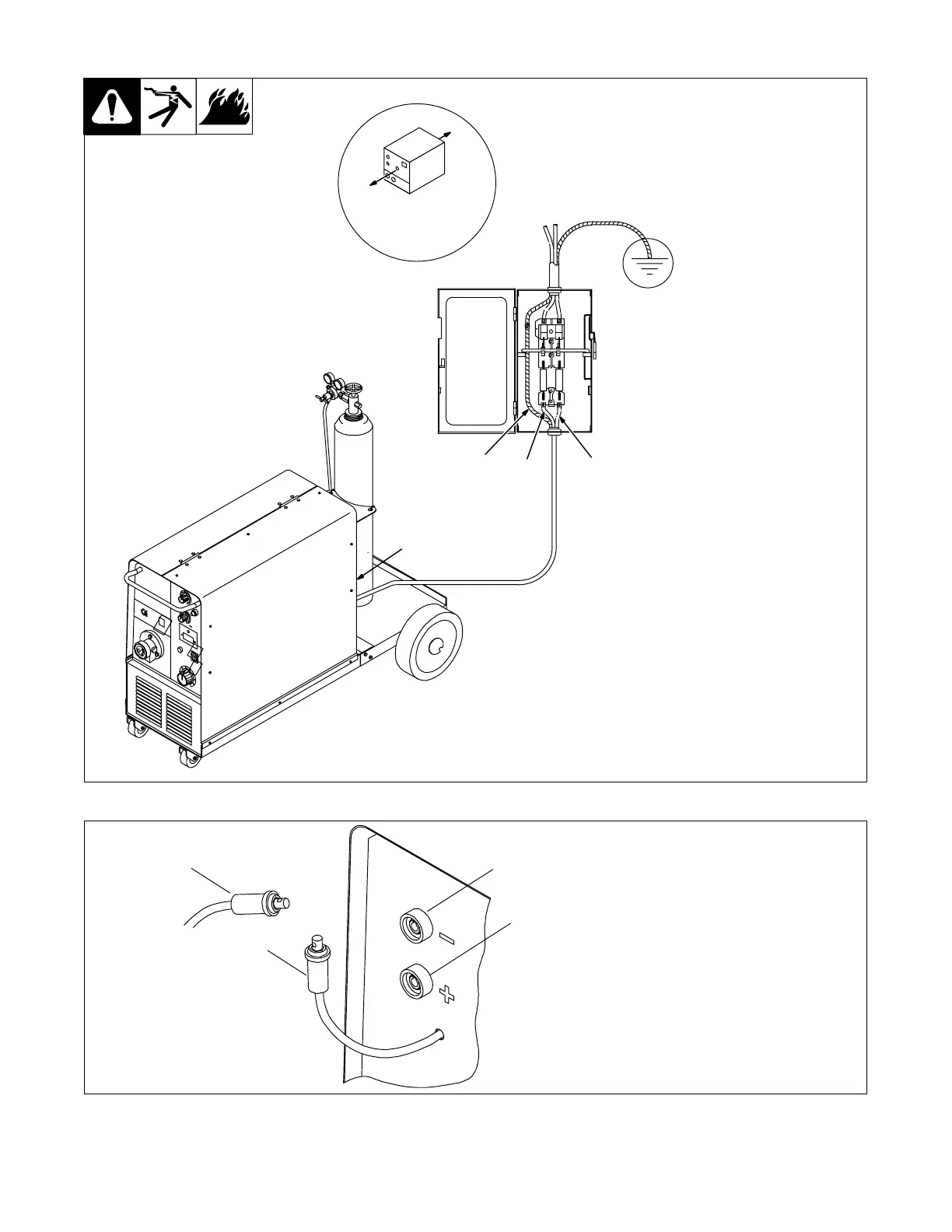

2-9. Selecting a Location and Connecting Input Power
Have only qualified persons make
this installation.
1 Rating Label
Supply correct input power.
ST-801 721
18 in (457 mm)
for airflow
GND/PE
Connect First
L1
L2
GND/PE
1
I
0
S
2-10. Installing Work Clamp
1 Wire Feeder Connection
2 Work Connect
3 Negative Power Source
Terminal
4 Positive Power Source
Terminal
2
1
3
4
