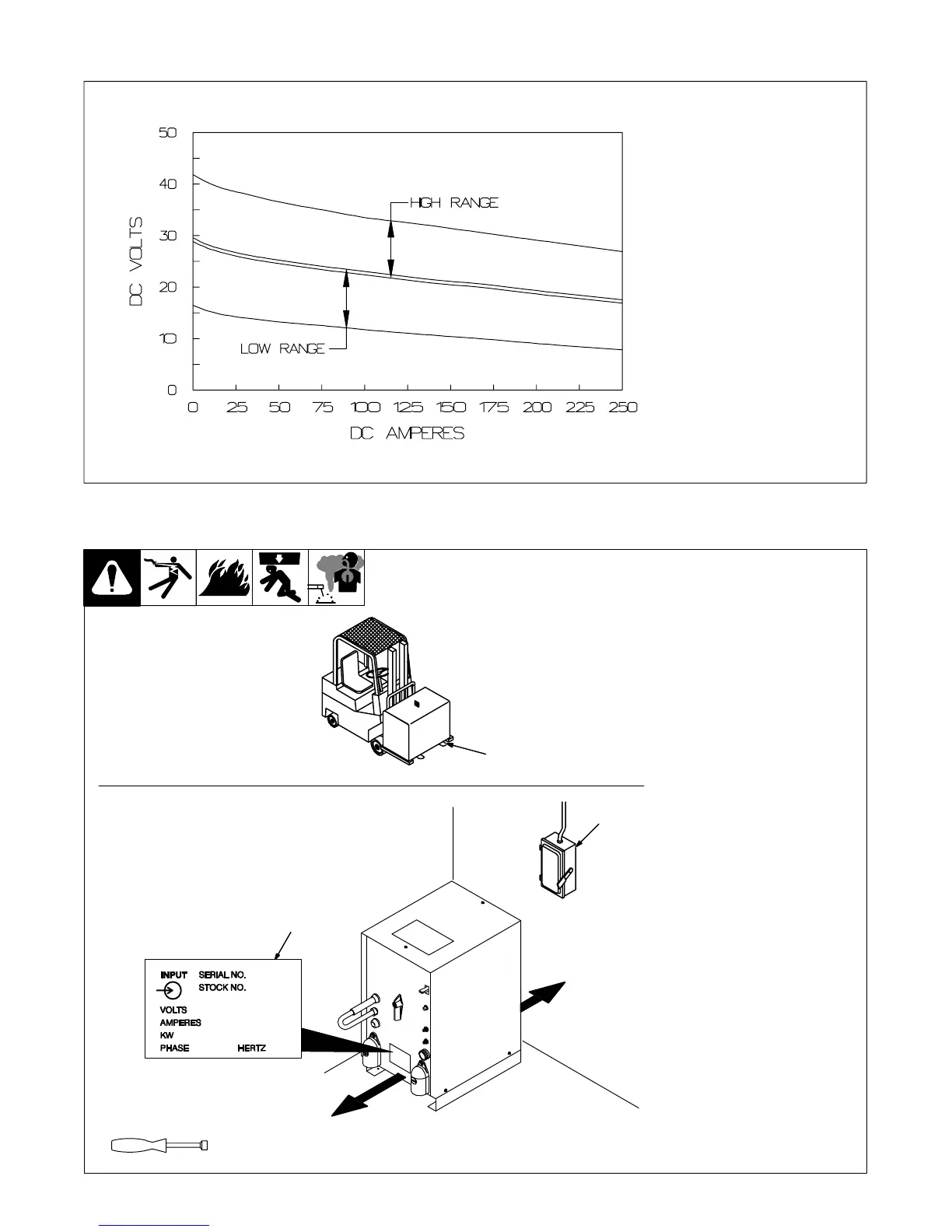

2-3. Volt-Ampere Curves
va_curve1 4/95 − ST-049 424-E
Volt-ampere curves show mini-
mum and maximum voltage and
amperage output capabilities of
unit. Curves of other settings fall be-
tween curves shown.
2-4. Installing Handles And Selecting A Location
1 Lifting Forks
Use lifting handles or lifting forks to
move unit.
If using lifting forks, extend forks
beyond opposite side of unit.
2 Rating Label
Use rating label to determine input
power needs.
3 Line Disconnect Device
Locate unit near correct input pow-
er supply.
Y Special installation may be
required where gasoline or
volatile liquids are present −
see NEC Article 511 or CEC
Section 20.
1
Movement
Location And Airflow
ST-800 402 / Ref. ST-121 471-F
2
18 in
3
(460 mm)
18 in
(460 mm)
Tools Needed:
3/8 in
