Miller Regency 250 - Remote 14 Receptacle Information; Electrical Service Guide

OM-293 Page 12

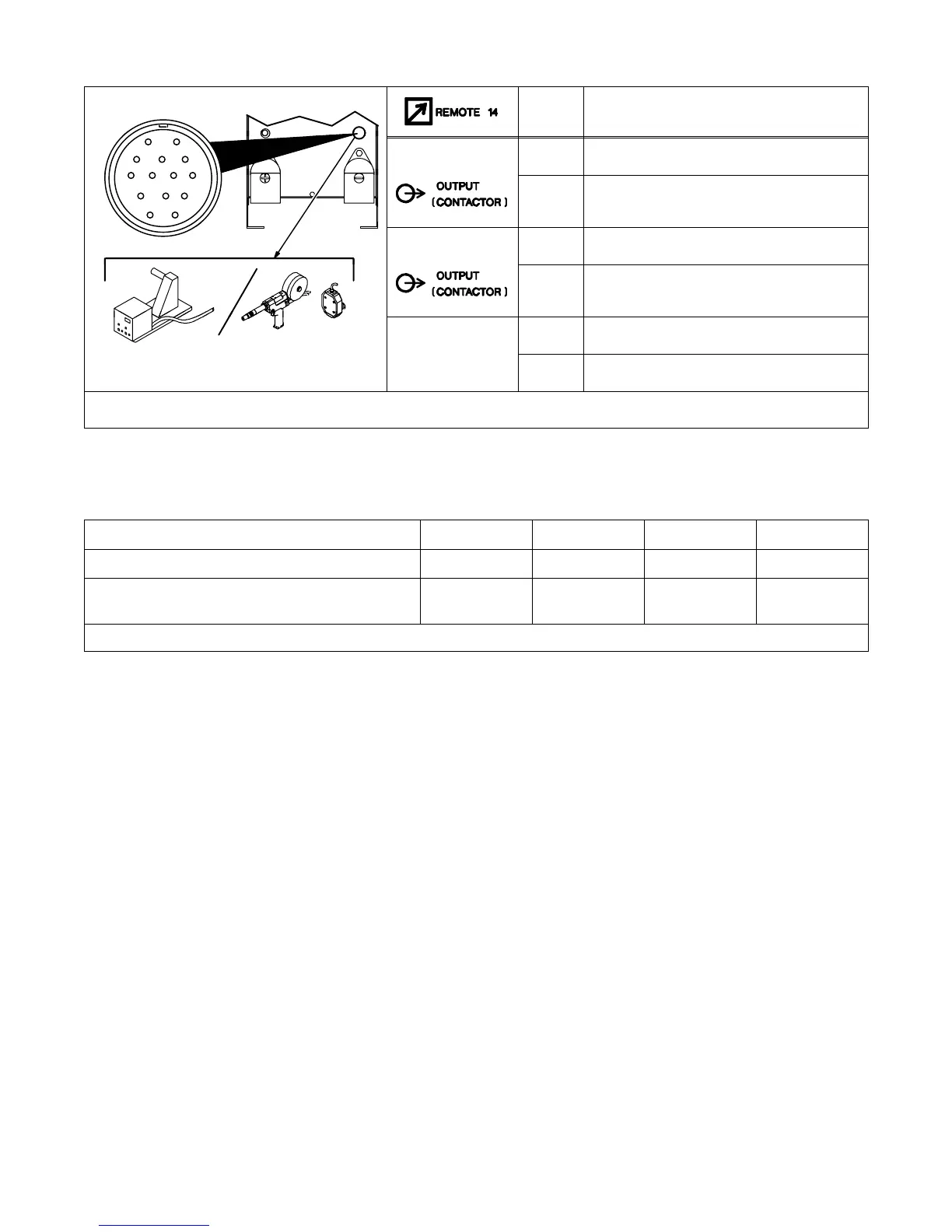

2-7. Remote 14 Receptacle Information
Socket* Socket Information
AJ
B
K
I
L
NH
24 VOLTS AC
A 24 volts ac. Protected by circuit breaker CB2.
C
L
NH
D
M
G
E
F
24 VOLTS AC
B Contact closure to A completes 24 volts ac con-
tactor control circuit.
E
F
115 VOLTS AC
I 115 volts ac. Protected by circuit breaker CB1.
115 VOLTS AC
J Contact closure to I completes 115 volts ac con-
tactor control circuit.
GND
G Circuit common for 24 and 115 volts ac circuits.
Ref. ST-121 470-C
GND
K Chassis common.
*The remaining sockets are not used.
2-8. Electrical Service Guide
Input Voltage
200 230 460 575
Input Amperes At Rated Output
46 40 20 16
Max Recommended Standard Fuse Or Circuit
Breaker Rating In Amperes
70 60 30 25
Reference: 1993 National Electrical Code (NEC) S-0092-J
