OM-293 Page 13

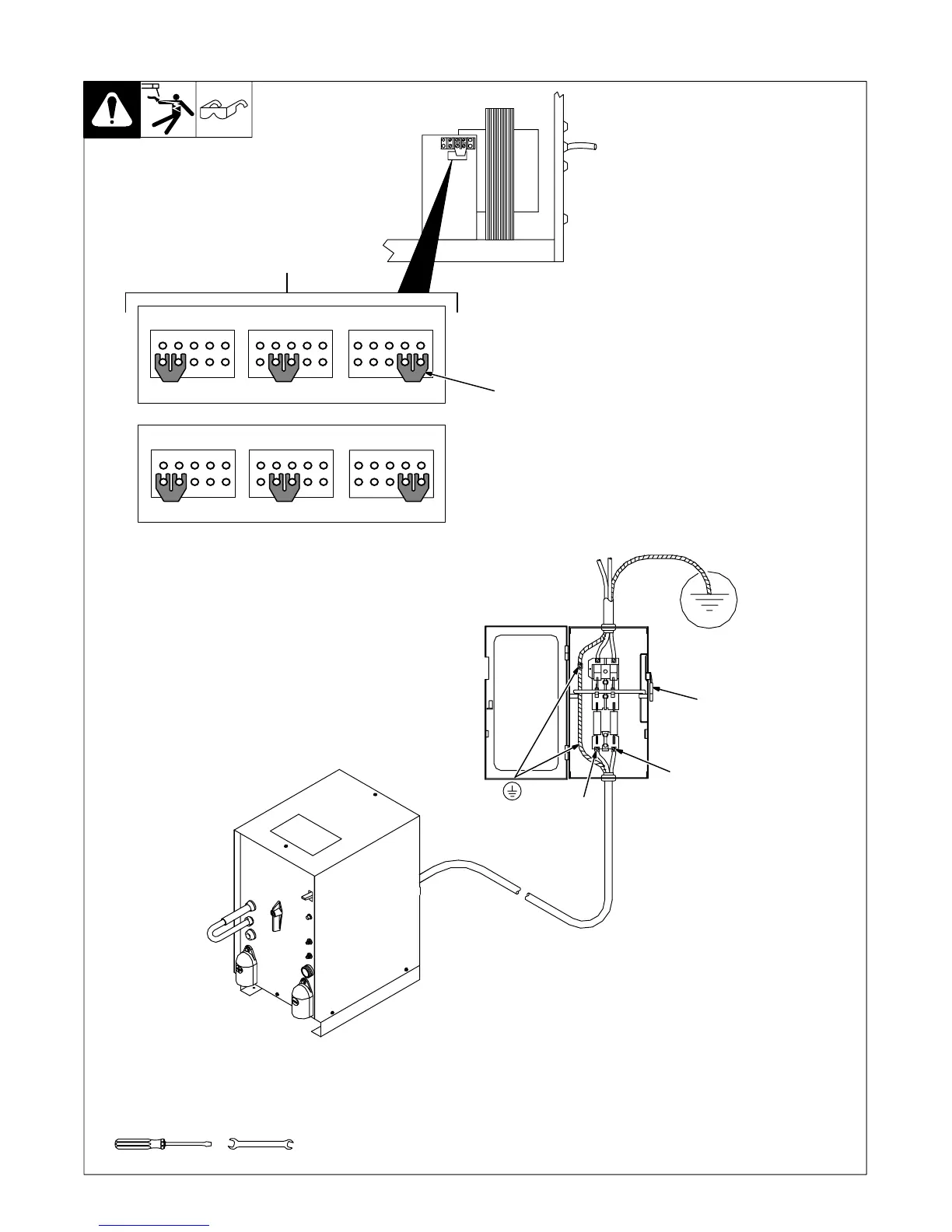

2-9. Placing Jumper Links And Connecting Input Power
S-0279-B / Ref. ST-121 471-F
Check input voltage available at
site.
1 Jumper Link Label
Check label − only one is on unit.
2 Jumper Link
Move jumper links to match input
power.
3 Line Disconnect Device
Select type and size of overcurrent
protection using Section 2-8. Rat-
ings must comply with applicable
codes. Install conductors in conduit
or equivalent into a deenergized
line disconnect device.
Reinstall wrapper.
Y Special installation may be
required where gasoline or
volatile liquids are present −
see NEC Article 511 or CEC
Section 20.
Tools Needed:
L1
GND/PE
Earth Ground
L2
1
2
3/8 in
S-153 408-A
200V 230V 460V
230 V 460V 575V
S-047 734-A
3
To Next Page
