Millipore Labscale User Manual

Labscale Tangential Flow Filtration System User Guide 17
L = 15 cm (6 inches)
Fittings: 1 male, 1 female
MALE
FEMALE
L
L = Appropriate length to reach
collection vessel.
Fittings: 2 male
MALE
MALE
L
RET OUT PORT
RET IN PORT
RETENTATE TUBING

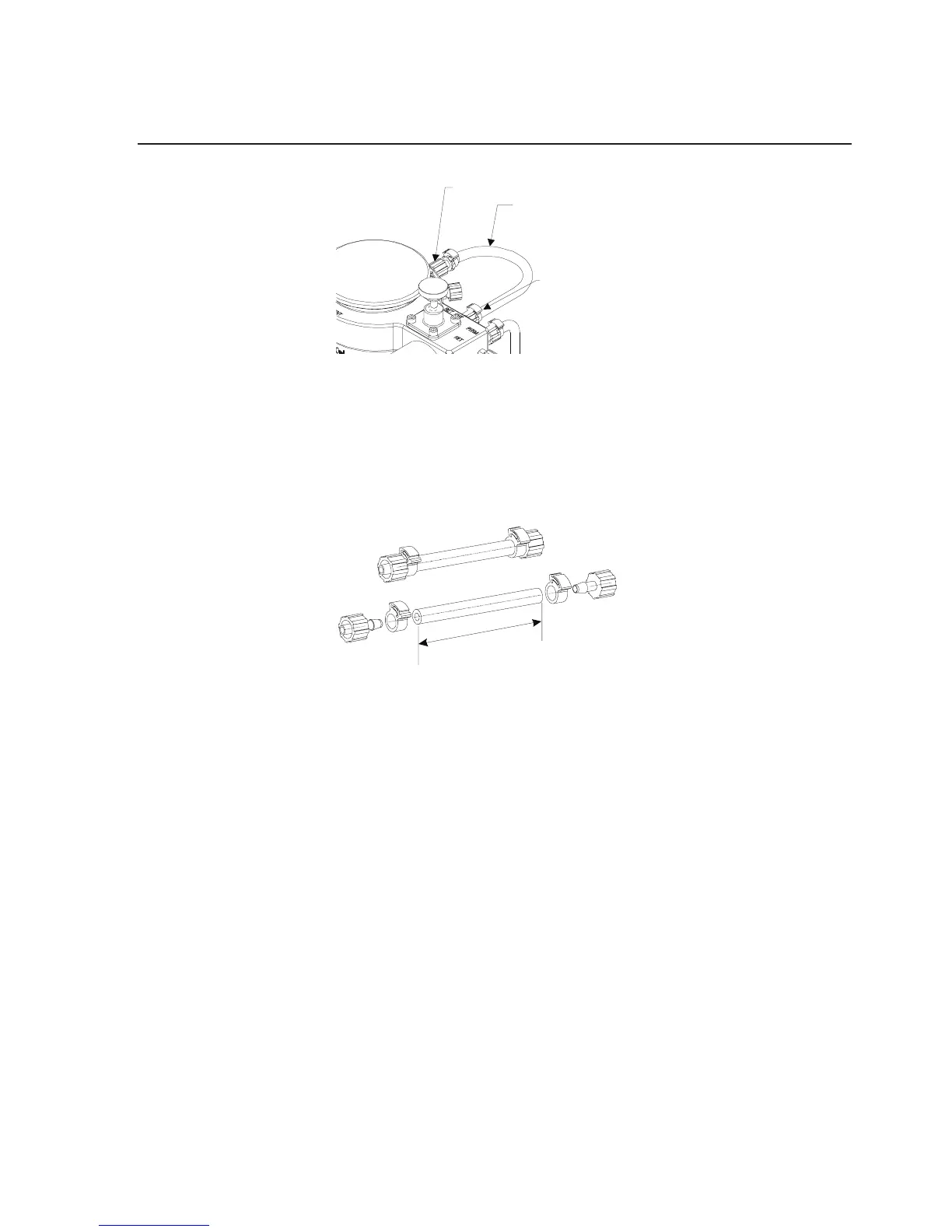

Figure 11: Install retentate tubing.
Install Permeate Tubing
1. Cut silicone (translucent) tubing and install fittings as shown in
figure 12.
L = 15 cm (6 inches)
Fittings: 1 male, 1 female
MALE
FEMALE
L
L = Appropriate length to reach
collection vessel.
Fittings: 2 male
MALE
MALE
L
RET OUT PORT
RET IN PORT
RETENTATE TUBING
Figure 12: Set-up of permeate tubing, ttings and clamps.
2. Remove the plug from the permeate outlet port (PERM 2) and
insert the male luer end of the permeate silicone (translucent)
tubing into the PERM 2 port. Turn fitting until snug.
