Millipore Labscale - Page 18

18 www.millipore.com
TANK OUTLET
VALVE
TANK OUT PORT
MILLEX VENT
FILTER
VENT PORT
PERM 2 OUT
PERMEATE TUBIN G

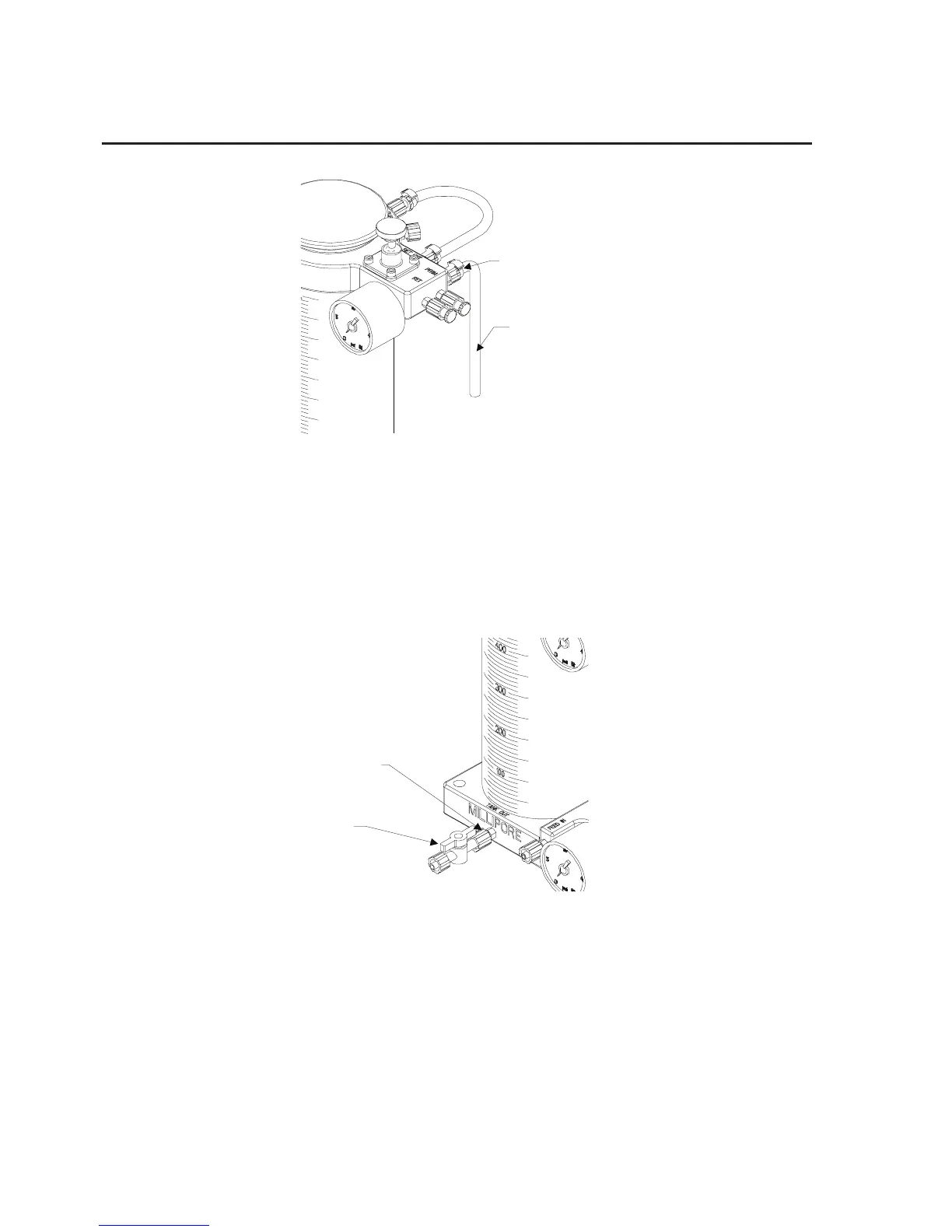

Figure 13: Install permeate tubing.
InstallTankOutletValve
Remove plug from the tank outlet port (TANK OUT) and insert
the female luer end of the tank outlet valve over the TANK OUT
port. Turn the lock nut until snug.
TANK OUTLET
VALVE
TANK OUT PORT
MILLEX VENT
FILTER
VENT PORT
PERM 2 OUT
PERMEATE TUBIN
G
Figure 14: Install tank outlet valve.
InstallVentFilter
If a sterile vent is required, remove plug from the vent (VENT) port
and insert male luer end of MILLEX filter into the VENT port.
