Pellicon-2 and 3 Mini Holder User Guide 5
Unpacking
The Pellicon 2 and 3 Mini Holder comes packed in a box and includes the following items:
Description Quantity
Manifold with two tie rods, attached to a base 1
End plate 1
Tie rod spacer 4
3/8 inch Flat washer 2
3/8-16 UNC Hex nut, silicon bronze 2
½-inch Sanitary gasket 4
Fractional sanitary clamp 4
9/16 inch Deep socket 1
Unpack the holder and deep socket. 1.
Remove the FEED and RETENTATE fittings from the holder.2.
Loosen and remove the two nuts on the tie rods. 3.
Remove the washers, spacers, and end plate from the holder. Remove the shipping 4.
insert located between the holder manifold and end plate.
Place the holder base on a level surface.5.

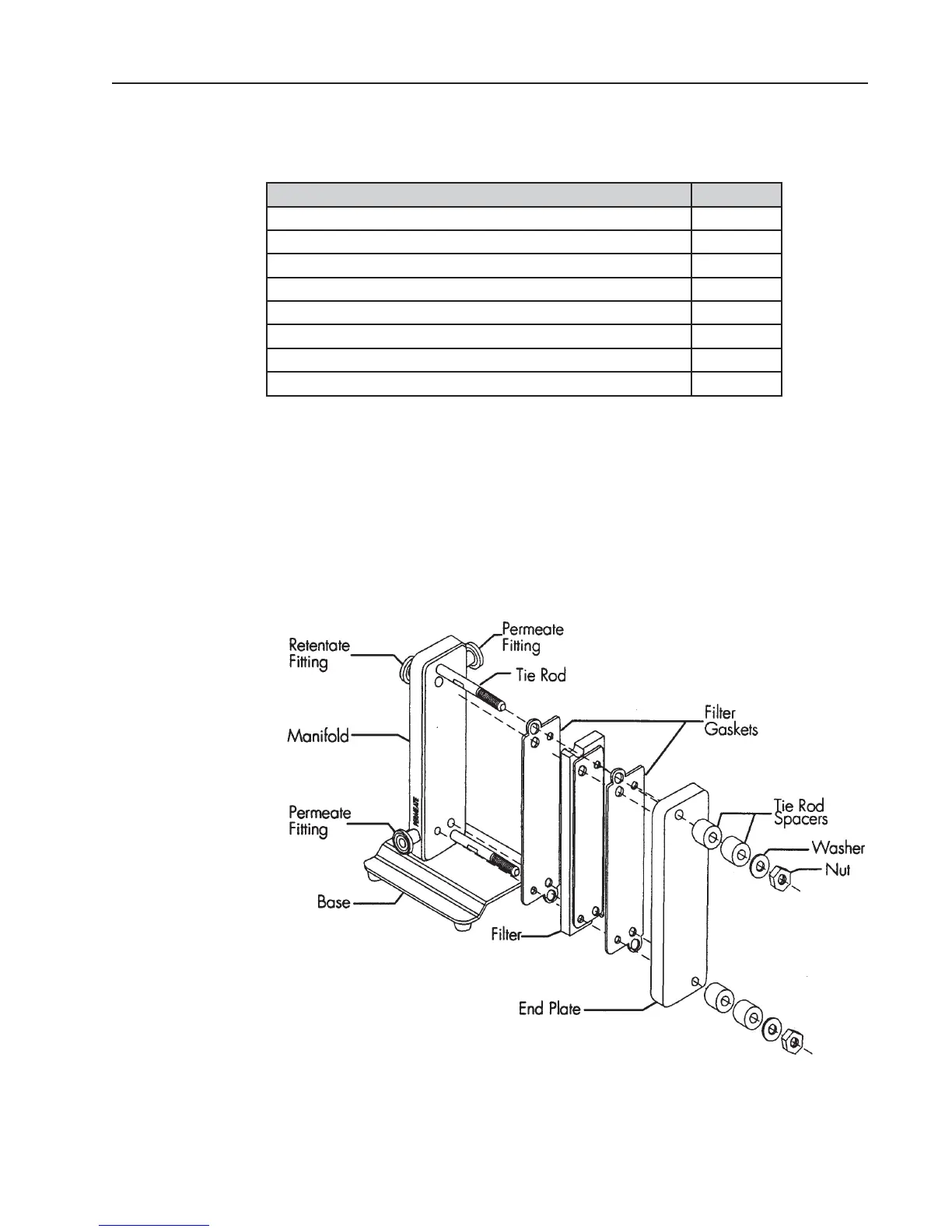

Exploded view of Pellicon 2 and 3 Mini HolderFigure 1:
