Pellicon-2 and 3 Mini Holder User Guide 7
Assembling the Pellicon 2 and 3 Mini Holder
Feed and Retentate Fitting Connections
Configurations for connecting fittings to the FEED and the RETENTATE fittings, shown
in Figure 3, include:
Connecting a pressure and sanitary diaphragm valve to the RETENTATE fitting, 1.
and a pressure gauge to the FEED fitting.
Connecting separate tubing to the FEED and the RETENTATE fittings.2.

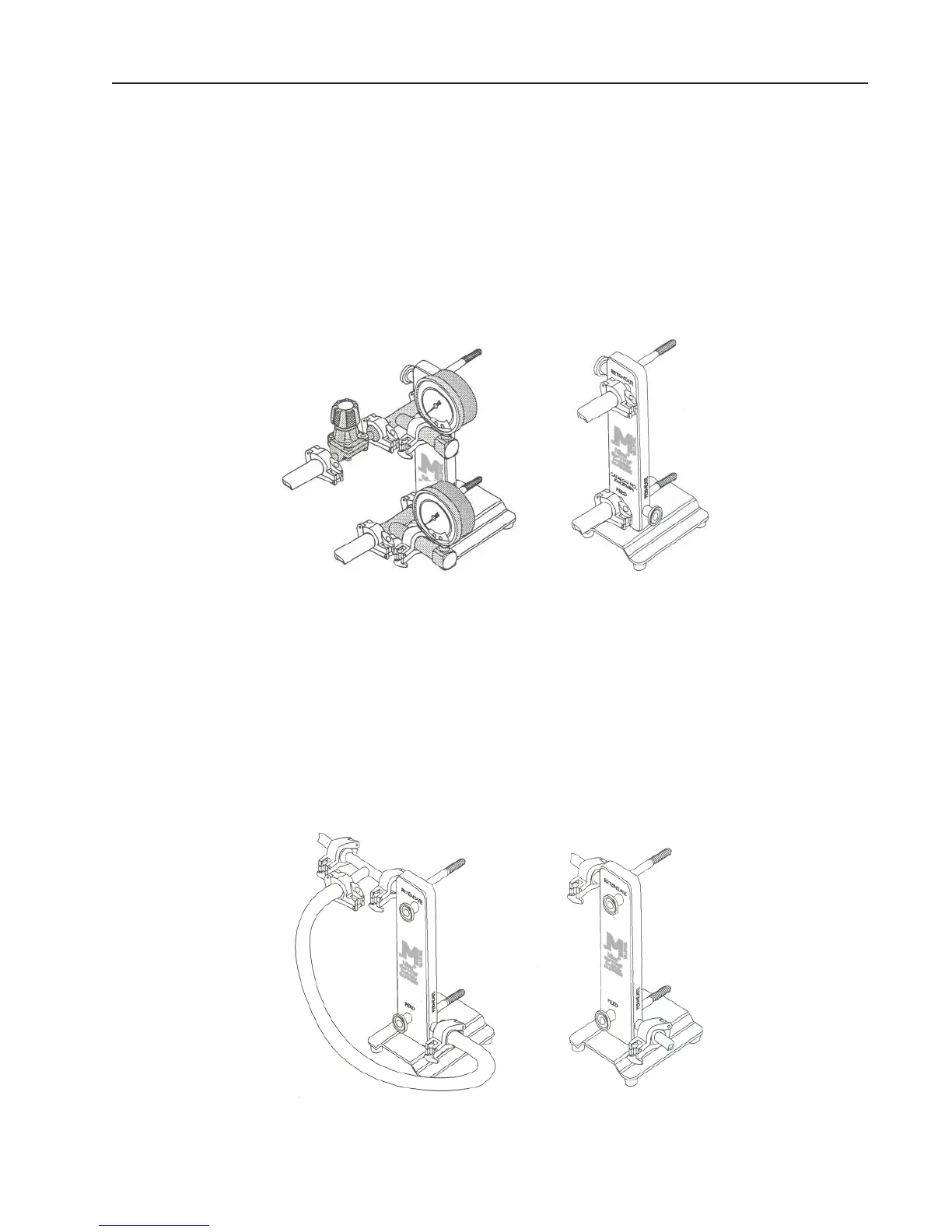

Feed and Retentate Fitting ConnectionsFigure 3:
Permeate Fitting Connections
Configurations for connecting fittings to the PERMEATE fittings, shown in Figure 4,
include:
Connecting the two PERMEATE fittings together with tubing using a tee or Y 1.
connection.
Connecting separate tubing to the two PERMEATE fittings.2.
Permeate Fitting ConnectionsFigure 4:
