Pellicon-2 and 3 Mini Holder User Guide 9

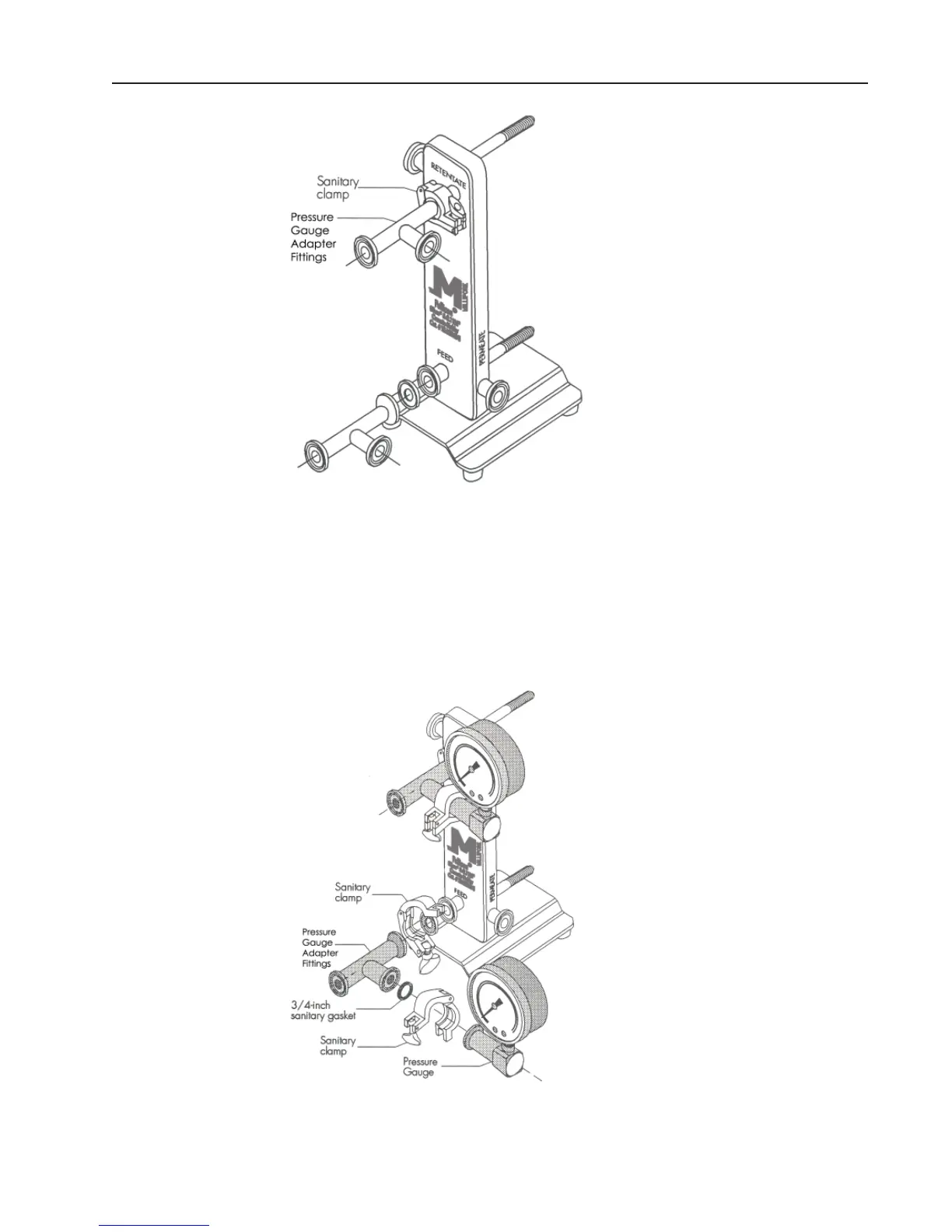

Clamping the Pressure Gauge Adapter Fittings to the Mini Holder FittingFigure 6:
Connecting the Pressure Gauge
Analog and digital pressure gauges are available from Millipore.
Seat the ¾-inch sanitary gasket in the groove on the pressure gauge adapter fittings.1.
Hold the gasket in place and press the pressure gauge diaphragm against the ¾-inch 2.
side branch of the pressure gauge adapter fittings, as shown in Figure 7.
Attaching the Pressure Gauge to the Pressure Gauge Adapter FittingsFigure 7:
