Parameter Description
P004 Transducer
Identifies transducer model connected (102 is Default after RESET).
entry :
1 = ST-25
2 = ST-50
100 = ST-H
101 = XCT-8
102 = XPS-10
103 = XCT-12
104 = XPS-15
111 = XKS-6
112 = XRS-5
P005 Units
Determines the units for programming and measurement.
entry :
1 = metres
2 = centimetres
3 = millimetres
4 = feet
5 = inches
P006 Empty

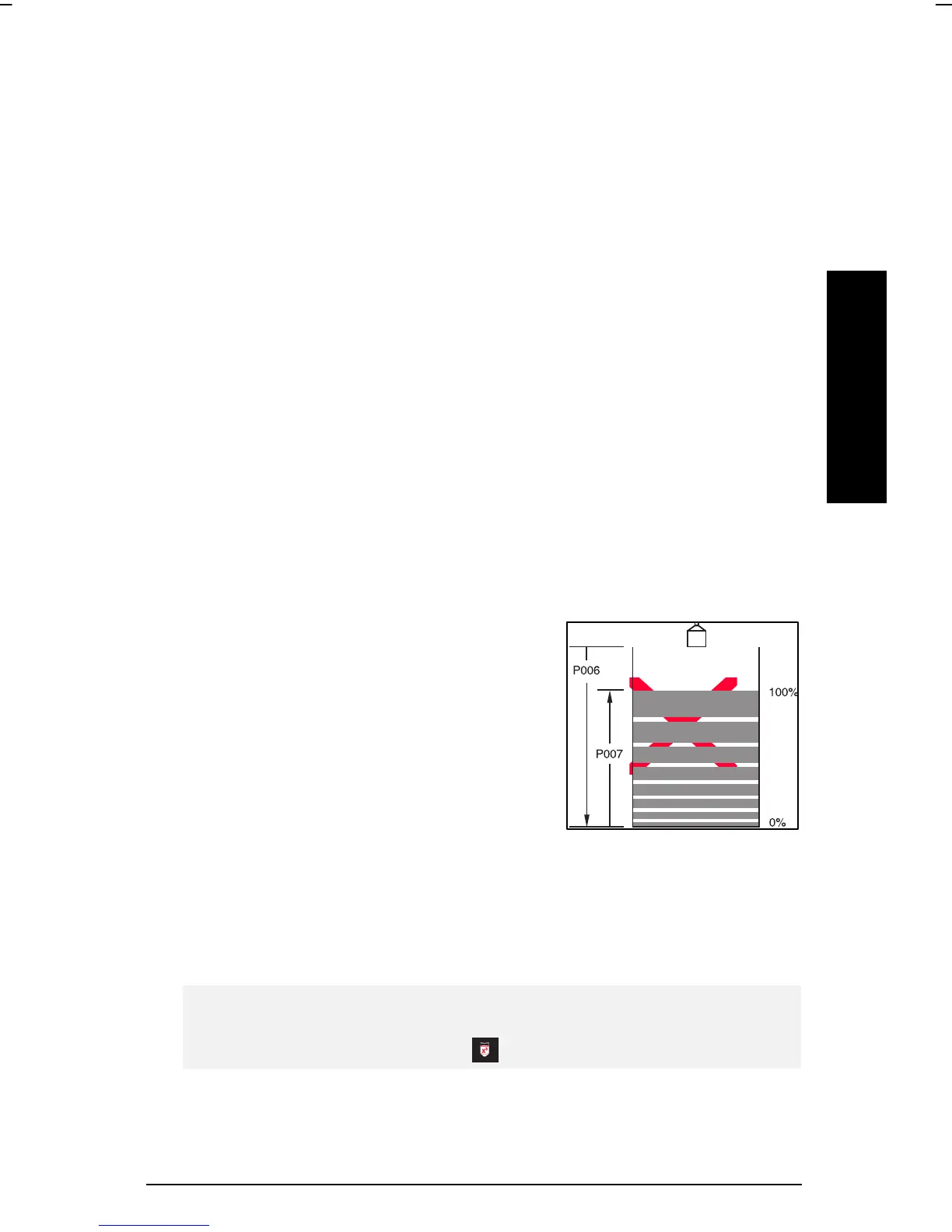

Distance from transducer face to empty level
or maximum target range.
P007 Span
Distance from empty (P006) to full / 100%
level or minimum target range.
P050 Tank Shape
This parameter, in conjunction with parameters P051, P052 and P053,
enable the MiniRanger Plus to show readings based on reservoir volume
(rather than level).
Note:
Volume calculation is an optional feature. MiniRangers with the volume
feature have this icon on the front: .
Enter the Tank Shape value that matches the monitored vessel or reservoir.
When Operation is "level" (P001 = 1), liquid (material) volume is calculated.
