7ML19981CJ01 MiniRanger Plus Page 65
Parameter Description
Notes
• Not accessible via application device keypad
• Accessible only via Dolphin.
P740 Peripheral Communication
Note:
Applicable to rack and panel units only.
Determines the ASCII message format.
entry:
0 = off if communication is not required
1 = unformatted messages are transmitted in a continuous string
2 = formatted commas are inserted between message fields
The MiniRanger plus Rack and Panel units provide a proprietary 20 mA
bipolar current loop for communication with the Milltronics BIC-2 peripheral
device.
The MiniRanger Plus uses simplex convention communication protocol.
Data messages are continuously transmitted at regular intervals (no poll is
required) at 4800 baud. All data is transmitted in structured messages of
ASCII characters consisting of 8 data bits, no parity, and 1 stop bit.
If Peripheral Communications (P740) is set for "formatted" messages, a
comma is inserted between each message field (except immediately
preceding the "End of Message" characters).

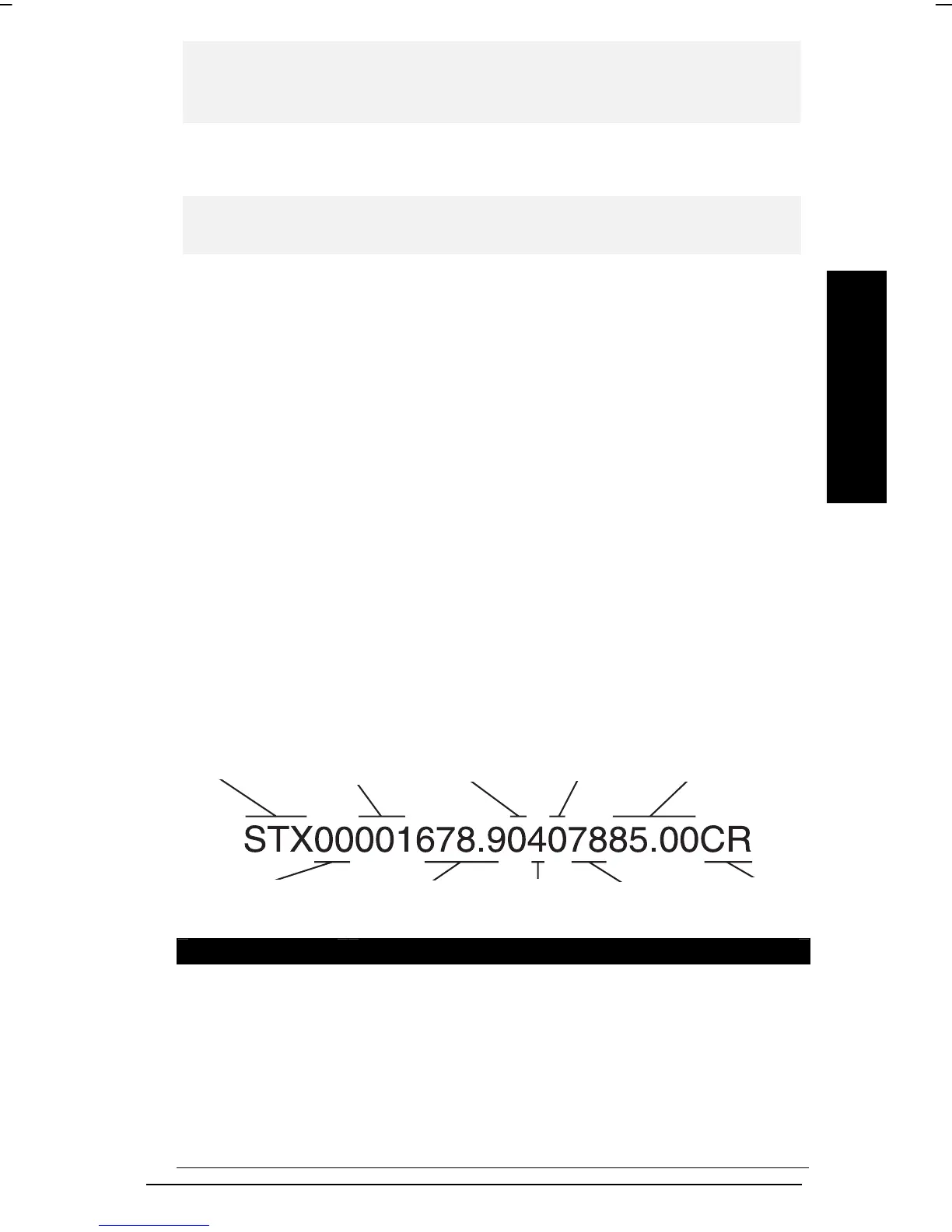

MT-00 Measurement Message
Field Name Definition
Start Of Message STX ($02)
Message Type
2 characters, 00
(indicates the following data pertains to a scan point
measurement)
Point #
3 characters, 001
(e.g. the message pertains to Point Number 1)
Reading
5 characters, 0.000 to 9999.
(e.g. reading = 678.9, DDDD. = no data, EEEE. =
overflow)
start of messa
g
e
point #
status A
status C
p
ercent
end of message
temperature
status B
reading
message type
