Parameter Description
MT-01 Hold Message
Field Name Definition
Start Of Message STX ($02)
Message Type
2 characters, 01
(indicates the MiniRanger was removed from the RUN
mode)
End Of Message CR ( $0D )
P800 Near Blanking
Sets the amount of blanking as measured from the transducer face and
extending into the measurement range. Refer to Blanking on page 34.
enter value referenced from the face of the transducer in units of P005.
P801 Range Extension
Sets the amount of range extension as measured from the empty distance
(P006) and extending into the far end blanking. Refer to Blanking on page 34.
enter as a % of P006, the distance below empty not blanked.
P802 Submergence Transducer
When using a transducer with a submergence shield, set entry to `1' to
enable submergence feature. Refer to Pump Control Application on page 46.
entry:
0 = normal
1 = submersible
P804 Confidence Threshold
The minimum echo confidence in dB that either the short or long echo must
meet in order to prevent a loss of echo condition and the expiration of the
fail-safe timer (P070).
short minimum echo confidence for short pulse echoes; those within the
short pulse echo range.
long minimum echo confidence for long pulse echoes.
entry:
## : ## = short : long

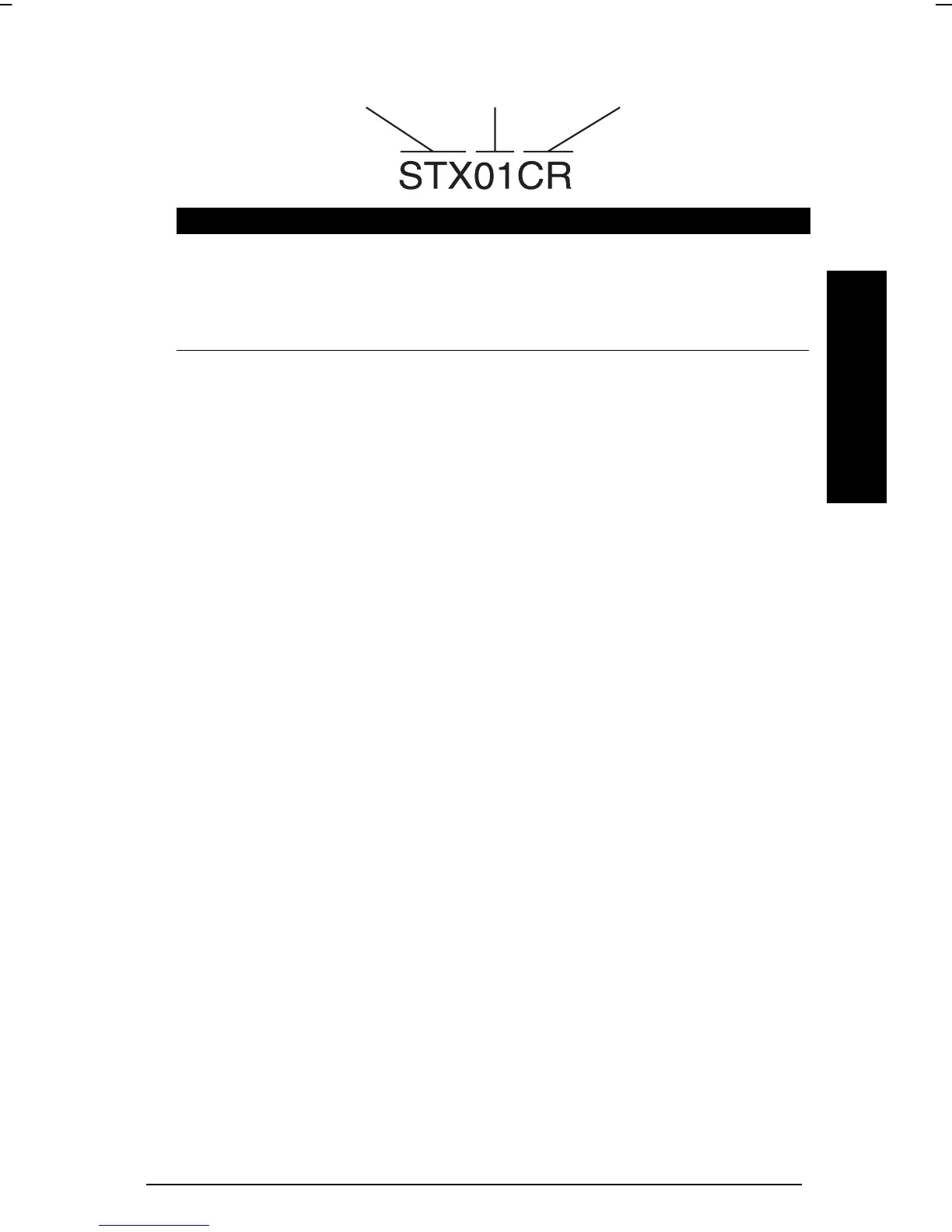

start of message end of message message type
