48040Fxx48040H_ & 68036H_ Washer Extractor Installation
PELLERIN MILNOR CORPORATION

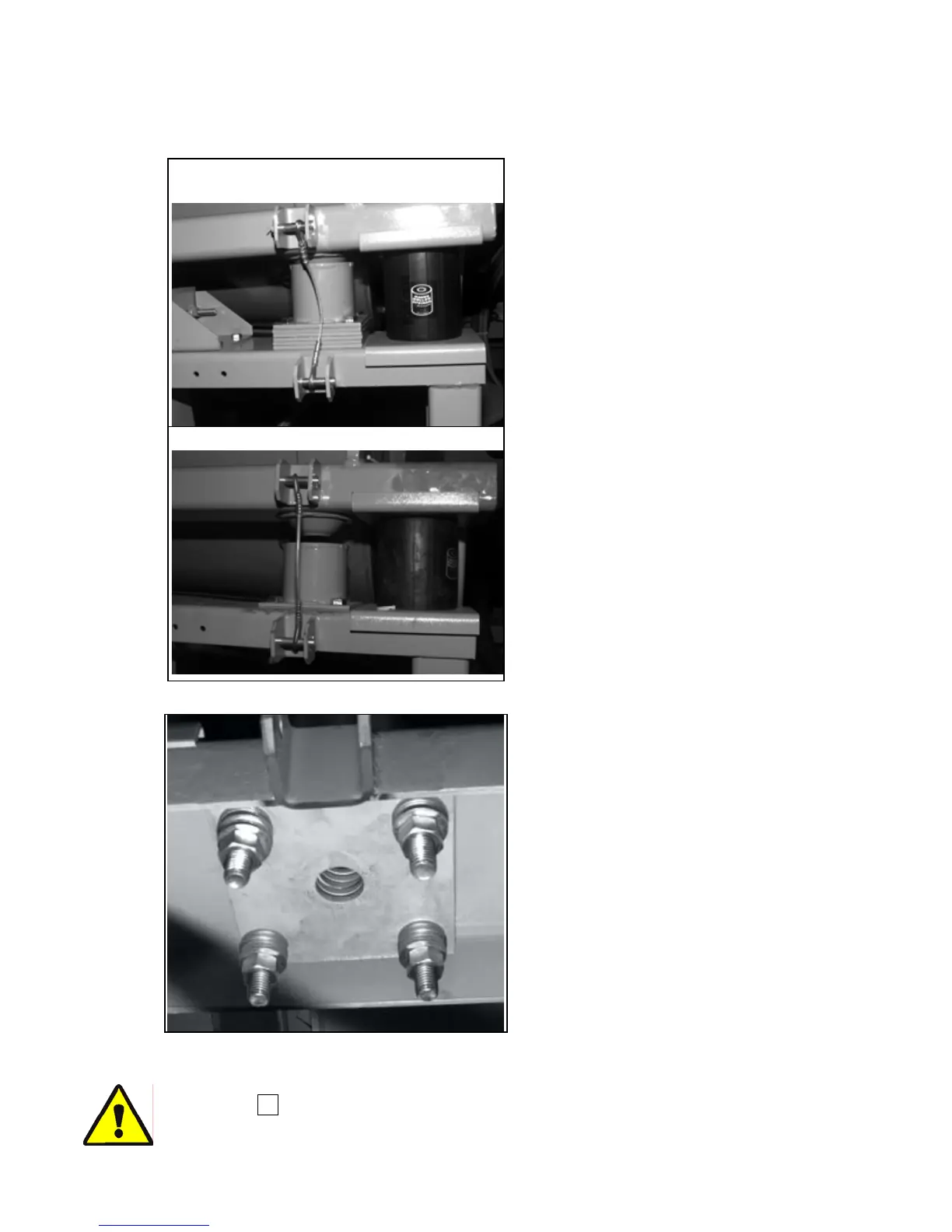

Figure 4: The hold down weldment
Cone-can weldment as shipped, locking the
shell and mid frame together
Cup weldment when setup for operation
.
Figure 5: Shims stored under the mid frame
6.
Before Tilting Machine
WARNING 5 : Crush/Sever hazard—Tilting mechanisms can crush or sever parts of your
body caught in them.
