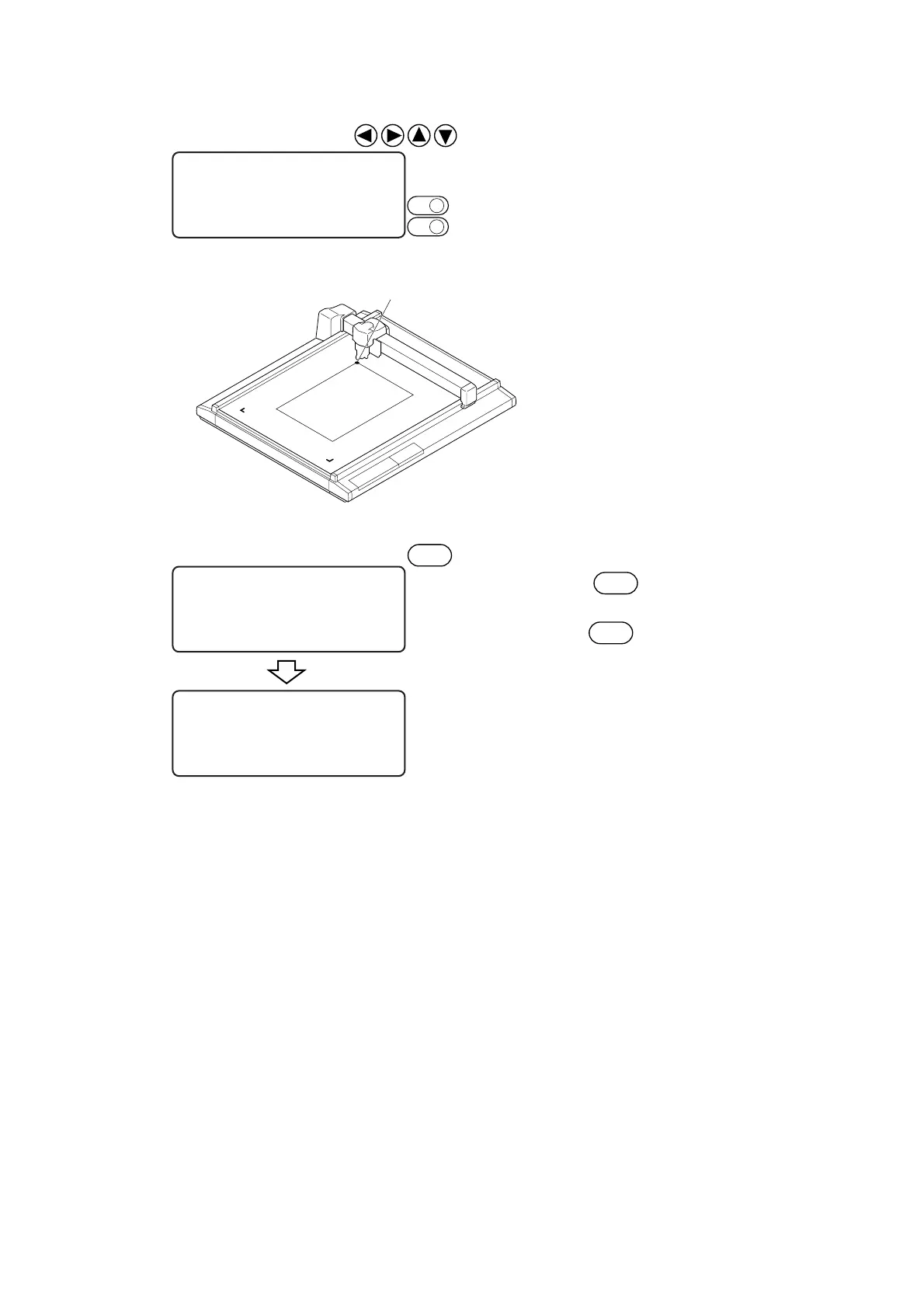

8 Align the tip of the tool to the upper
right point of the desired cutting area.
Move the tool using the jog keys until
the tip of the tool meets the upper right
point (UR) of the cutting area.
Change the head speed or lift/lower the
tool when necessary.
9 Enter the UR point.
Press the
END
key to enter the input
values. If you do not enter the input data,
press the
C E
key.
The step of procedure 4 will be restored
on the LCD.
END
< AREA UR > [ mm ]
–600.0 –450.0
SPEED FAST >
CUTTER UP >
F3
+
F2
+
[ LOCAL ] 4 / 4
CUT AREA ———>
AXIS ALIGN ———>
TOOL SELECT ———>
< AREA LL > [ mm ]
–380.0 –112.0
SPEED FAST >
CUTTER UP >
Upper right point (UR)
