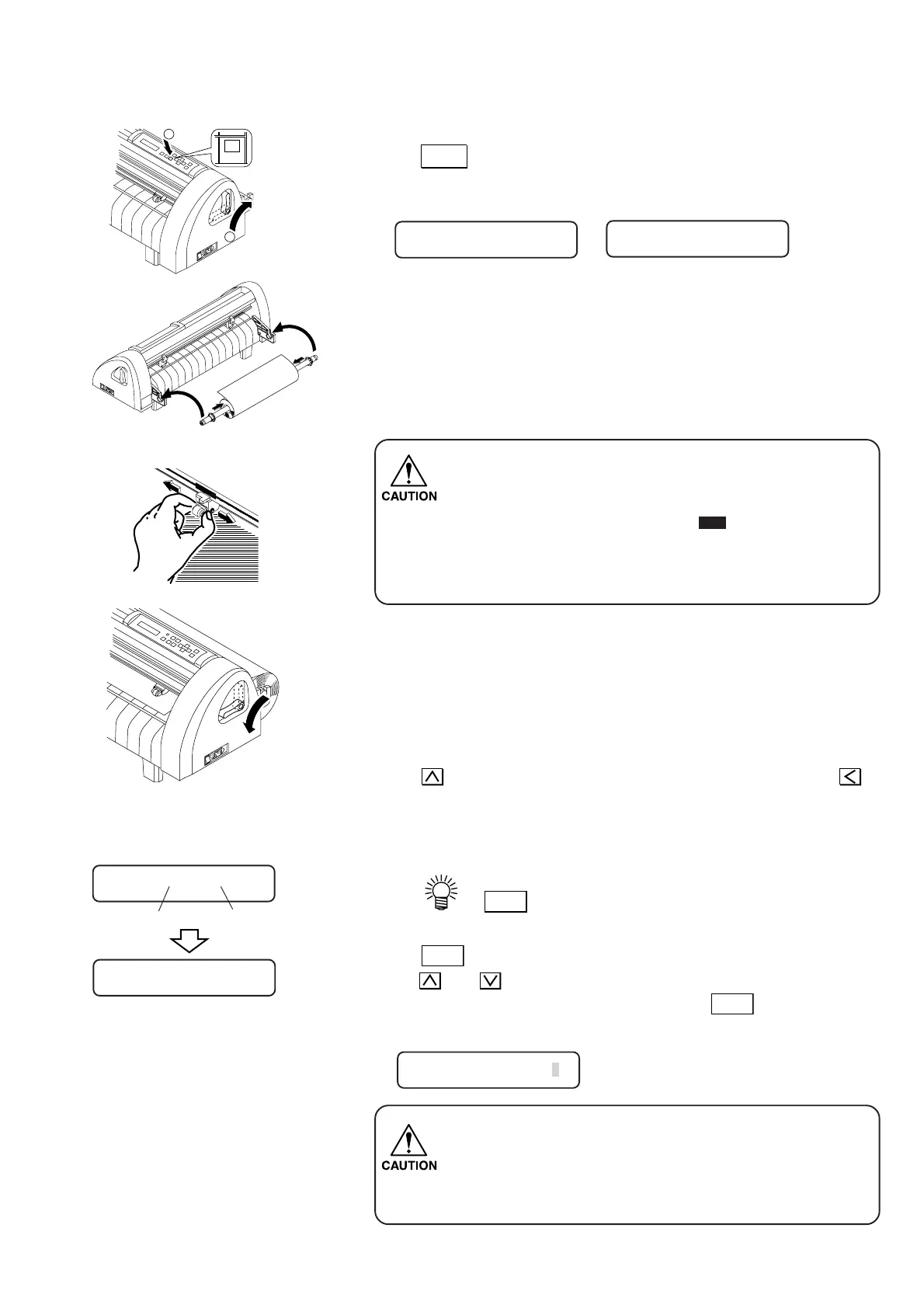

Loading a roll sheet
When roll sheet is used on this equipment, attach a roll stay. Regarding the attachment of roll stay, refer to "From box opening to installa-
tion. (--->P.7)". If roll paper is attached for the first time, start from step 2, and when replacing the roll sheet, start from step 1.
1. Press
SHEET SET
key, and raise the sheet set lever.
Replace the roll sheet. LCD display will be indicating the image as shown on the right. When
setting the sheet, slide the carriage by hand lightly so that the carriage will not get in the way.
2. Set the roll sheet.
Insert the roll bar through the roll sheet. Place the roll sheet between the two roll holders. Place it
on the roll stay. Adjust the position of the roll holders to determine the position of the roll sheet.
These roll holders prevent the roll sheet from moving from side to side during cutting. Stretch
the sheet and insert it through the platen.
3. Move the pinch roller to match the sheet width.
• Set the pinch roller at a position at least 5mm inside from
the sheet edge. If it is positioned less than 5mm, it may
cause the sheet to get out of its place during sheet feed.
• Set the pinch roller to align with " " mark of the
grid roller.
• Roll stay can be set either in the front or rear of the main
body. (--->P.7)
4. Lower the sheet set lever.
5. Press key when the roll sheet is set from the front or press
key when the roll sheet is set from the rear to select "ROLL".
Initial operation will be made after detecting the sheet.
Display panel will indicate the image as shown on the left.
• You can finish detecting the sheet, when you press
END
key while detecting the sheet.
6. Press
FEED
key.
Use key or key to set the length to be used. Set the length to be used based on the
length in the feed direction of the cut data. After setting, press
ENTER
key. Then, the sheet
will be fed automatically.
• Before using the roll sheet, pull out the sheet in the length
equivalent to the length used in advance to leave a
margin. By feeding the sheet out, you can make sure that
there is no sheet shifting in advance.
• Maximum length for setting is 51 m (167 feet).
ROLL <R> LEAF
Displays the detected size of the
roll sheet.
A=**** B=559
CUT1 20 050 0.30
Unit: mm
ROLL F LEAF
1
2
SHEET SET
Displays the currently specified
tool conditions.
sheet length
sheet width
SHEET FEED :1.0m
^
^
