MIMAKI CG-60st User Manual

6

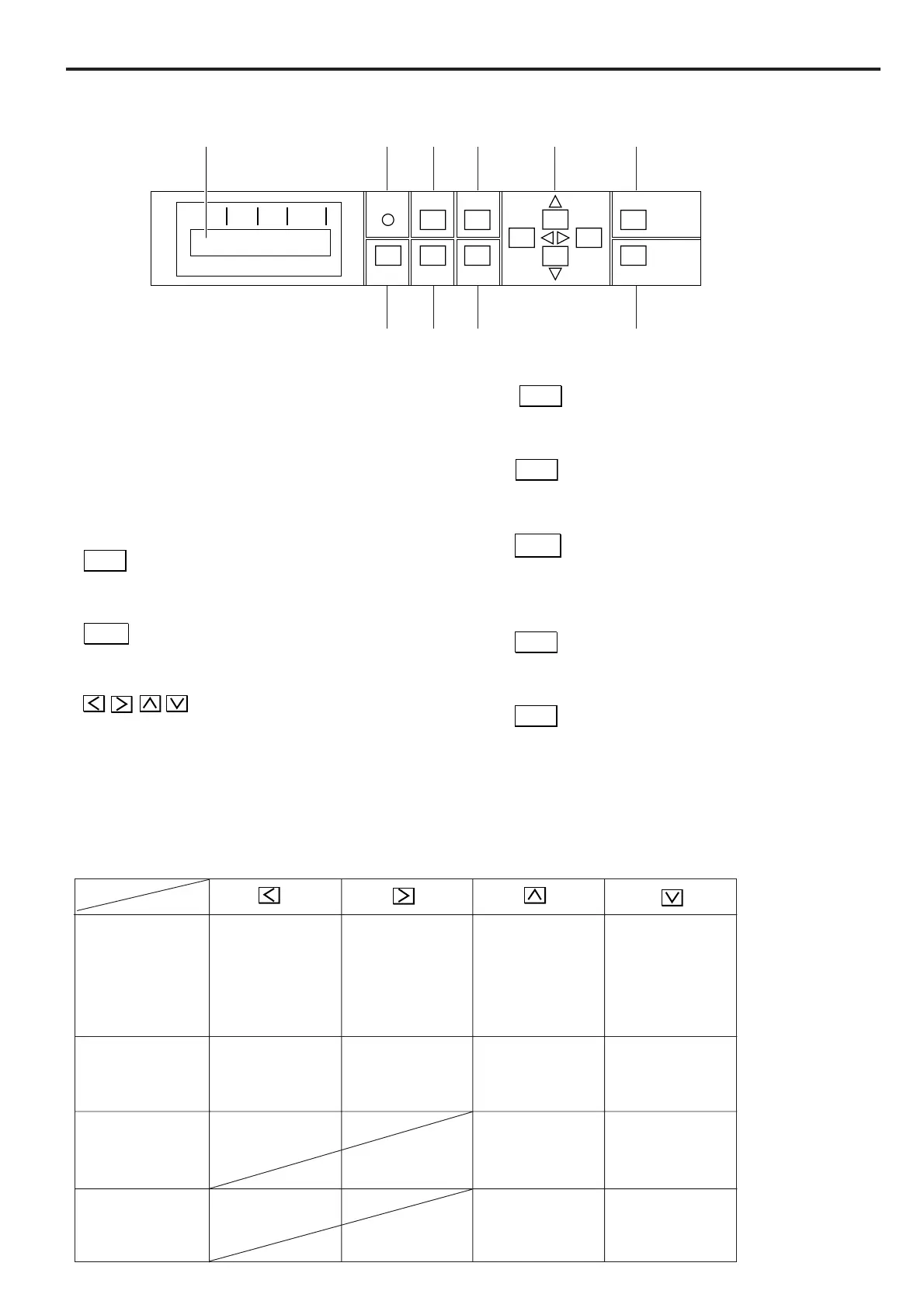

OPERATION PANEL
Configuration of the operation panel is as shown below.
1. Display panel
The display panel indicates tool conditions such as speed,
pressure and offset, tool coordinates, functions and error mes-
sages.
2. POWER lamp
It lights up when the power to the device is turned on.
3.
FEED
Feed key
This key is used to execute the sheet feeding.
4.
FUNCTION
Function key
This key is used to specify the function.
5. Jog key
These arrow keys are used to shift the carriage or sheet in the
corresponding direction or change settings.
Refer to the explanation for each key in the table below.
When selecting a
function
6.
END
End key
It is used to cancel the value is the last input.
7.
ENTER
Enter key
This key is used to enter the last input value for a setup item.
8.
SHEET SET
SHEET SET key
If this key is pressed when detecting the sheet size, the carriage
can be moved manually.
9.
TOOL
Tool select key
This key is used to select a tool and establish tool conditions.
10.
REMOTE
Remote key
It is used to change over the operation mode between the
REMOTE mode and LOCAL mode.
If this key is pressed while the device is in operation, the device
will be brought to a halt.
To restart the device, repress the key.
After the detection
of a sheet
Before the
detection
of a sheet
Detects the width and top
end of the sheet.
(In the case where a cut
sheet is loaded onto the
front of the device)
Detects the sheet width.
(In the case where a roll
sheet is loaded onto the
front of the device)
Detects the width and top
end of the sheet.
(In the case where a cut
sheet is loaded onto the
rear of the device)
Detects the sheet width.
(In the case where a roll
sheet is loaded onto the
rear of the device)
Moves the sheet toward
you.
Shifts the sheet away
from you.
Shifts the carriage to the
right.
Shifts the carriage to
the left.
Restores the last
function.
Moves to the next
function.
Jog keys
The arrow keys are used as described in the table below.
SPEED OFFSET
POWER FEED FUNCTION
REMOTE TOOL SHEET SET
PRESS
END
ENTER
1
2
34
5
6
7
8
910
When selecting
values
Change the last value. Change the next value.
