MIMAKI CG-60st User Manual

18
Data clear
FUNCTION
FUNCTION
FUNCTION
FUNCTION
FUNCTION
FUNCTION
FUNCTION
ENTER
ENTER ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
DATA CLEAR <ENT>
1~999
•Setting of reference lines (Make a choise and input)
Local mode
CUT1 20 050 0.30
No. copies
Square cut (test cutting)
Dist. Comp.
Set up
Sample cut
Dump
List
No. COPIES <ENT>
SQUARE CUT <ENT>
DIST. COMP. <ENT>
SET UP <ENT>
SAMPLE CUT <ENT>
ASCII DUMP <ENT>
LIST <ENT>
DISPLAY
DISPLAY <ENT>
•Setting of compensation range
A-axis:±5%(0.1mm step)
B-axis:±5%(0.1mm step)
A-axis:500,1000,1500,2500mm
B-axis:200,400mm
Japanese, English,
German, French,
Spanish, Italian,
Portuguese
Cutting based on the same data is
repeated for multiple number of times
Transmittied data is cleared
Distance is adjusted
Test cut (Squeare) is made
Test cut (Sample cut) is made
*
*
*
*
*

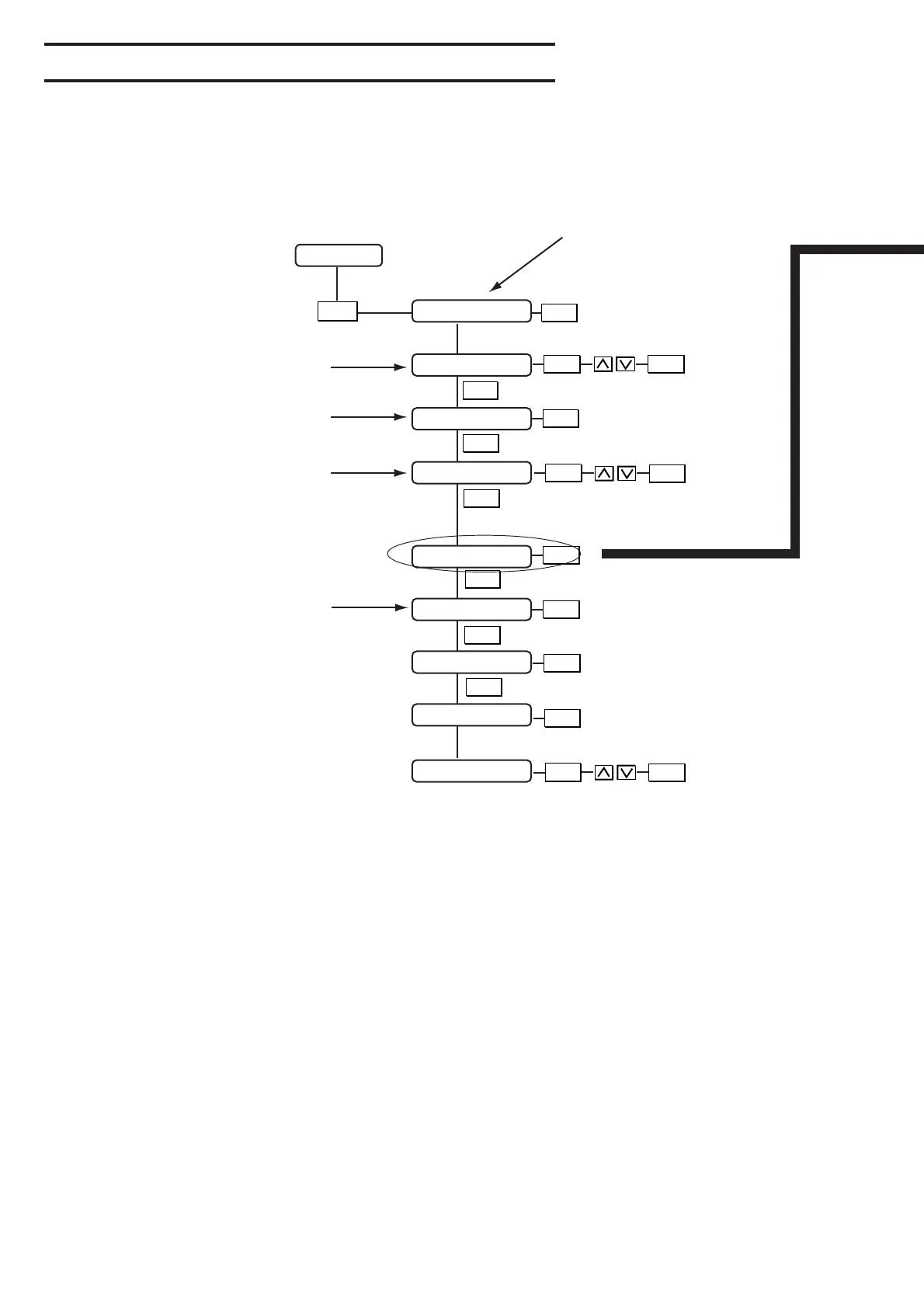

In the function menu flow chart section, major functions of basic operation and applied functions are explained with a
*
mark attached.
Regarding the
*
marked function, see the referenced page on the table of functional explanations. Furthermore, see "Listing of functions
(--->P.20~)" for each function.
Operation of keys corresponding to the functions
