30

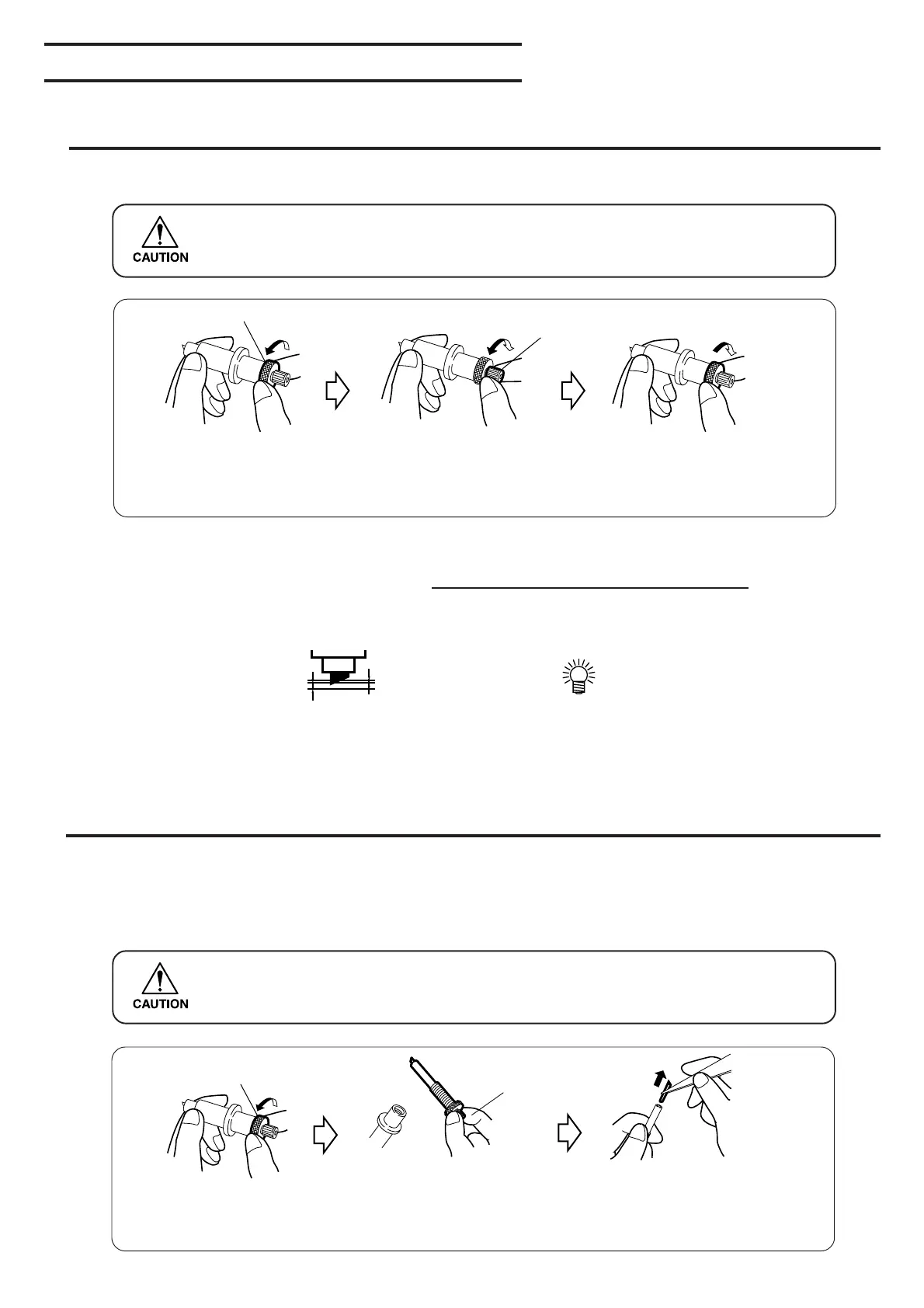

Replacing the cutter blade
Cutter blade is a consumable item. As you continue cutting, cutting quality will gradually degrade. By changing the speed value or pressure
value of the cutter, improvement can be expected to some extent. If such changes do not improve the situation, replace the blade. Also, when
the cutter blade is broken or rounded, replace the blade with a new one.
New blades (low-pressure blade set for PVC sheet: Model SPB-0030) are available from your distributor MIMAKI sales office.
• The cutter blade is sharp. Keep your fingers away from the blade.
• Never swing the cutter holder to avoid danger. Blade can jut out from the cutter holder,
if swung.
2
(Film thickness + Base paper thickness)
Protruding amount of the cutter blade
=
2. Turn the adjusting knob
to adjust the protruding
amount of the blade.
3. Tighten the locknut to
secure the adjusting knob.
1. Loosen the locknut.
1. Loosen the locknut.
2. Turning the adjusting
knob, draw out the cutter
from the holder.
3. Replace the blade with
a new one using
tweezers or the like.
Lock nut
Adjusting knob
Lock nut
Adjusting knob
Adjusting the blade tip of the cutter
Adjust the protruding amount of the cutter blade to the type of cutter and sheet of media to be used.
When you have adjusted the cutter blade, conduct test cutting to check the cutter for sharpness.
• Take care not to protrude the blade too much. If the cutter is used with its blade
excessively protruded, the cutter can cut out the base paper to damage the main unit.
Adjusting the Blade tip and the brade of cutter
• The blade adjuster (model: OPT-S1005)
will facilitate the adjustment of the
protruding amount of the blade.
Base paper thickness
Film thickness
To Next Page
