25
Compensation value
Find compensation values referring to the description given below.
Compensation value = Measurement of the OFF line – Reference length input
Example)
Reference length input = 1000 mm
Measurement of the OFF line = 999.0 mm
999.0 – 1000 = –1.0 mm
As a result, the compensation value to be input will be “–1.0 mm.”
Settings of reference lines (Make a choice and input it)
• For "mm":
A-axis : 500, 1000, 1500, 2000, 2500 mm
B-axis : 200, 400 mm
• For "inch":
A-axis : 24, 36, 48, 60, 72, 96 inch
B-axis : 6, 12, 18
Settings of compensation range (numerical input)
• For “mm”:
A-axis : ±5 % (0.1 mm step)
B-axis : ±5 % (0.1 mm step)
• For “inch”:
A-axis : ±1 inch
B-axis : ±1 inch

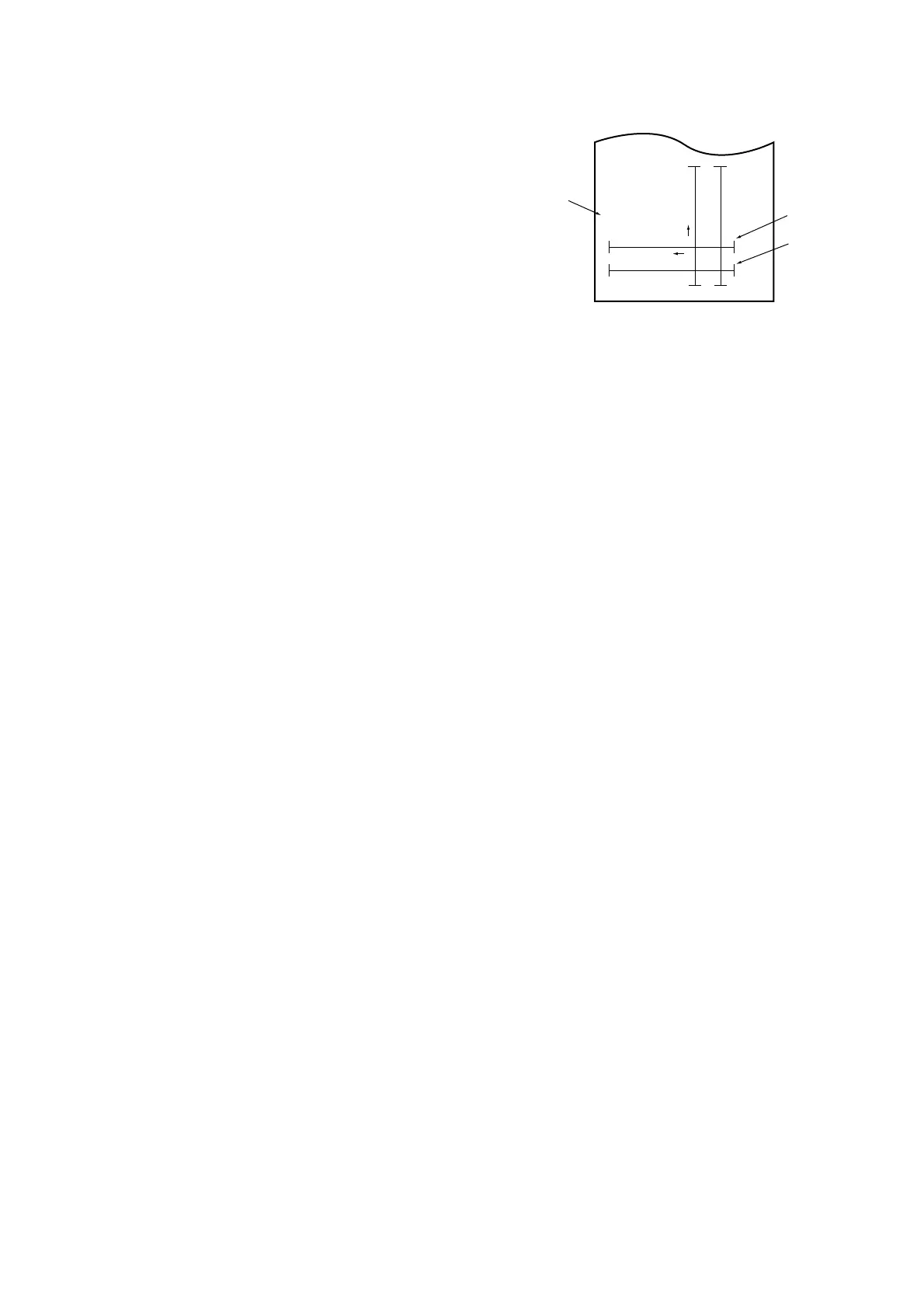

Reference line
Distance compensation
adjustment pattern
Compensated line
Coompensation rate
ON
OFF
OFF
ON
A
B
1.00000
(1000mm+0.0mm)
A
*
1.00000
(400mm+0.0mm)
B
*
