Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Mounting of Head Unit
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0

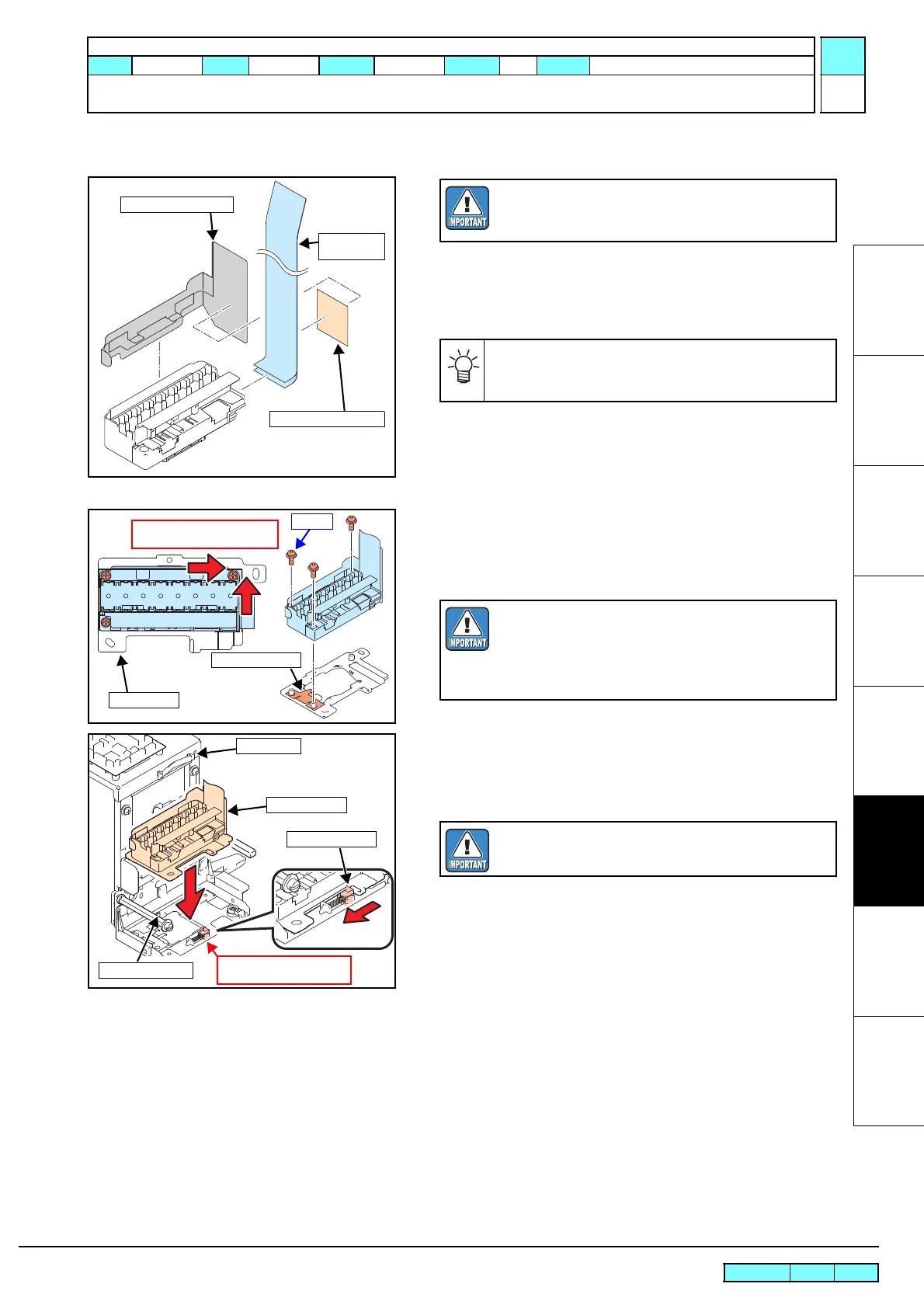

6.2.3 Mounting of Head Unit
Work procedures
1. Bond the head unit holder B with the head FFC assy and the
head memory cable together using the acetate fabric tape and
mount it on IH47V-2-G head unit assy.
2. Insert the head earth plate in the AD plate and clamp three
screws under the condition of lightly pushing the IH47V-2-G
head unit assy towards the right recess.
3. Position the IH47V-2-G head unit assy using the positioning
pin at a recess, AD pusher on the near side towards you, and
tilt adjusting jig, and mount the unit assy on the slider.
4. Hold the head FFC assy and the head memory cable and
cable with a clamp.
Head Unit Holder B
Head FFC
Assy
Acetate Fabric Tape
If entering the head ID manually, note it in advance.
(Normally, you do not need to do it because of
automatic writing.)
Since it is difficult to mount the head memory cable
after FFC has been already taped, tape the head
memory cable and FFC together.
Head Earth Plate
AD Plate
Screw
Move it in a slight distance
towards the right recess.
• Do not touch the nozzle surface.
• The washing liquid must not attach to the head
FFC.
• Do not push the head strongly because it becomes
distorted to influence printing quality.
AD pusher
Head Unit
Clamp
Positioning Pin
Be careful not to contact
with the nozzle surface.
Take care for the nozzle surface not to touch the AD
pusher.
To Next Page
