MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
6.2.7 P.1
1
2
3
4
5
6
7
8
R.1.0
Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Cap Head Assy
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

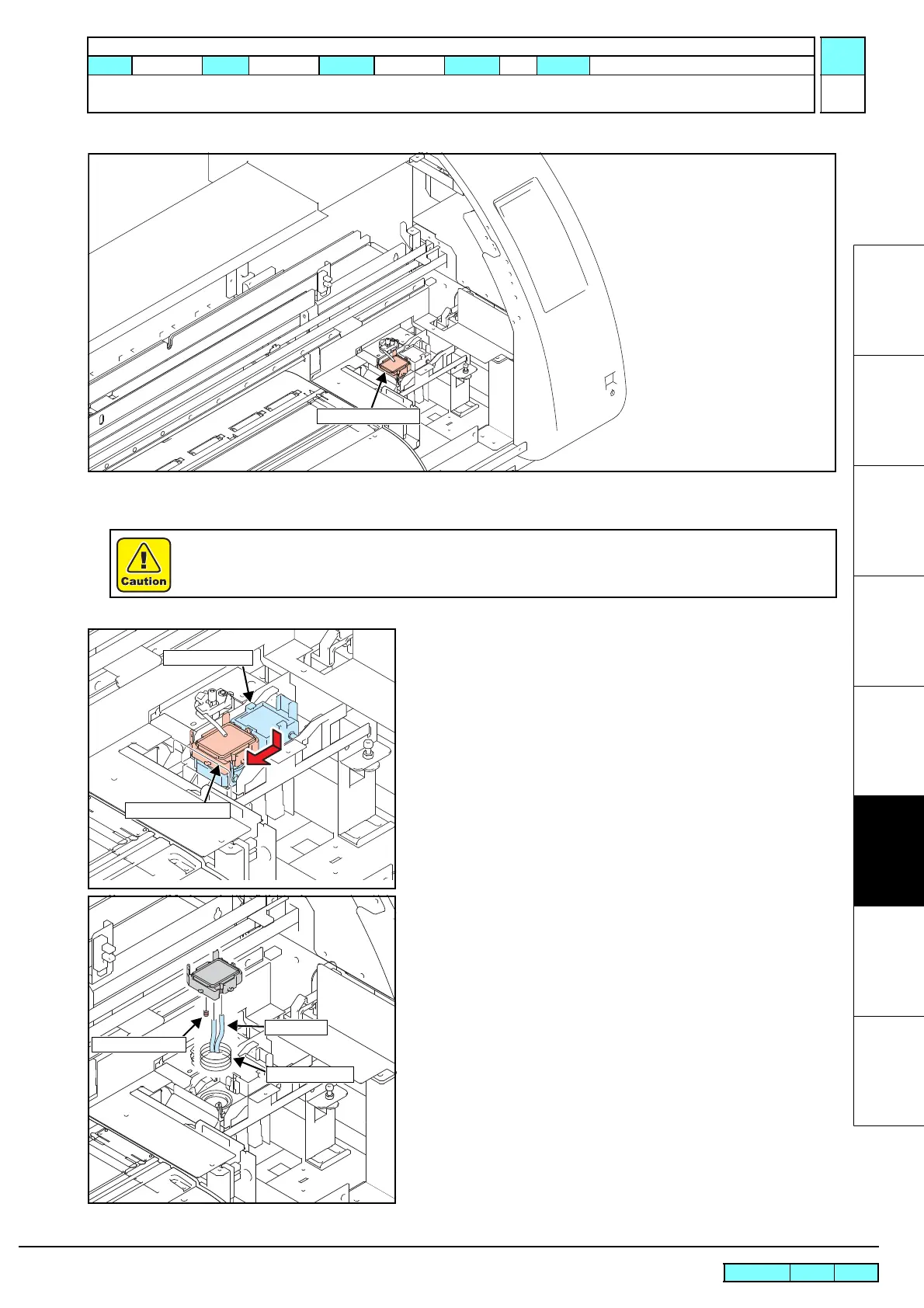

6.2.7 Cap Head Assy
 Work procedures
1. Turn off the main power supply of the printer.
2. Manually move the head unit over the platen.
3. Remove the following covers.
• Station Cover U
• Wiring Cover
4. While pushing down the cap head assy, slide it to the left and
remove it from cap slider 33.
5. Remove the tube, cap SPG and cap stopper from the cap head
assy.
6. Reverse the disassembly procedure for reassembly.
Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.
Cap Head Assy
Cap Head Assy
Cap Slider 33
Tube
Cap SPG
Cap Stopper
