Maintenance Manual > Disassembly and Reassembly > Cut Head Carriage > Auto Cutter Assy
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.
6.3.2 Auto Cutter Assy
 Work procedures

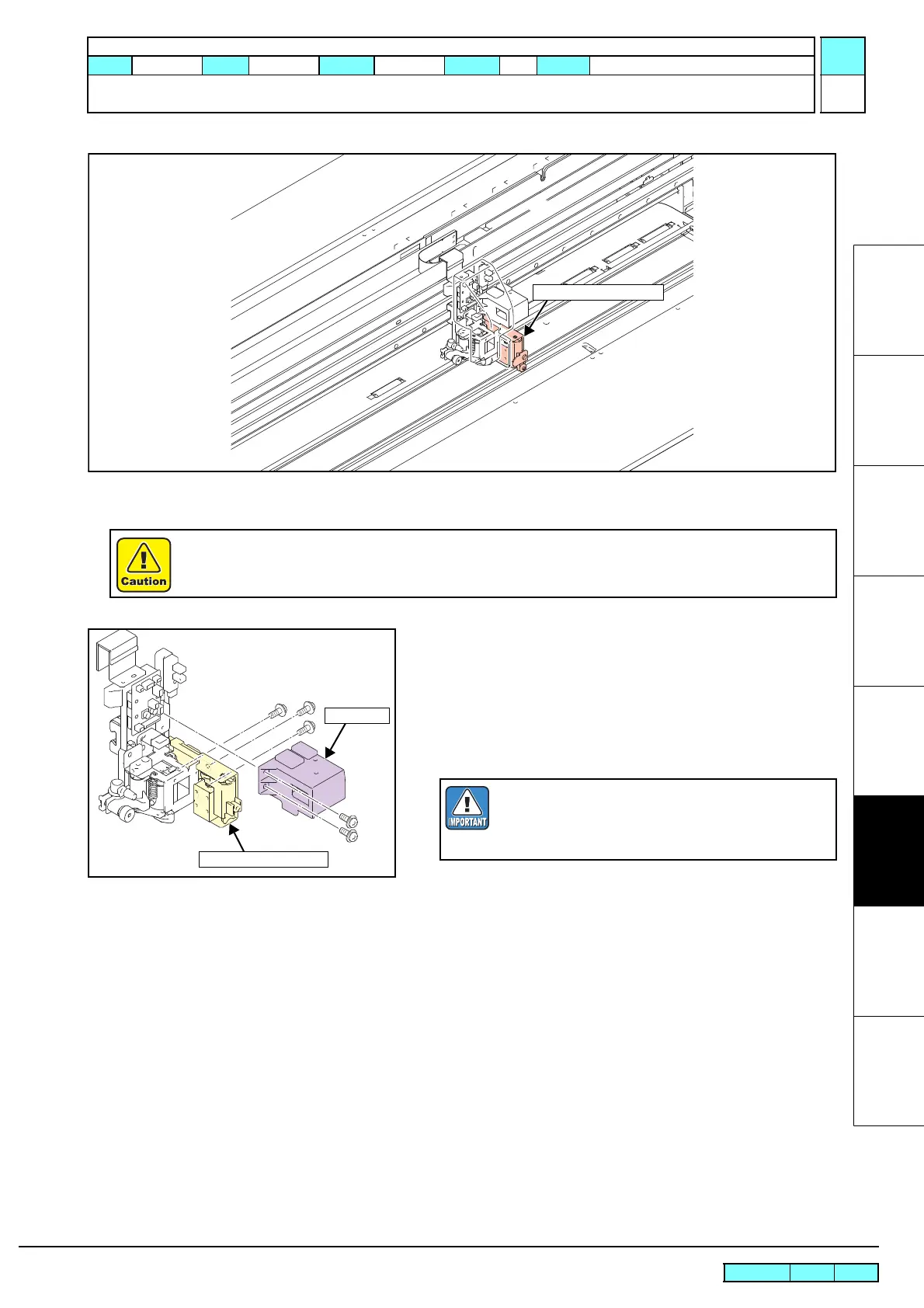

1. Remove the following covers.
• CY Cover F
• Head Cover
2. Move the cutting carriage on the platen.
3. Remove the S-guide and then the auto cutter assy.
4. Reverse the disassembly procedure for reassembly.
Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.
Auto Cutter Assy
S guide
Auto Cutter Assy
Take care not to change the orientation of the hook of
the whirl-stop SP.
Changing the orientation will change the pen
pressure and the pen landing values.
