Maintenance Manual > Workflow > Cut Head Carriage > Replacement of the Auto Cutter Assy
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

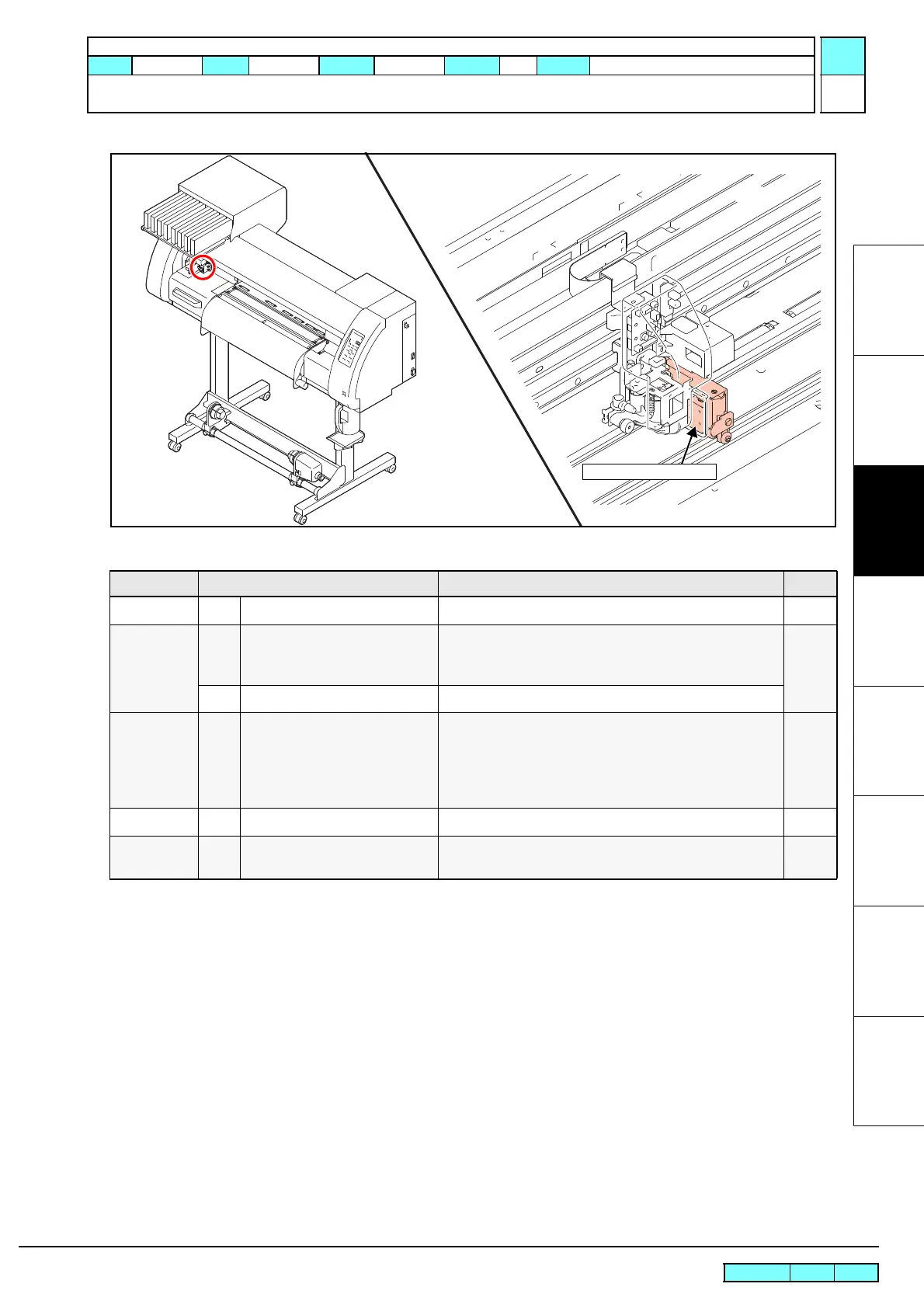

3.2.2 Replacement of the Auto Cutter Assy
List of replacement procedures
Item Work operation Description Ref.
Covers
1.
Removal of covers, etc. Remove the C head cover, CY cover F and S guide. 6.1.1
Auto Cutter
Assy
2.
Removal of the auto cutter assy. Be sure not to change the direction of the hook of the baffle
SP. If its direction is changed, the pen pressure and landing
are also changed.
6.3.1
3.
Mounting of the auto cutter assy. Mount the auto cutter assy.
Adjustment
4.
Adjustment of the mounting
location of the cutter
Hold down the clamp lever and adjust the mounting location
so that the distance between the auto cutter assy and the
platen is set at 8.8 mm.
(If necessary, check to see if the magnet catcher and magnet
BKT are in contact with each other.)
4.3.2
Check
5.
Check the performance. Check the cutting position.
Covers
6.
Mounting of the covers Mount the covers that have been removed.
Install the S guide while pushing it to the left.
6.1.1
Auto Cutter Assy
