User Manual minCam360compact
®
®minCam GmbH, Bundesstraße 9, 87538 Fischen, Germany info@mincam.de
Version: March 2020, according to the technical state of the art at the time of publication, subject to alterations.

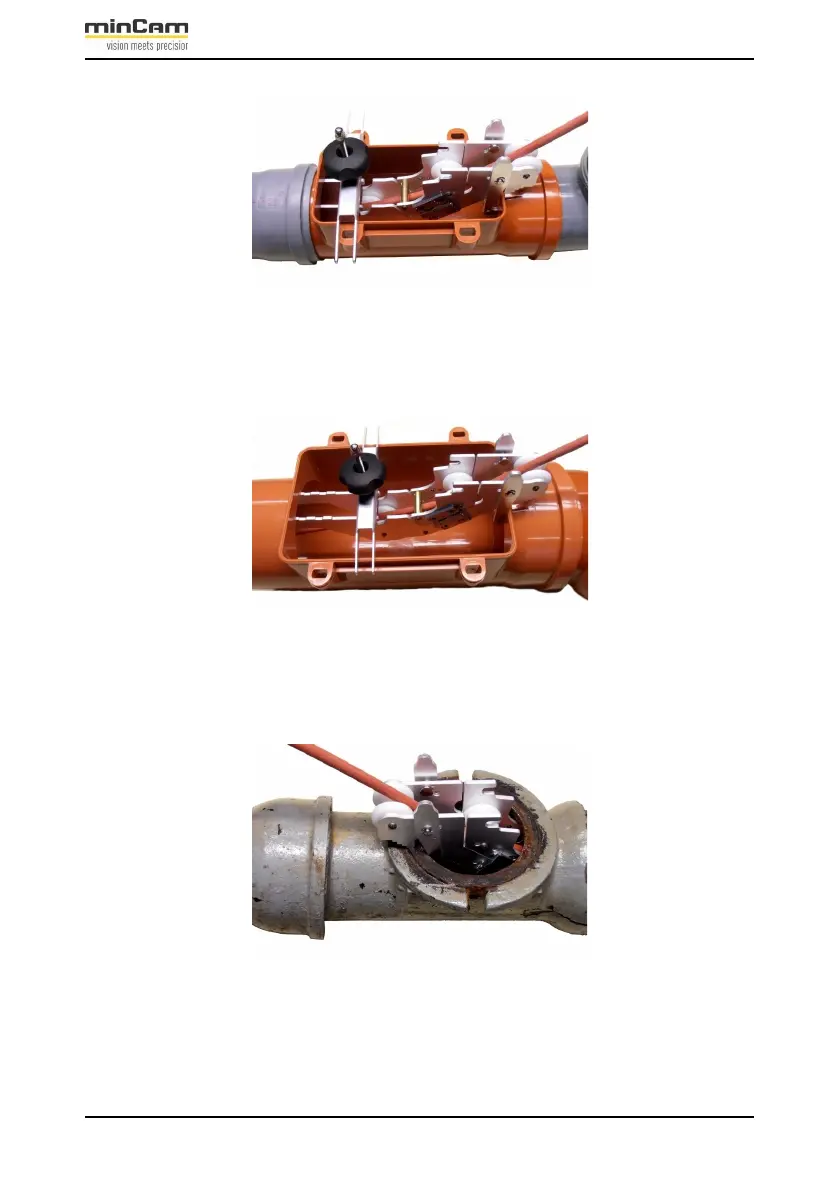

Figure 2.21: PVC-U inspection opening DN 110 x 3.2 in accordance with DIN EN 1401
Figure 2.22: PVC-U inspection opening DN160 x 4.0 in accordance with DIN EN 1401
Figure 2.23: Inspection opening made of cast iron pipes DN100 (old design,
circular opening, Ø 95mm)
