BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual 7-19
ITEM No. Description Qty FRU Part No.
13 MK power button (P+R) 1 043-007956-01
14 Conductive cloth pad 0.08m /
15 Earth plate (NLT) 1 042-017398-00*
*: included in No.1 N17-NLT front housing assembly (FRU) (115-044551-00)
7.3.3 N17-Sharp Front Housing

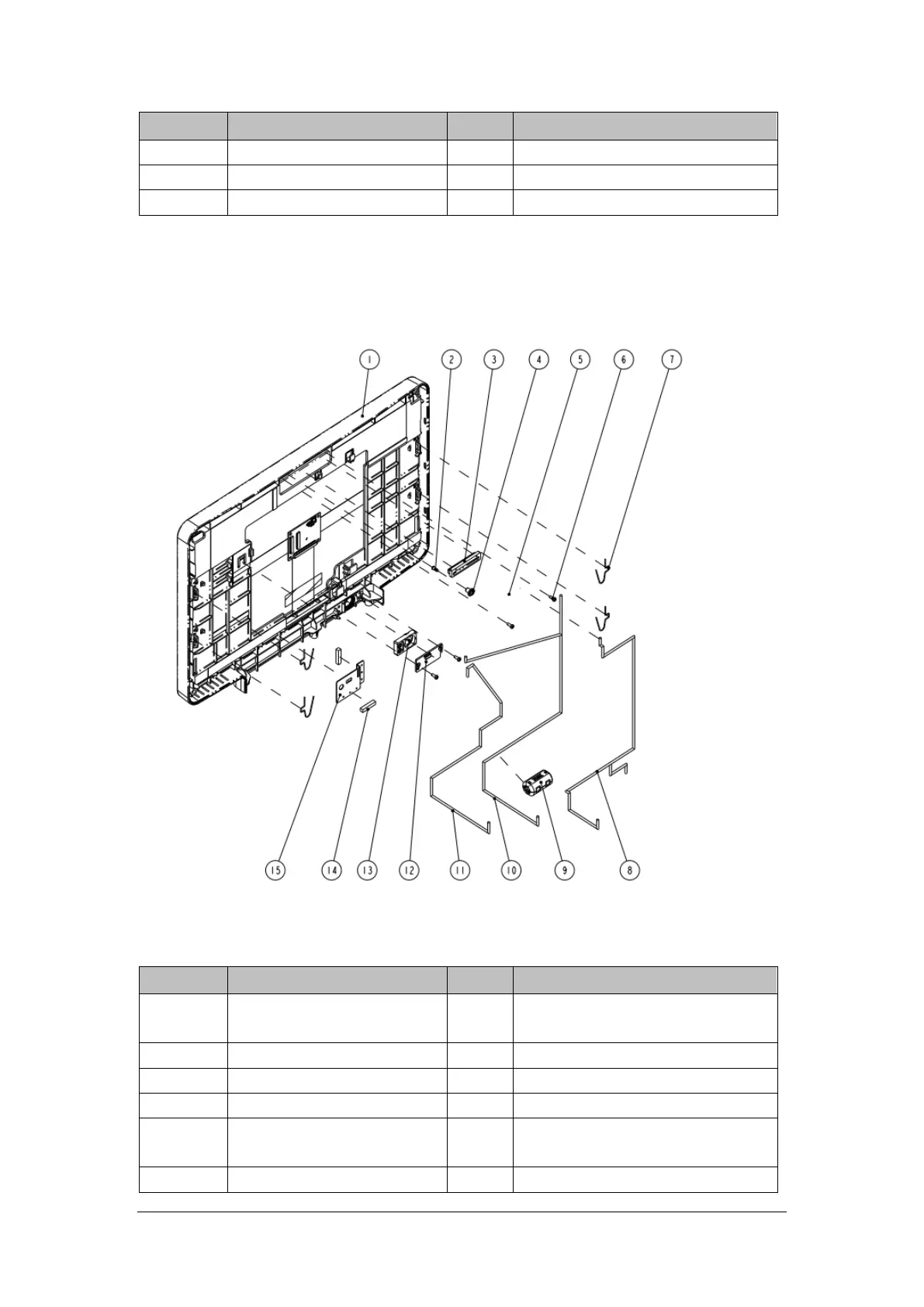

7.3.3.1 Exploded View
7.3.3.2 Parts List
ITEM No. Description Qty FRU Part No.
1
N17-Sharp front housing assembly
(FRU)
1 115-044552-00
2 Light guild pillar 1 043-007582-00
3 MK alarm cap 1 049-001135-00
4 MK hood 1 049-001214-00
5
Alarm LED and Light Sensor Board
PCBA
1 051-002693-00
6 Cross recessed pan head screws, PT 4 /
