6-22 BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual

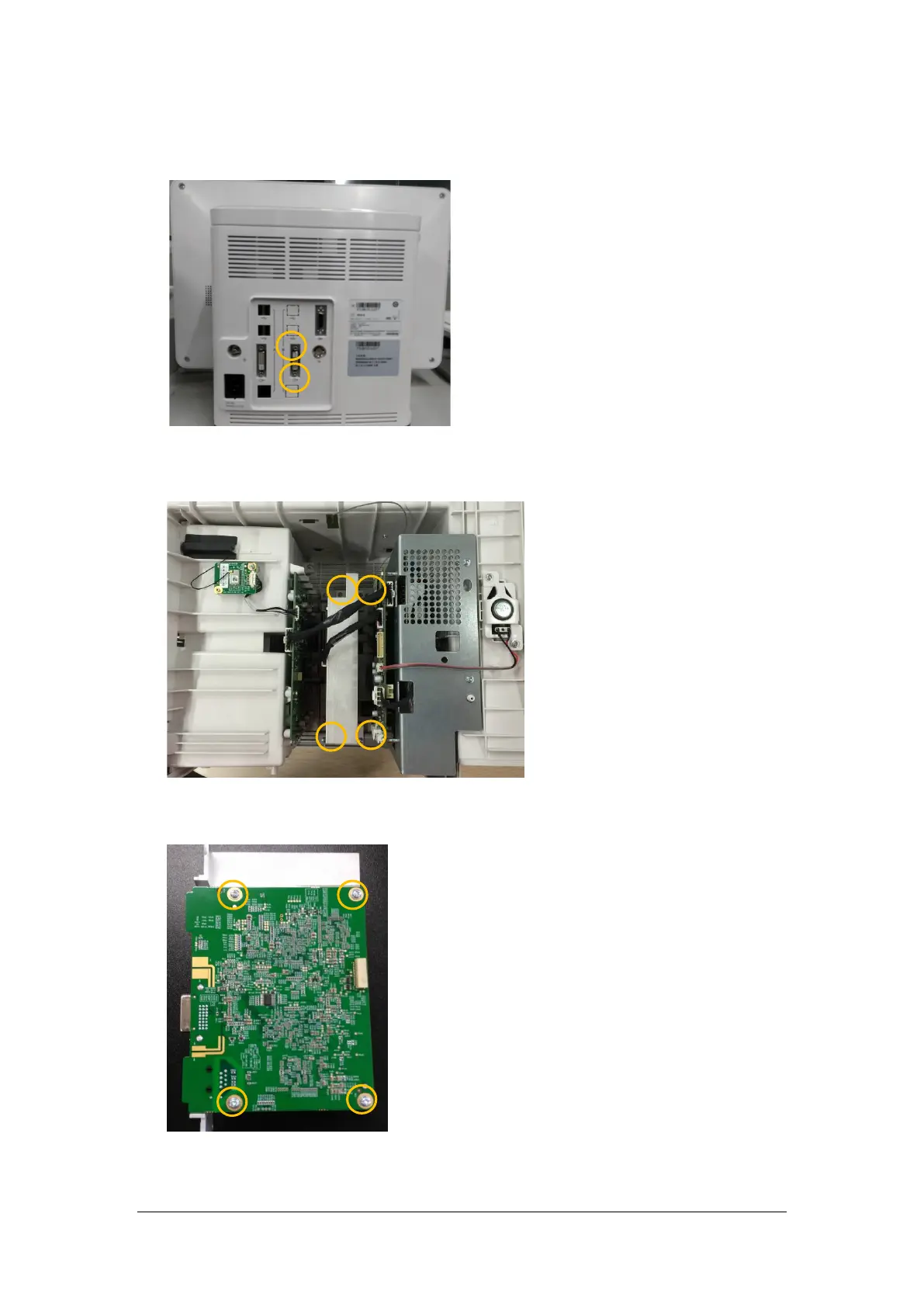

6.5.8 Removing the Independent Display Board Assembly (N17 Series)
1. First unscrew the two DVI stud screws.
2. Remove the independent display board cable and the internal module rack cable. Loosen and
remove the four M3X6 screws, and then remove the independent display board assembly.
3. Loosen and remove the four M3X6 screws, and remove the independent display board.
