6-28 BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual
6.8 Disassembling the MPM Module

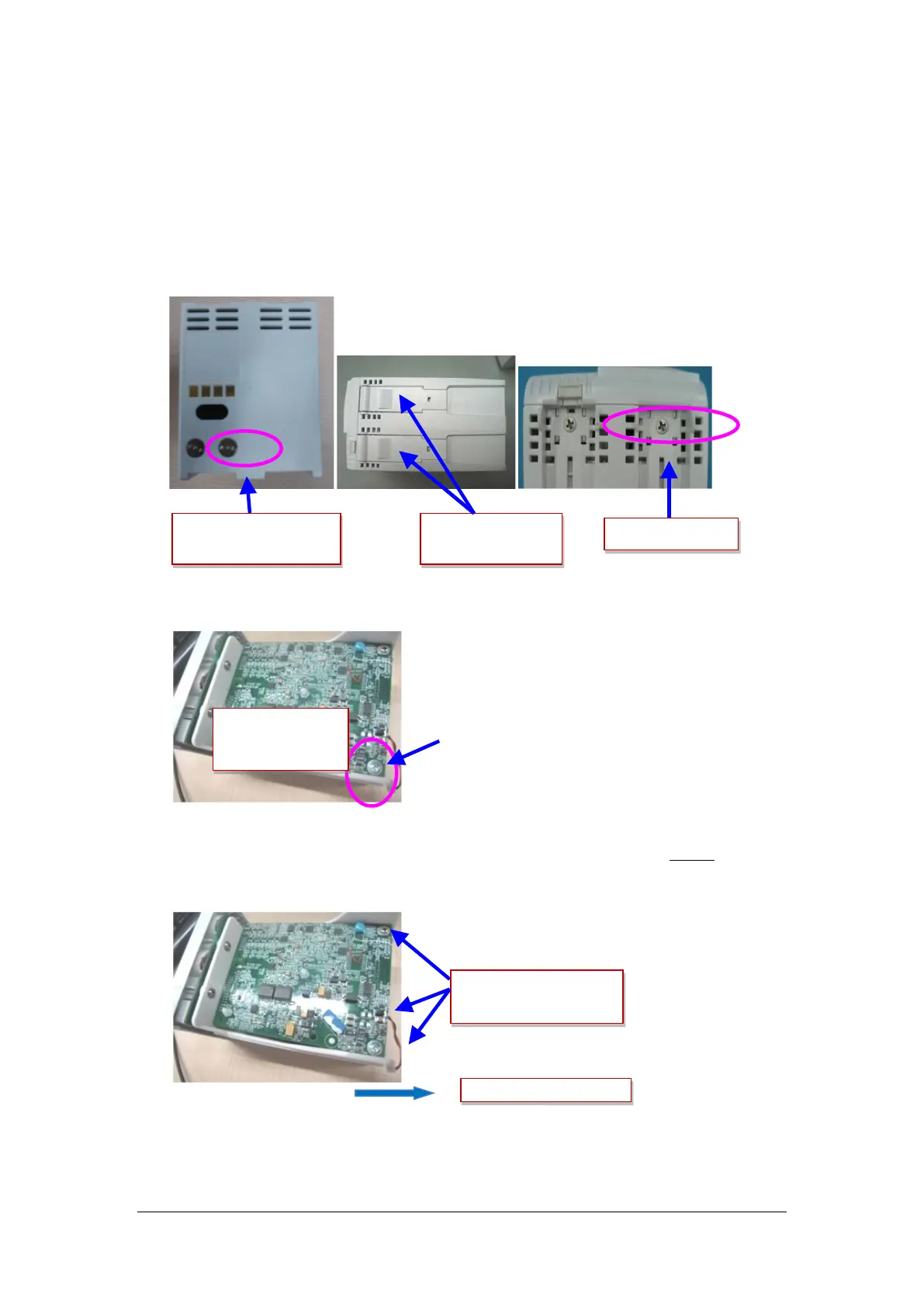

1. Removing the front panel assembly
As shown in the figure, use a contact wrench to remove the screw for the back end terminal of
the module; use a small flat-bladed screwdriver to remove the module retention tabs. Use a
Phillips screwdriver to remove the front panel screw. Then, the front panel of module can be
removed.
As shown in the following figure, loosen and remove the screw between the front panel and the
bracket, and unplug the air tube at the air nozzle. Then the front panel can be removed.
2. Remove the parameter board
As shown in the following figure, loosen and remove the board screws. Remove pull out the pump
and valve cable and NIBP air tube. Then, the parameter board can be removed.
Remove the
bracket screw
Use a contact wrench to
remove the terminal screw
Remove the module
retention tabs
Remove the screw
Parameter board screws and
cable
Remove along this direction
