BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual 6-27

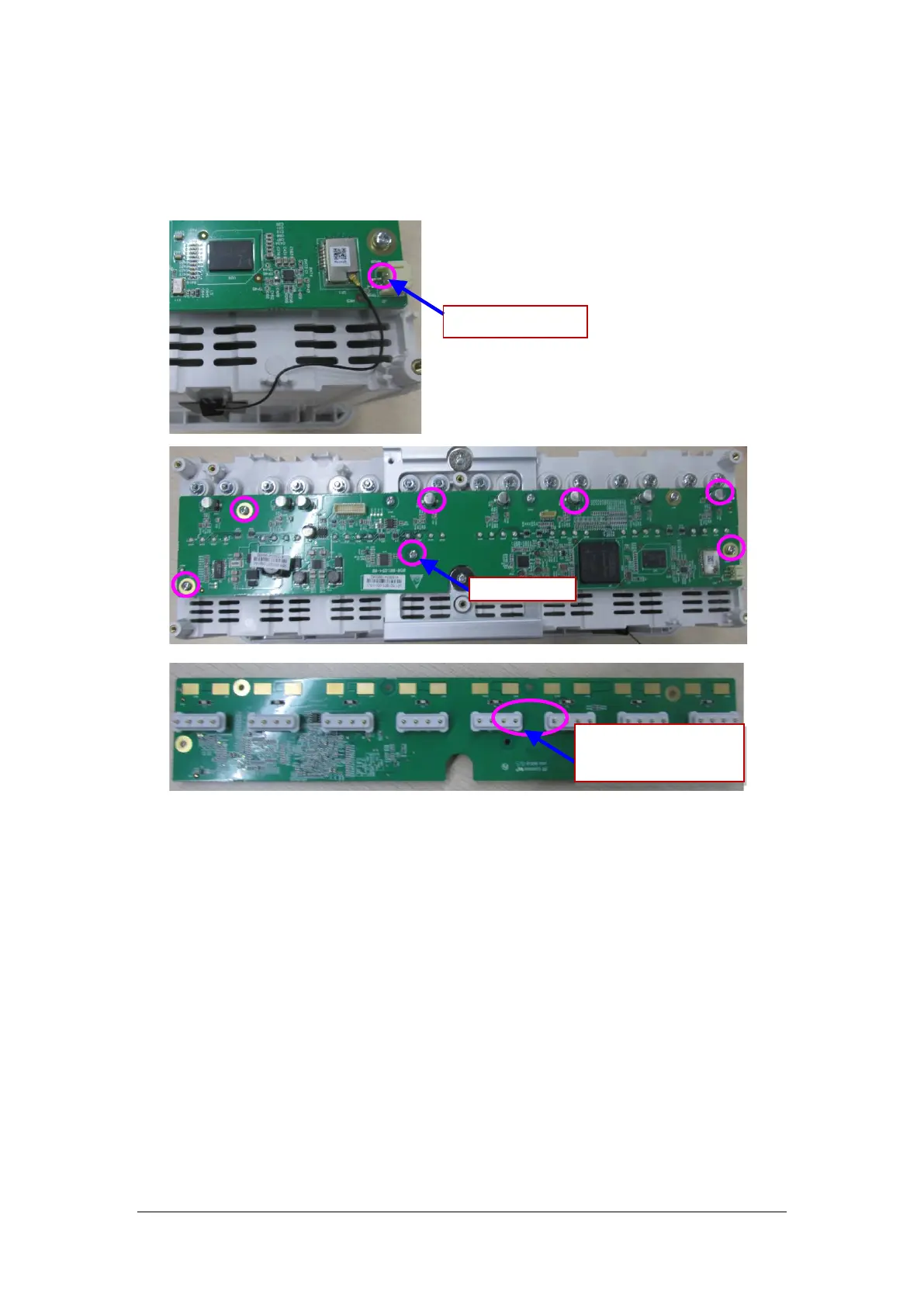

4. Removing the internal module rack COMM board.
Disconnect the cable between the module rack antenna and the internal module rack COMM board.
Loosen and remove the seven M3X8 cross recessed pan head screws on the internal module rack
COMM board, and remove the eight POGO PIN silicon cases from the module rack.
Module rack antenna
M3X6 screw
POGO PIN silicon cases of
module rack
