BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual 6-15
 N15N17

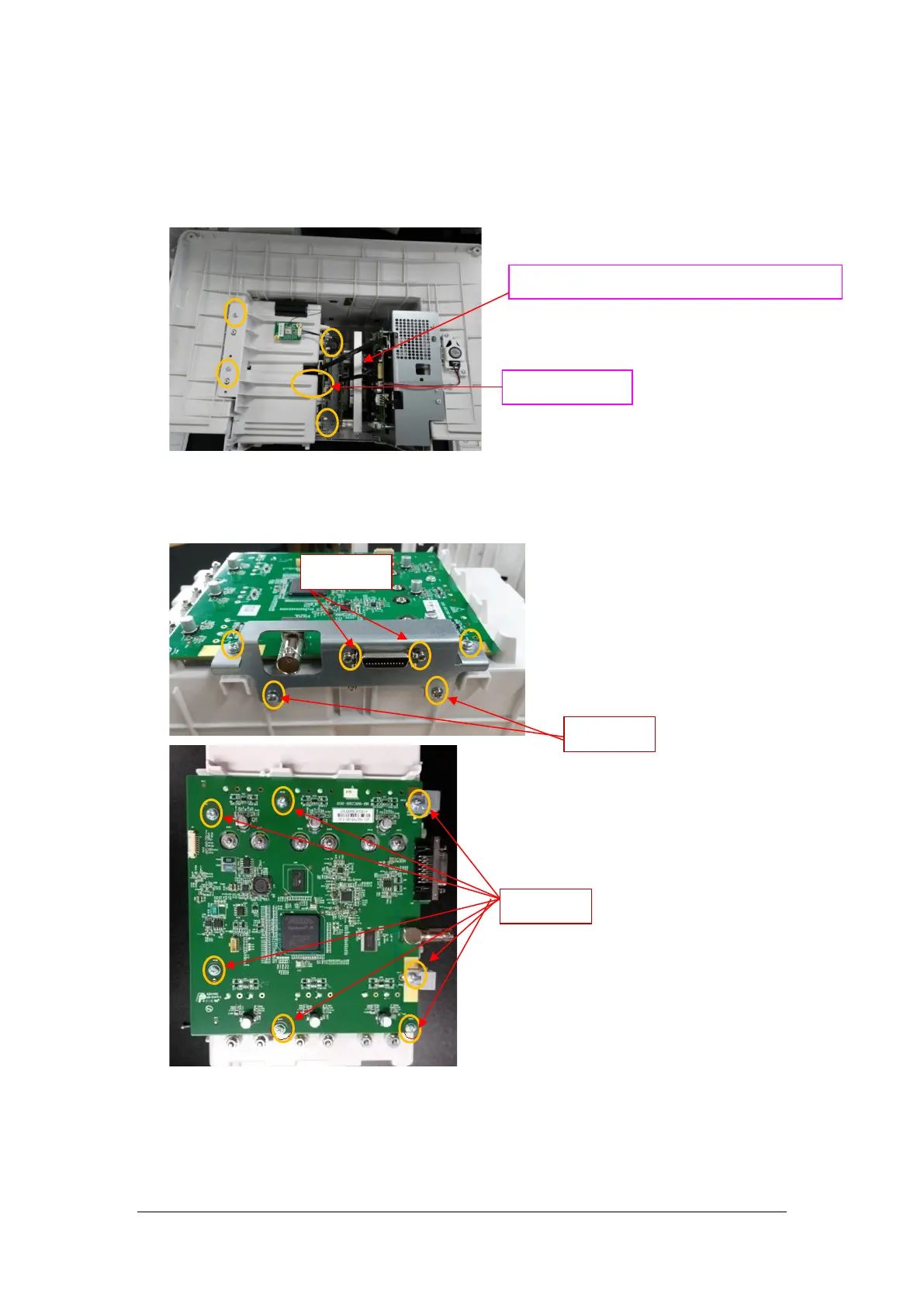

1. First remove the cable of internal module rack COMM board; unscrew the four M3X6 screws
according to the positions shown below, and loosen one captive screw; force upward to remove the
module rack assembly as indicated in the figure.
2. Place the face of the removed module rack assembly board up. First unscrew the two M2.5X6 screws
on the SMR interface, the two PT3X8 screws, and the seven M3X6 screws in turn, and then remove
the internal module rack COMM board.
One captive screw
Cable of internal module rack COMM board
PT3X8
M2.5X
M3X6
