Understanding the CAL 8000 System
2-7

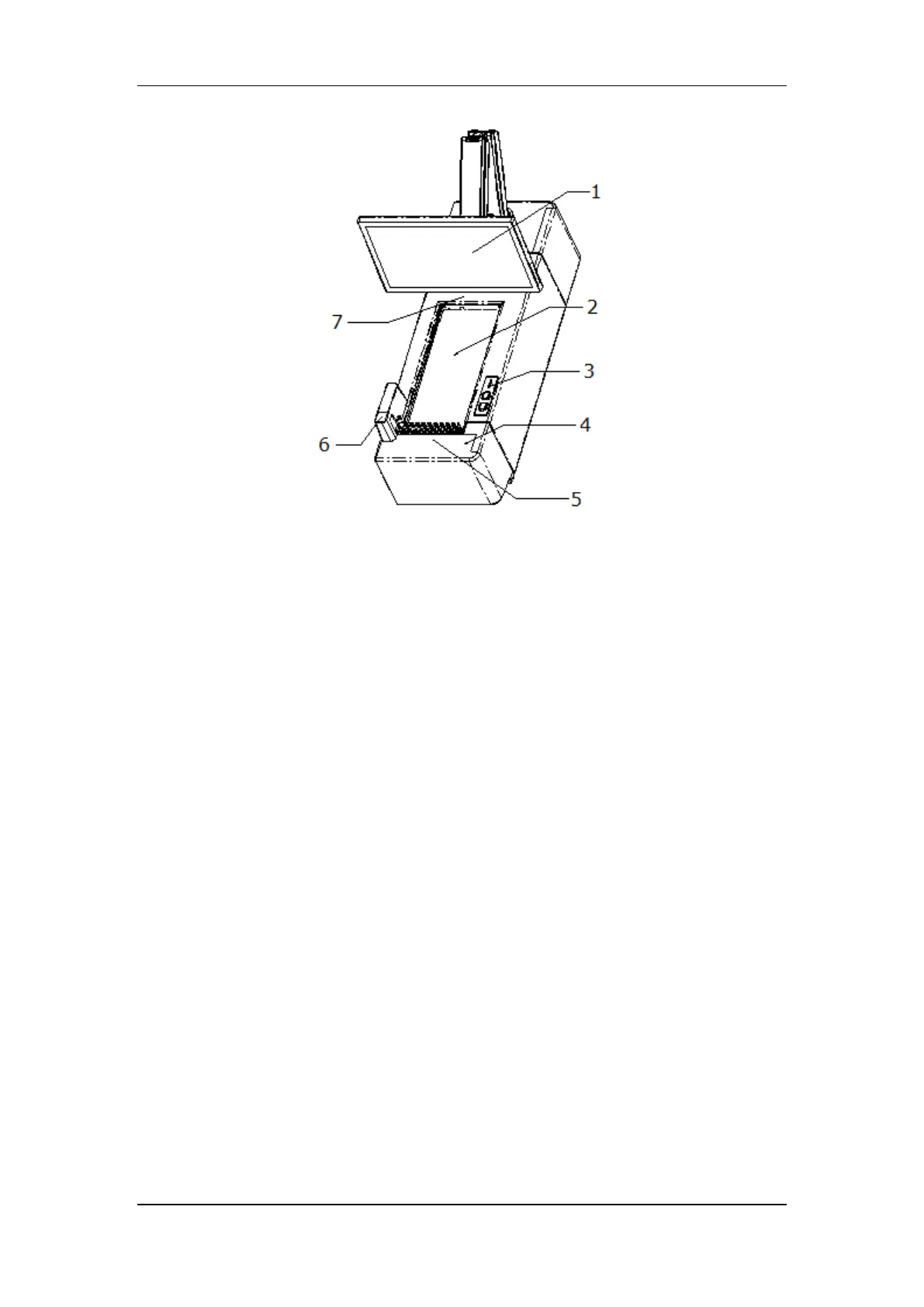

Figure 2-6Loading Assembly
1 --- Display unit
2 --- Loading station unit
3 --- Key and indicator unit
4 --- Direction change unit
5 --- Pushing unit
6 --- Barcode scanner unit
7 --- Loading unit
 Key and indicator unit
The key and indicator unit consists of two keys and an indicator, the two keys are for station
resetting/mute and pushing.
