Understanding the CAL 8000 System
2-17

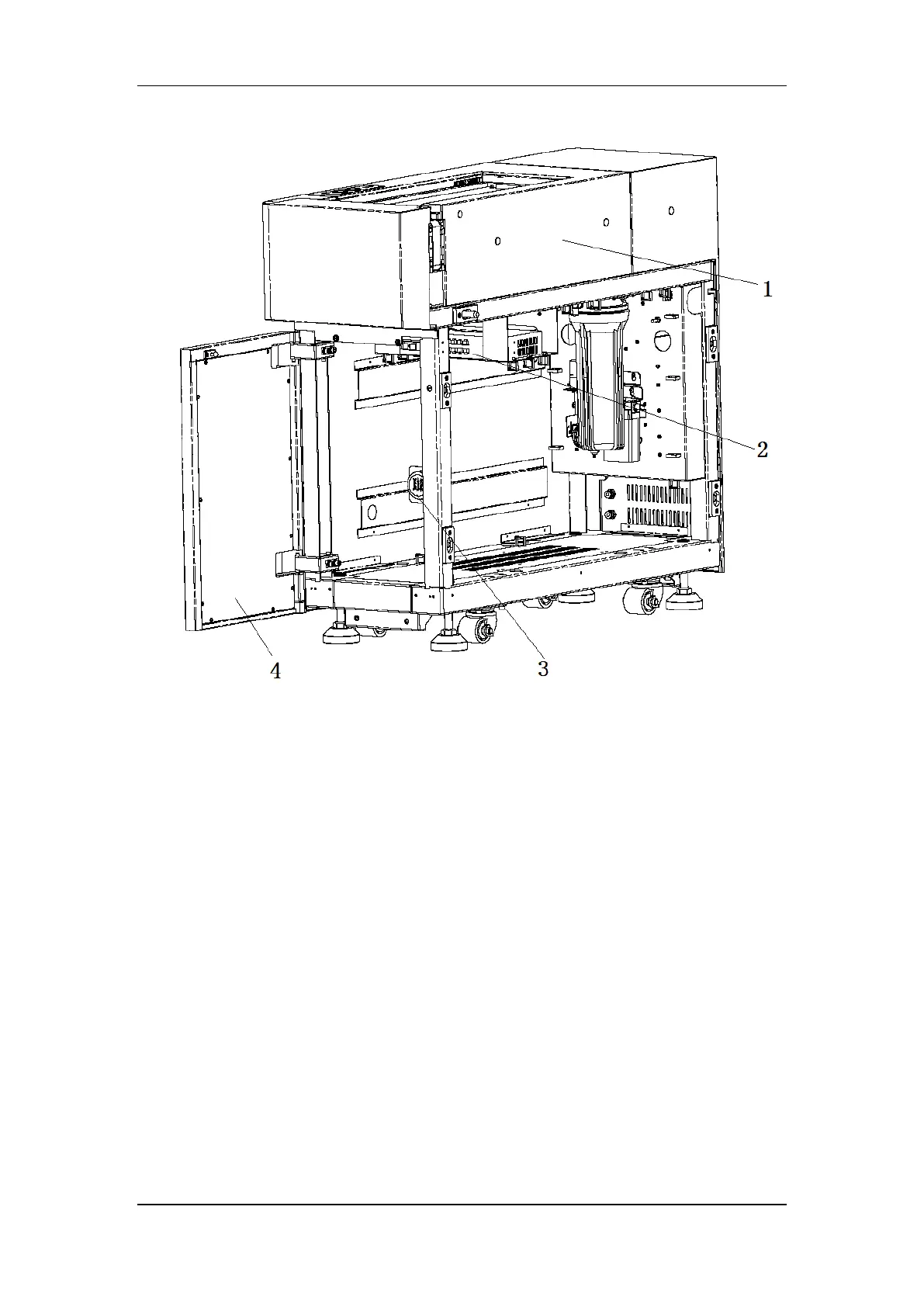

Figure 2-20 Unloading Module
1 --- Unloading assembly
2 --- Exchanger
3 --- Pressure gauge
4 --- Cabinet door
The unloading assembly is the exit of the sample processing line, the analyzed tube racks
stays here temporarily until you remove them. It can accommodate 20 tube racks at most.
The unloading assembly consists of receiving unit, unloading unit, boards unit, power unit,
key and indicator unit and ports unit, as shown in the following figure.
