Understanding the CAL 8000 System
2-22

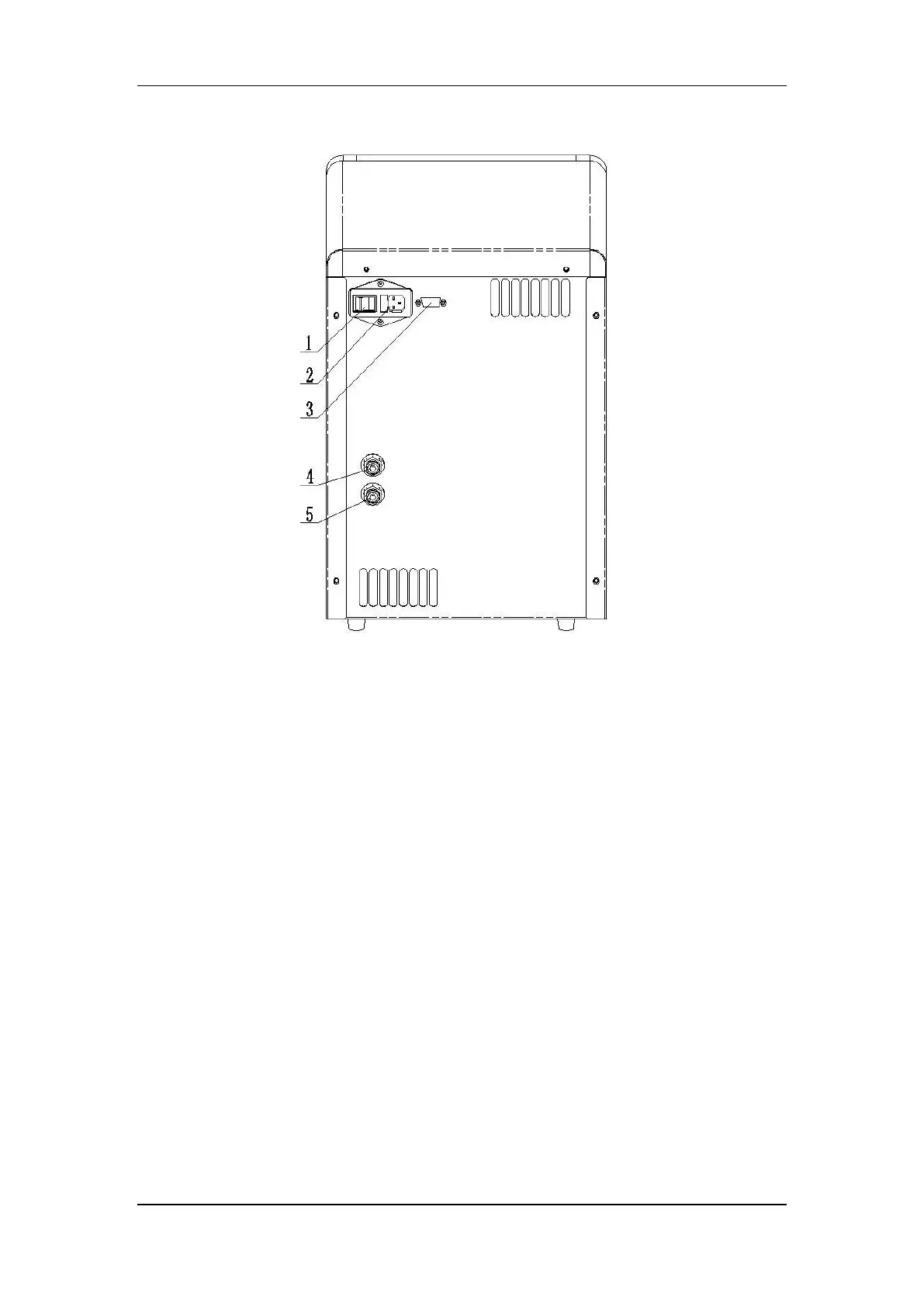

Figure 2-25 Back of the Pneumatic Unit
1 --- Power switch
2 --- Power socket
3 --- Control port
4 --- Vacuum port
5 --- Pressure port
Tube Rack
See 4.4.1Specifications of Applicable Tubes and Tube Racks for tube rack specifications.
PC
Display
Wires (power cords, network cords)
