Mindray DP-50T User Manual

12-20 Probes and Biopsy

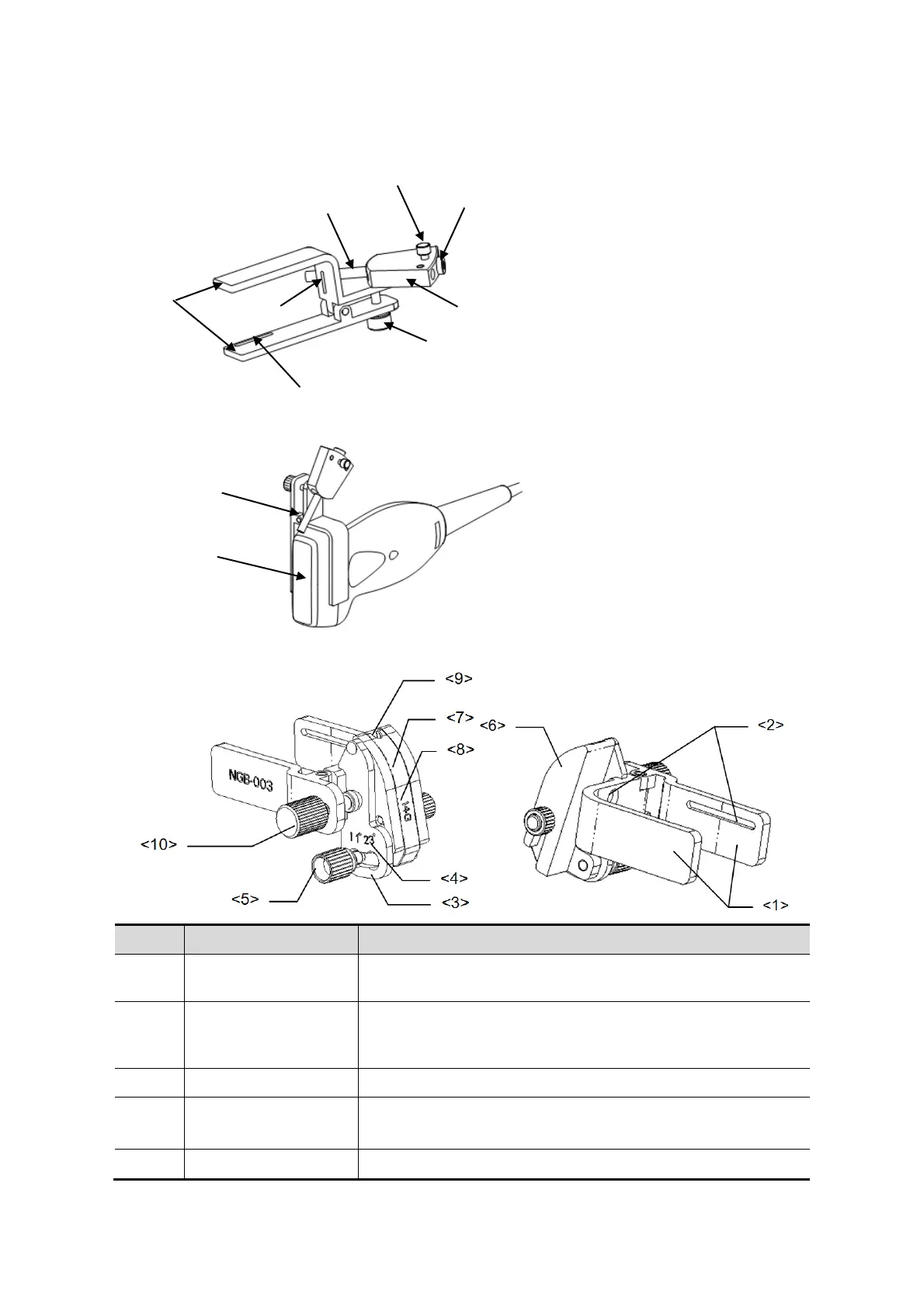

 NGB-002
 NGB-003 (Metal/needle detachable)
No.
Name
Description
<1>
Clamp of needle-
guided bracket
Used for installing the needle-guided bracket on the
transducer
<2>
Groove of the
needle-guided
bracket
Matches with the tab of the transducer
<3> Angle adjusting base There are 3 types of angles available to be adjusted
<4>
Angle shift sign(11°,
23°）
Matched with the biopsy angle(11°, 23°）
<5>
Angle pinch nut
Used for fixing the angle lock at a chosen angle
Locating groove
Needle guide
Needle guide rack
Clamping knob
of the needle guide
Needle guide hole
Grip knob
Locating pit
Clamp
Transducer
Needle-guided
bracket
