Probes and Biopsy 12-21
No.
Name
Description
<6> Angle block
Used for determining the angle of the biopsy; different
specifications of blocks can be used
<7> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy needles
<8>
Specification of
guiding block (14G
Matched with the corresponding biopsy needle (14G
<9> Needle guide hole Used for installing the biopsy needle
<10>
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the
transducer

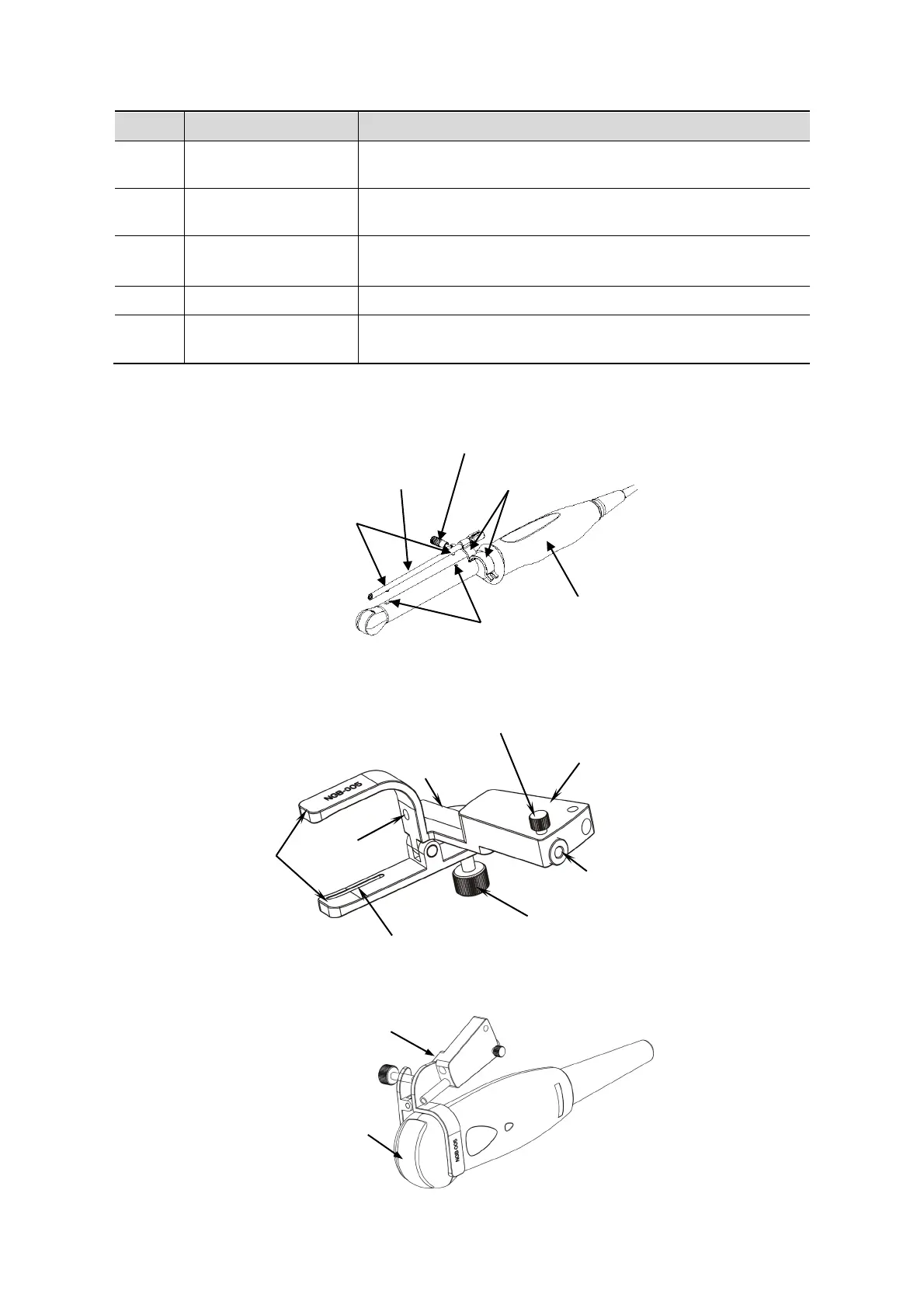

NGB-004
NGB-005
Locating groove
Transducer
Needle guide
Locating bulge
Locking nut
Retaining clamp
Clamp
Locating
groove
Needle guide rack
Clamping knob
of the needle guide
Needle guide hole
Grip knob
Locating pit
Needle guide
Needle-guided
bracket
Transducer
